Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Door Lock Control Switch
>>
Right
Right

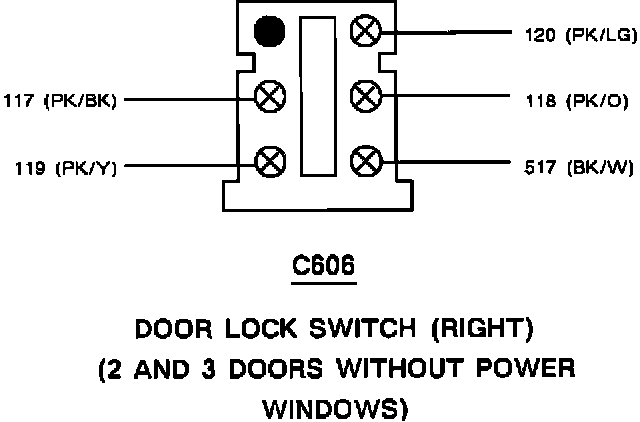

Door Lock Switch (Right) (2 And 3 Doors Without Power Windows):
