3 Door

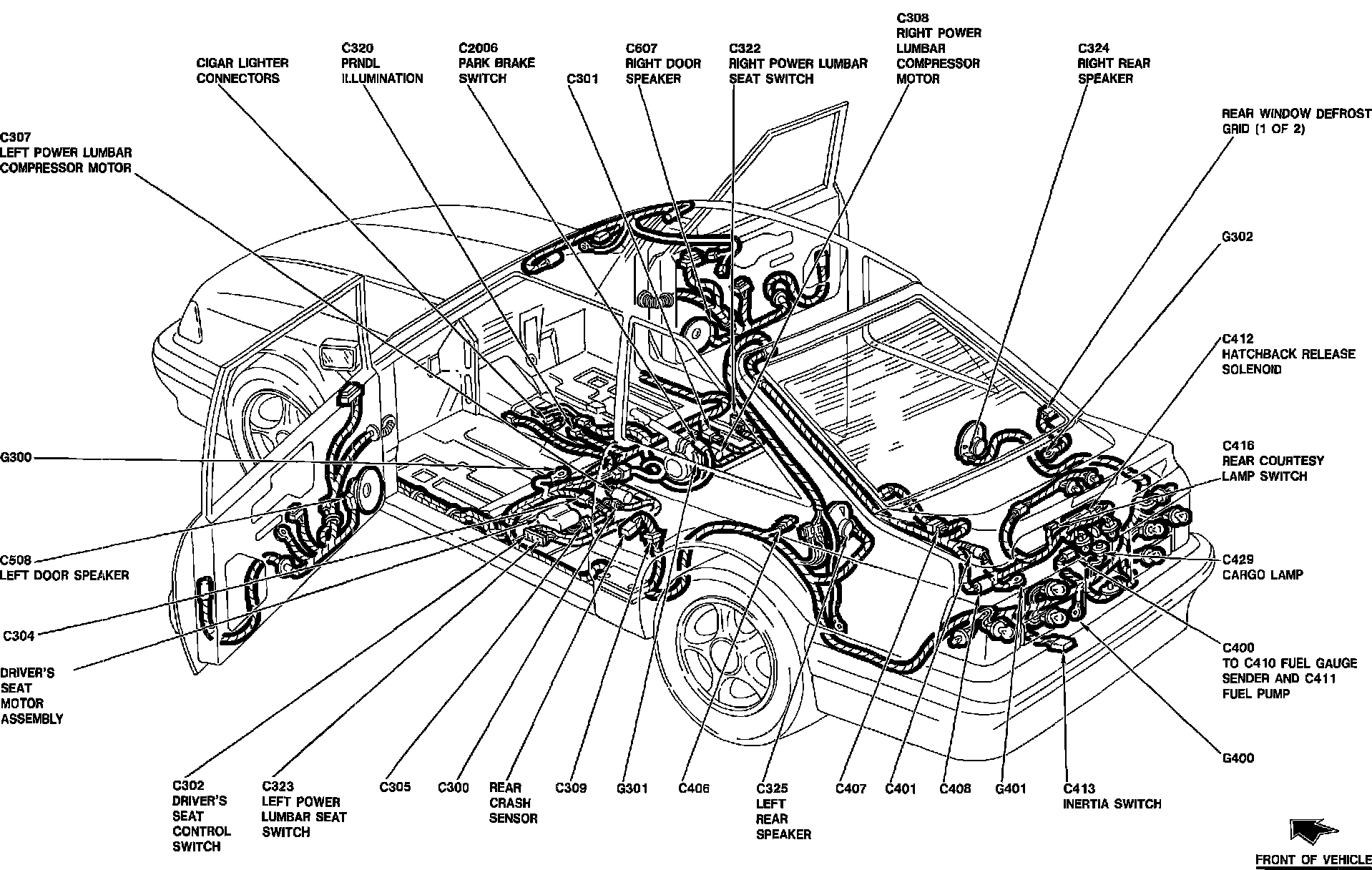

Component Location:

CARGO LAMP
CIGAR LIGHTER
CRASH SENSOR
COURTESY LAMP SWITCH
DOOR SPEAKER
DRIVER'S SEAT CONTROL SWITCH
DRIVER'S SEAT MOTOR ASSEMBLY
FUEL GAUGE SENDER
FUEL PUMP
HATCHBACK RELEASE SOLENOID
INERTIA SWITCH
PARK BRAKE SWITCH
POWER LUMBAR COMPRESSOR MOTOR
POWER LUMBAR SEAT SWITCH
PRNDL ILLUMINATION
REAR SPEAKER
REAR WINDOW DEFROST GRID

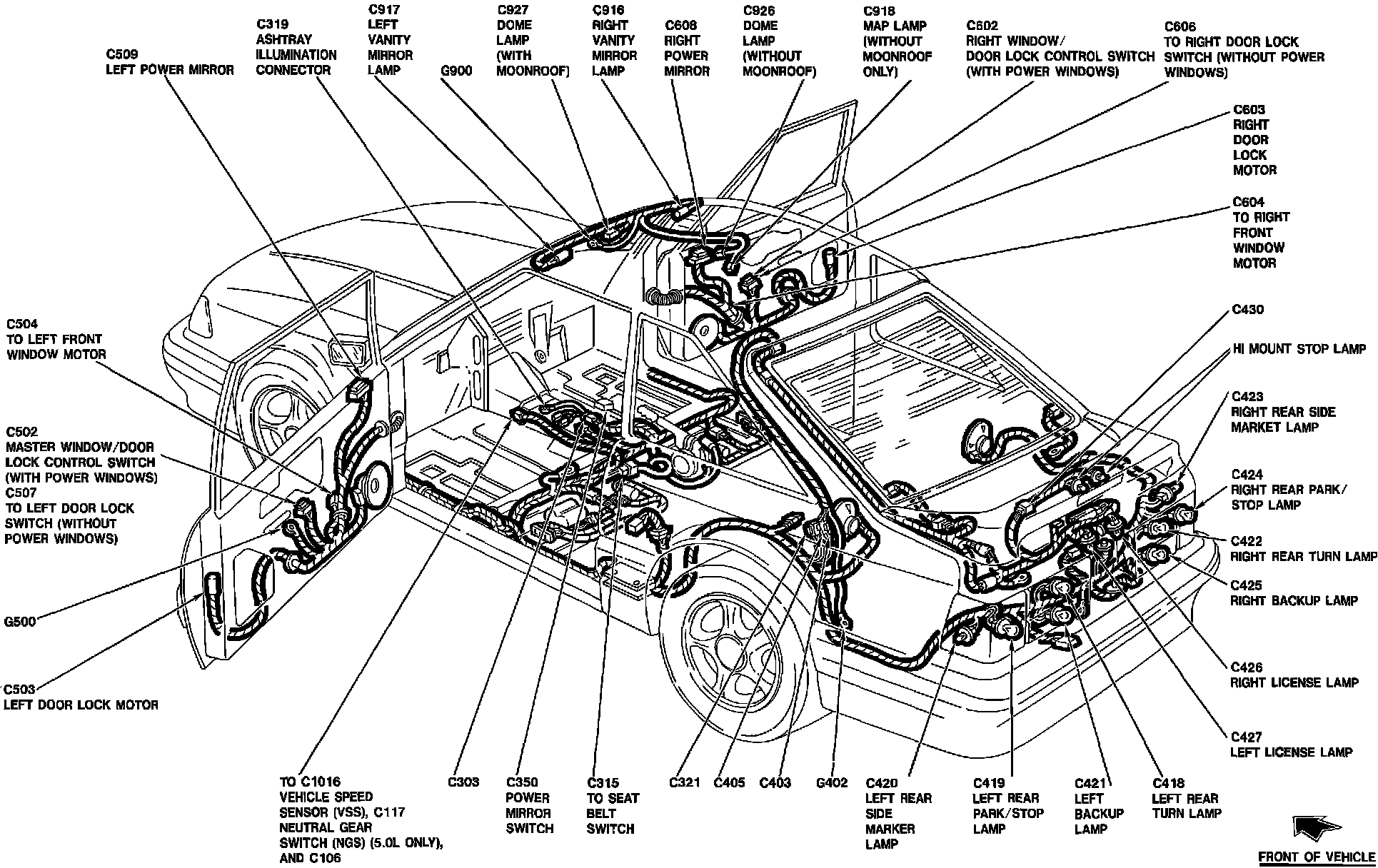

Component Location:

ASHTRAY ILLUMINATION CONNECTOR
BACKUP LAMP
DOOR LOCK MOTOR
DOOR LOCK SWITCH
DOME LAMP
FRONT WINDOW MOTOR
HI MOUNT STOP LAMP
LICENSE LAMP
MAP LAMP
NEUTRAL GEAR SWITCH (NGS)
POWER MIRROR
POWER MIRROR SWITCH
REAR PARK/STOP LAMP
REAR SIDE MARKET LAMP
SEAT BELT SWITCH
TURN LAMP
VANITY MIRROR LAMP
VEHICLE SPEED SENSOR (VSS)
WINDOW/DOOR LOCK CONTROL SWITCH
