Ignition Coil: Locations

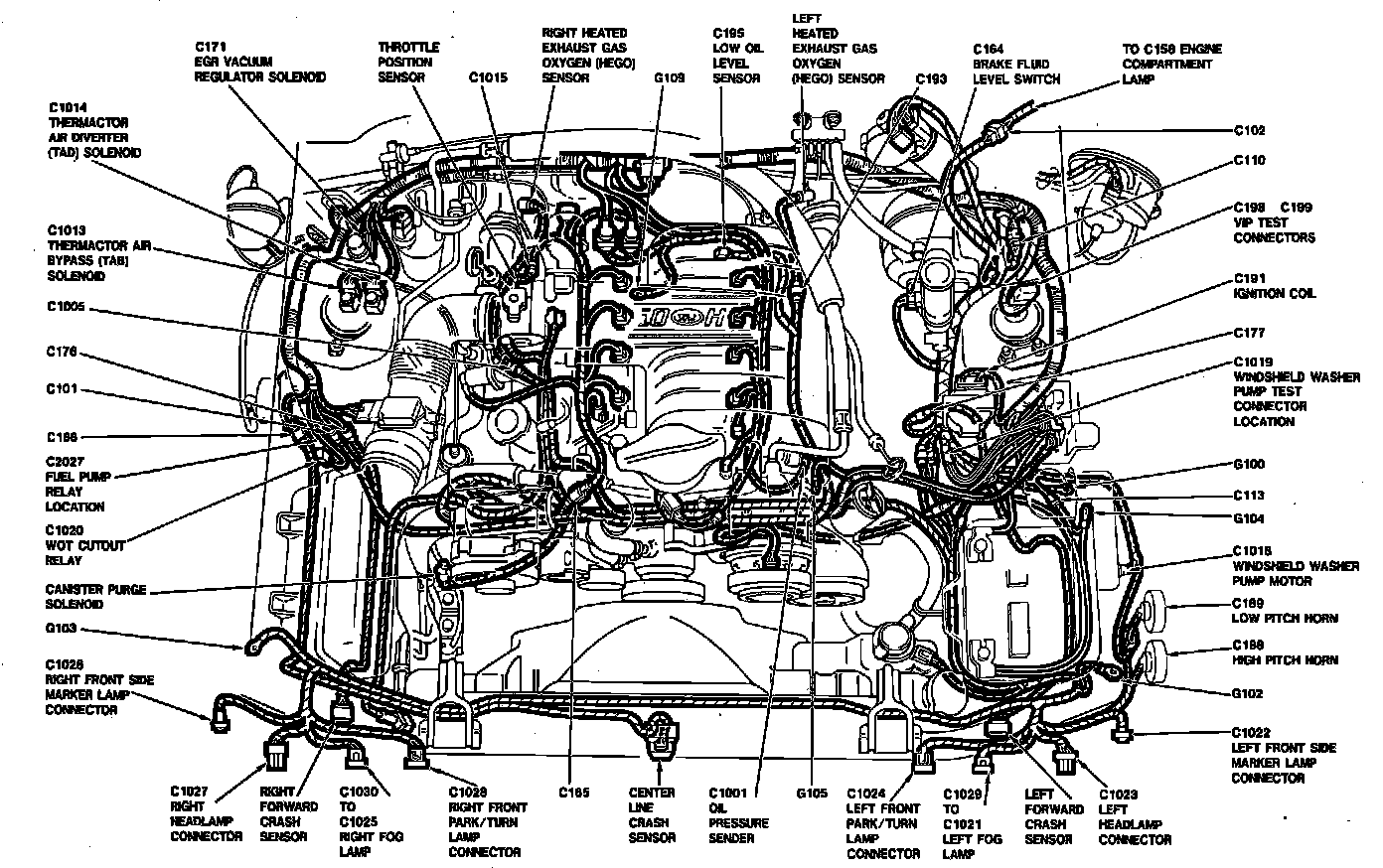

Engine Compartment Components.:
LH Side Of Engine Compartment
Applicable to: 5.0L/V8-302 Engine
