Pinpoint Tests
>>
SCG - Solenoid Controlled By Ground
>>
SCG - Data Chart
SCG - Data Chart

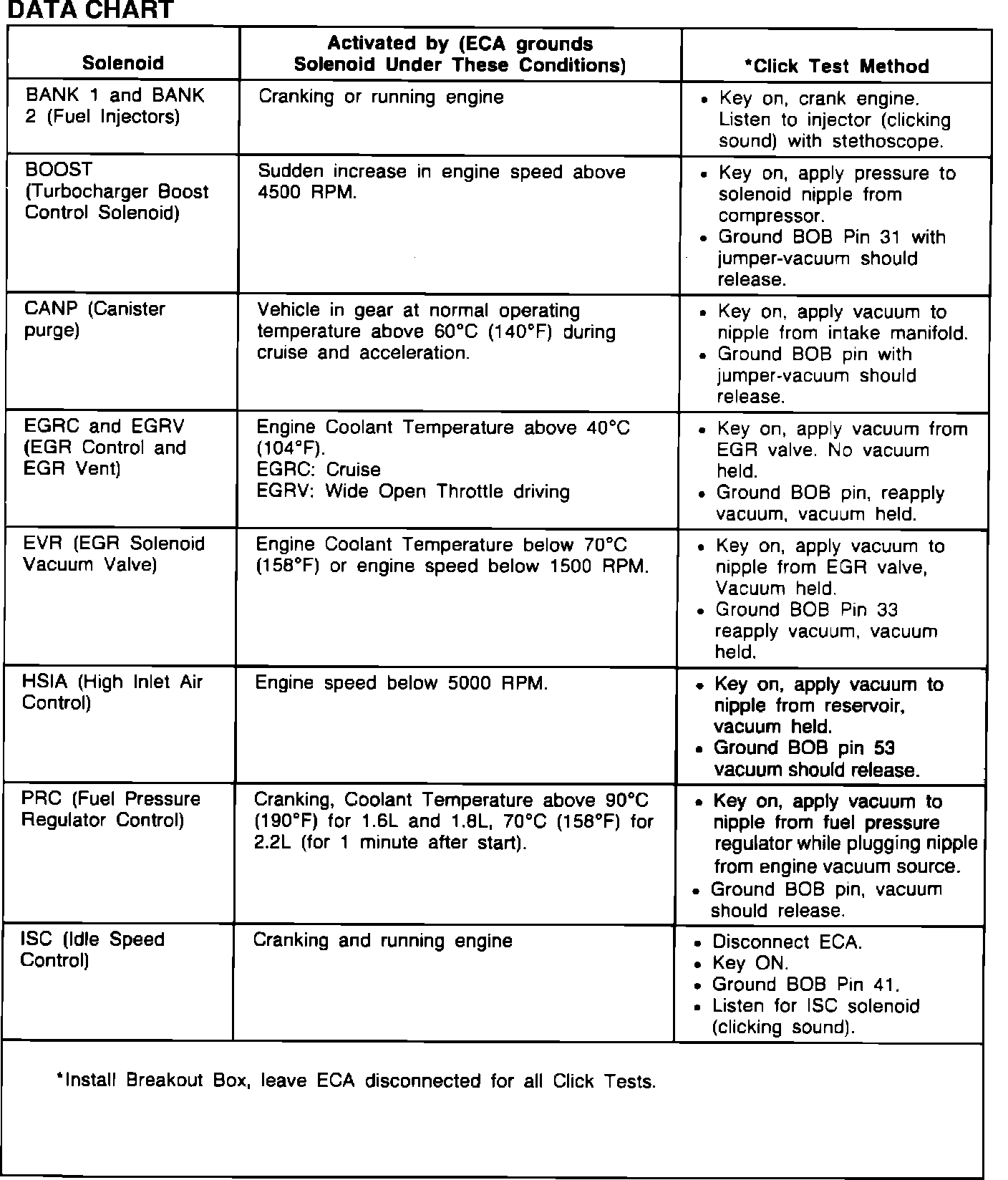

Pinpoint Test SCG Data Chart:
