CID Testing Notes and Test Schematic
CID Testing Notes and Test Schematic

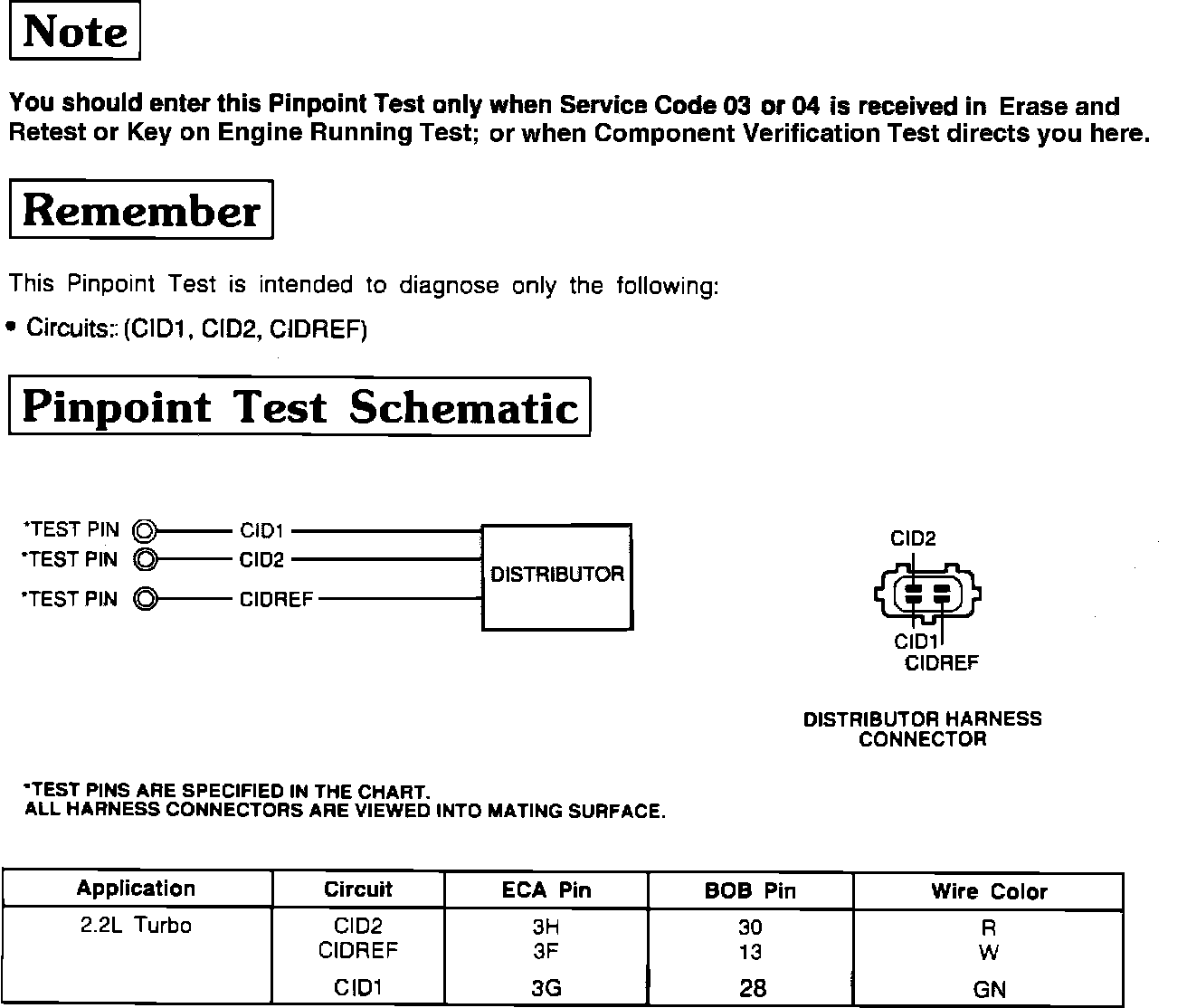

Pinpoint Test CID Testing Notes And Test Schematic:
