ROC - Testing Notes and Schematic

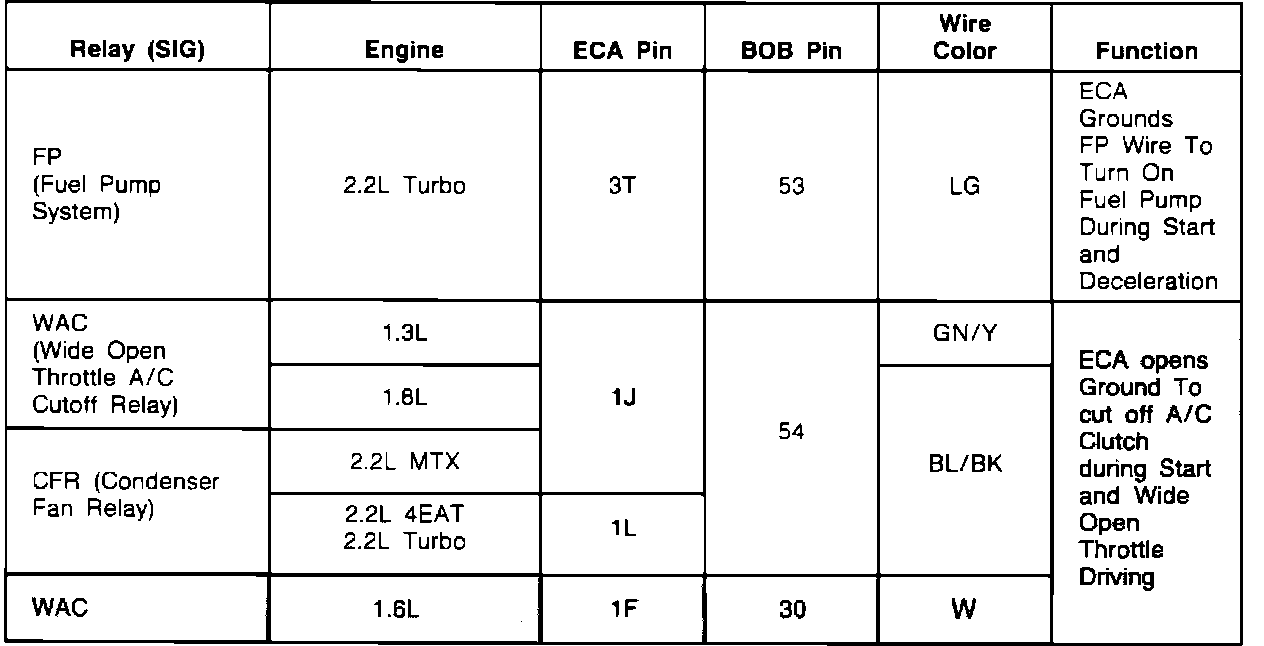

Pinpoint Test ROC Testing Notes And Test Schematic:

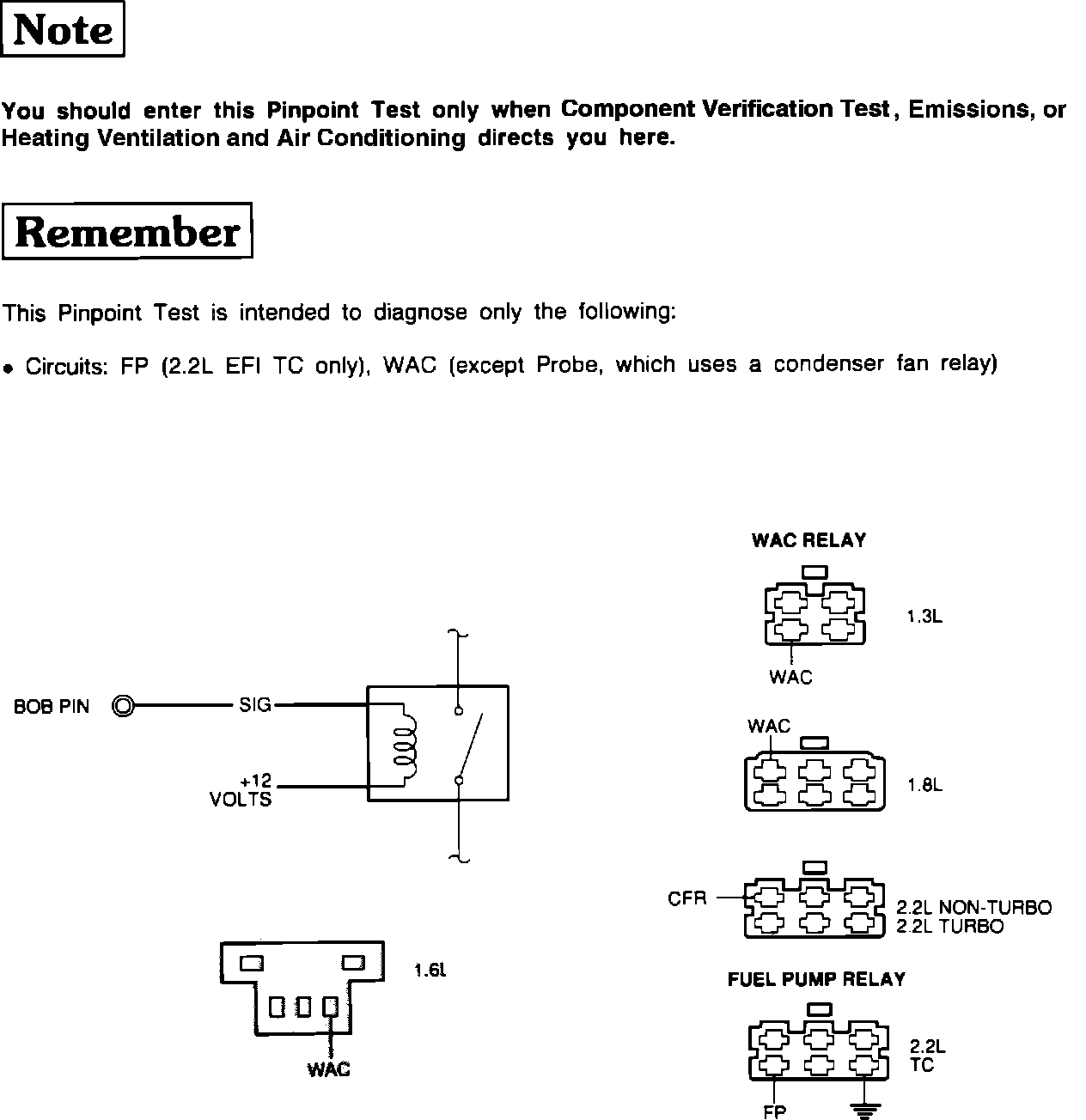

Pinpoint Test ROC Test Schematic:
