VPWR - Testing Notes and Schematic

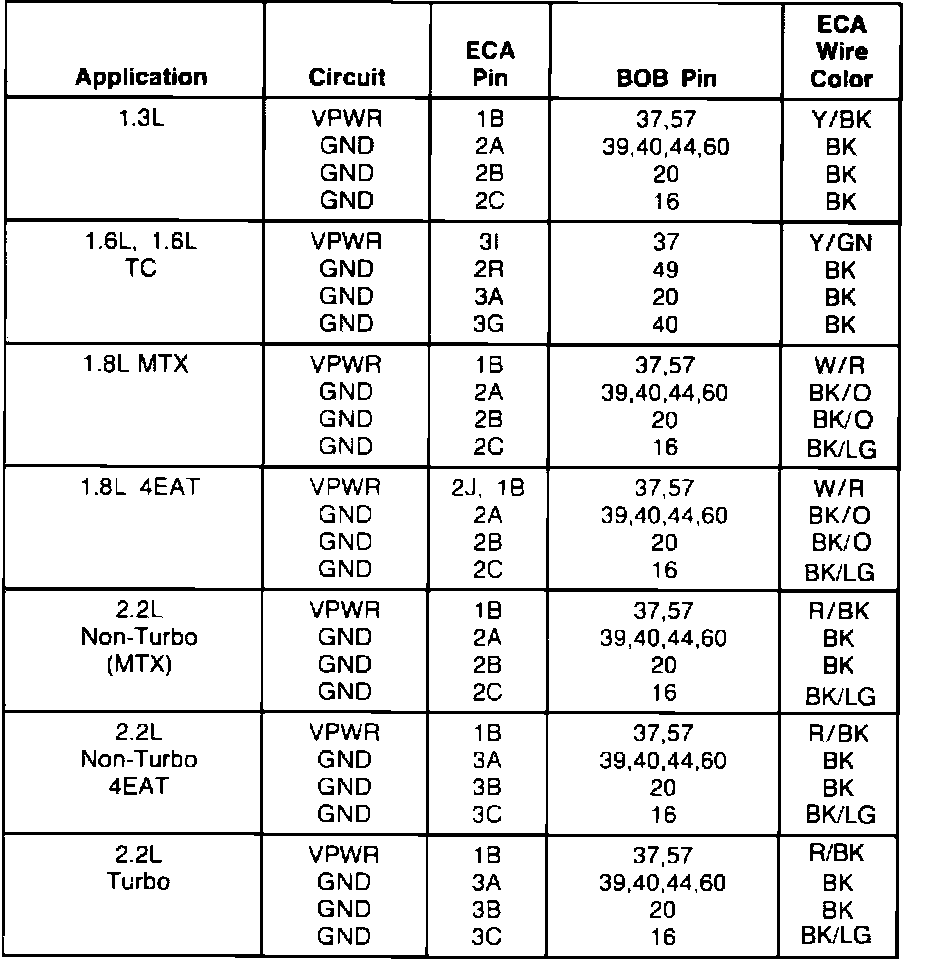

Pinpoint Test VPWR Testing Notes And Test Schematic:

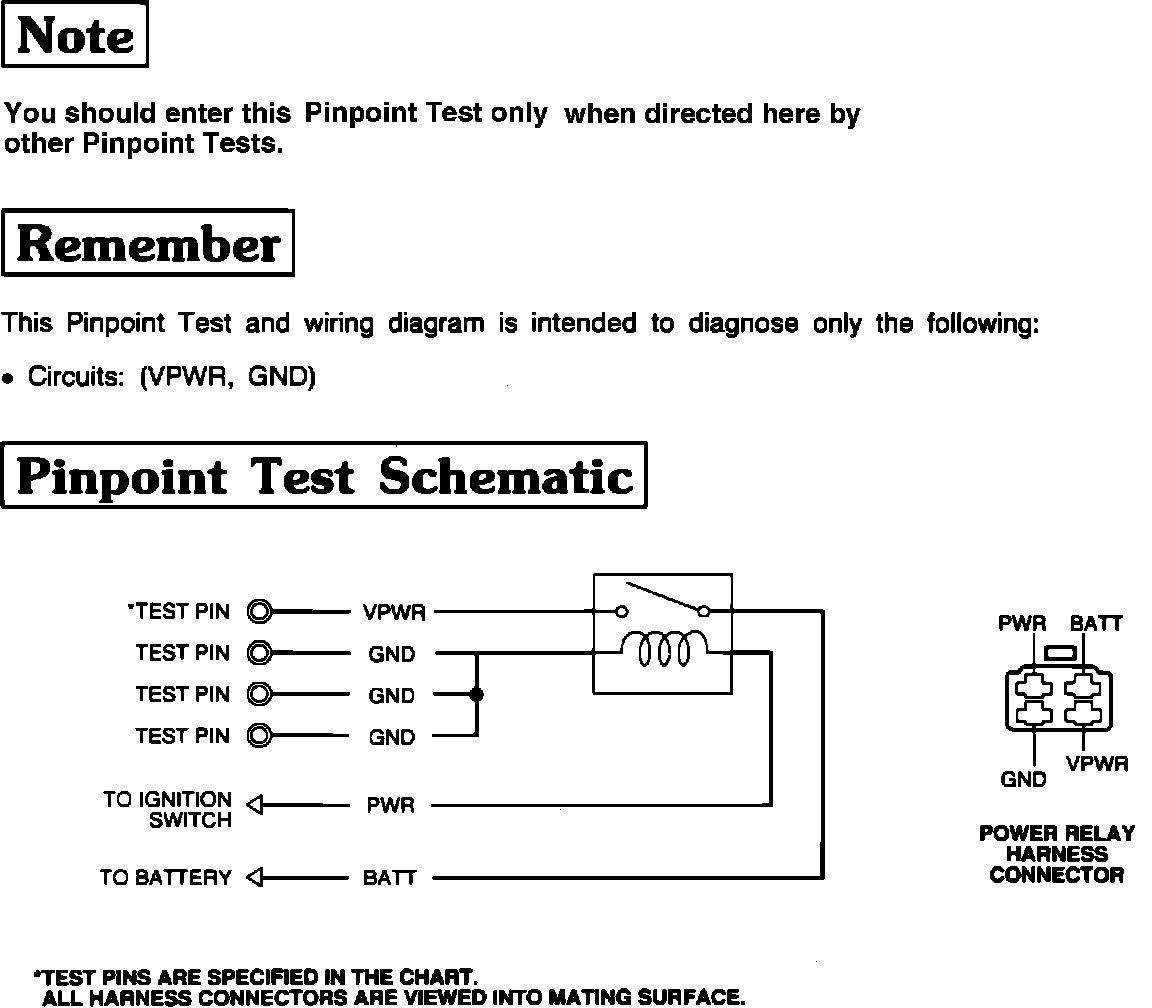

Pinpoint Test VPWR Test Schematic:
