EGR 1 - Check EGR Back Pressure Variable Transducer Function
EGR 1 - Check EGR Back Pressure Variable Transducer Function

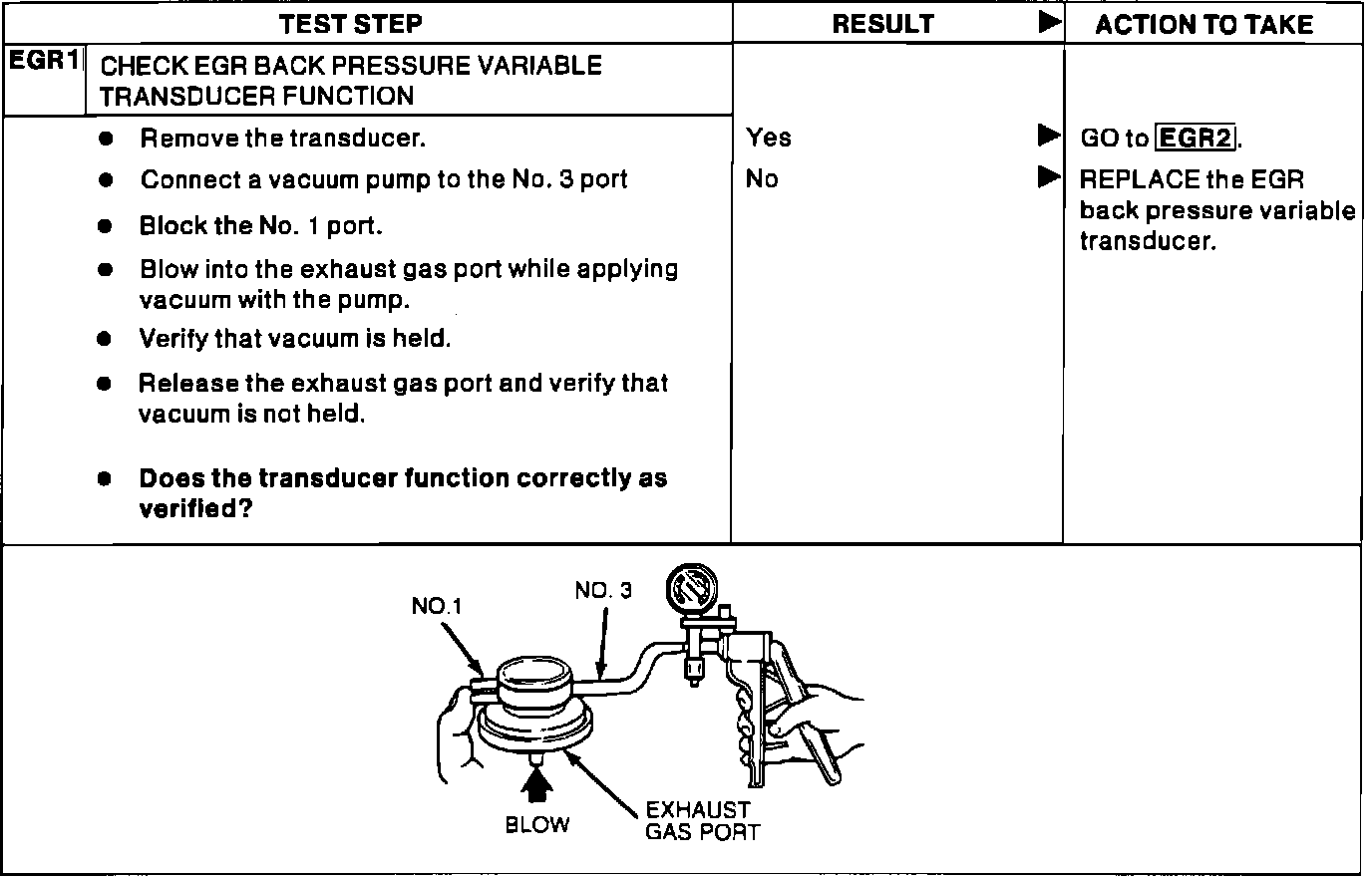

EGR1 - Check EGR Back Pressure Variable Transducer:
