Home
>>
Ford
>>
1992
>>
Probe V6-182 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Sub Woofer Amplifier

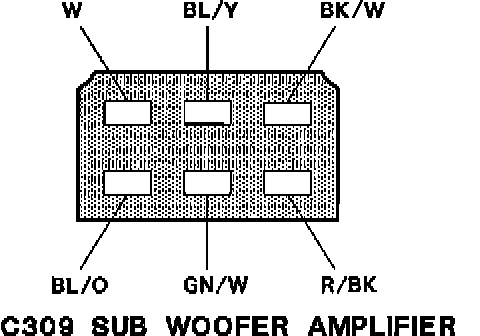

Sub Woofer Amplifier
Sub Woofer Amplifier:
