Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Cooling System >> Temperature Warning Lamp/Indicator >> Testing and Inspection >> Pinpoint Tests >> Tests TG8

Tests TG8

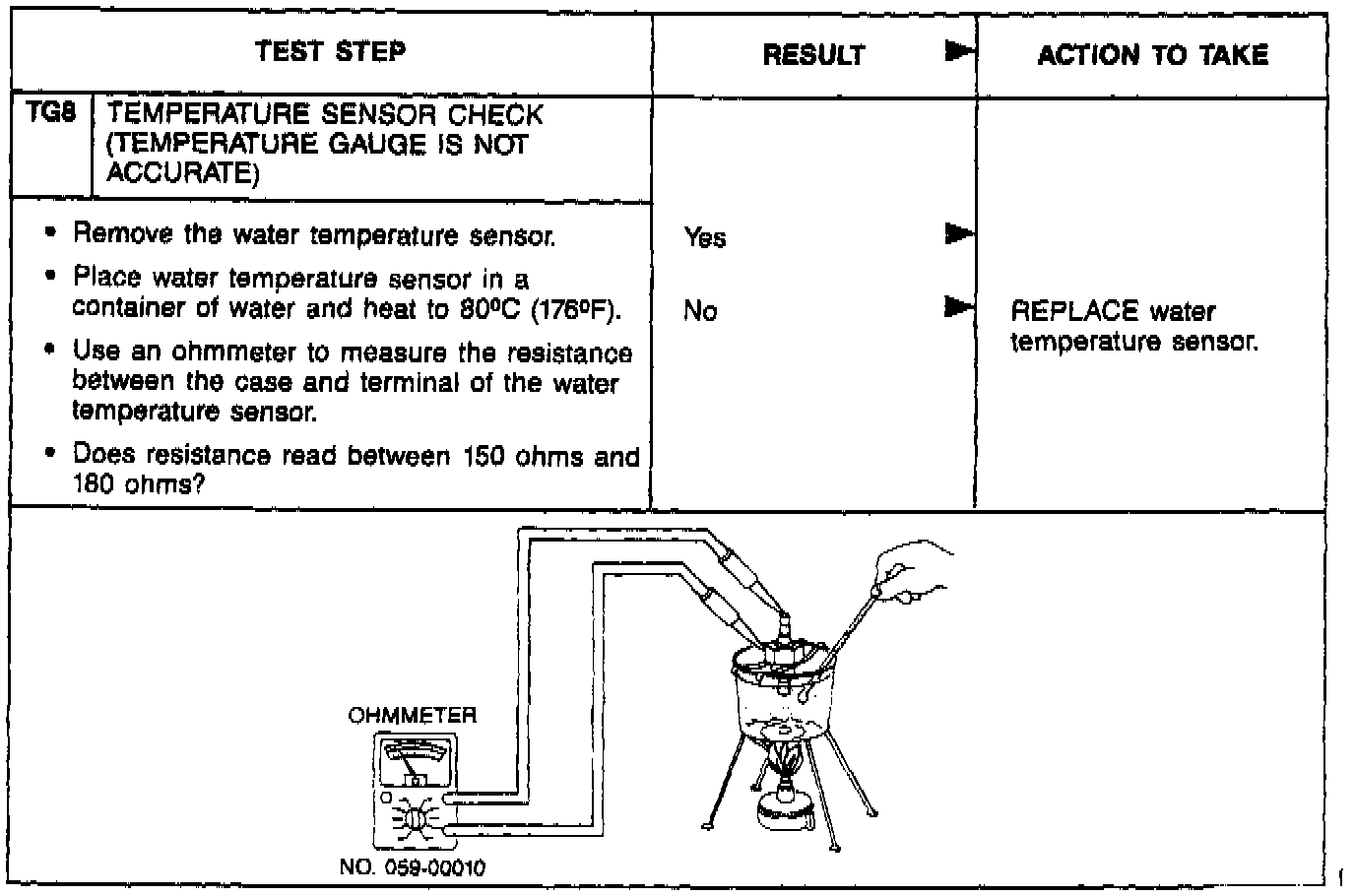

Fig. 15 Temperature Indicating System Diagnosis (Part 5 Of 5).:
