Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>
Electrical Diagrams
>>

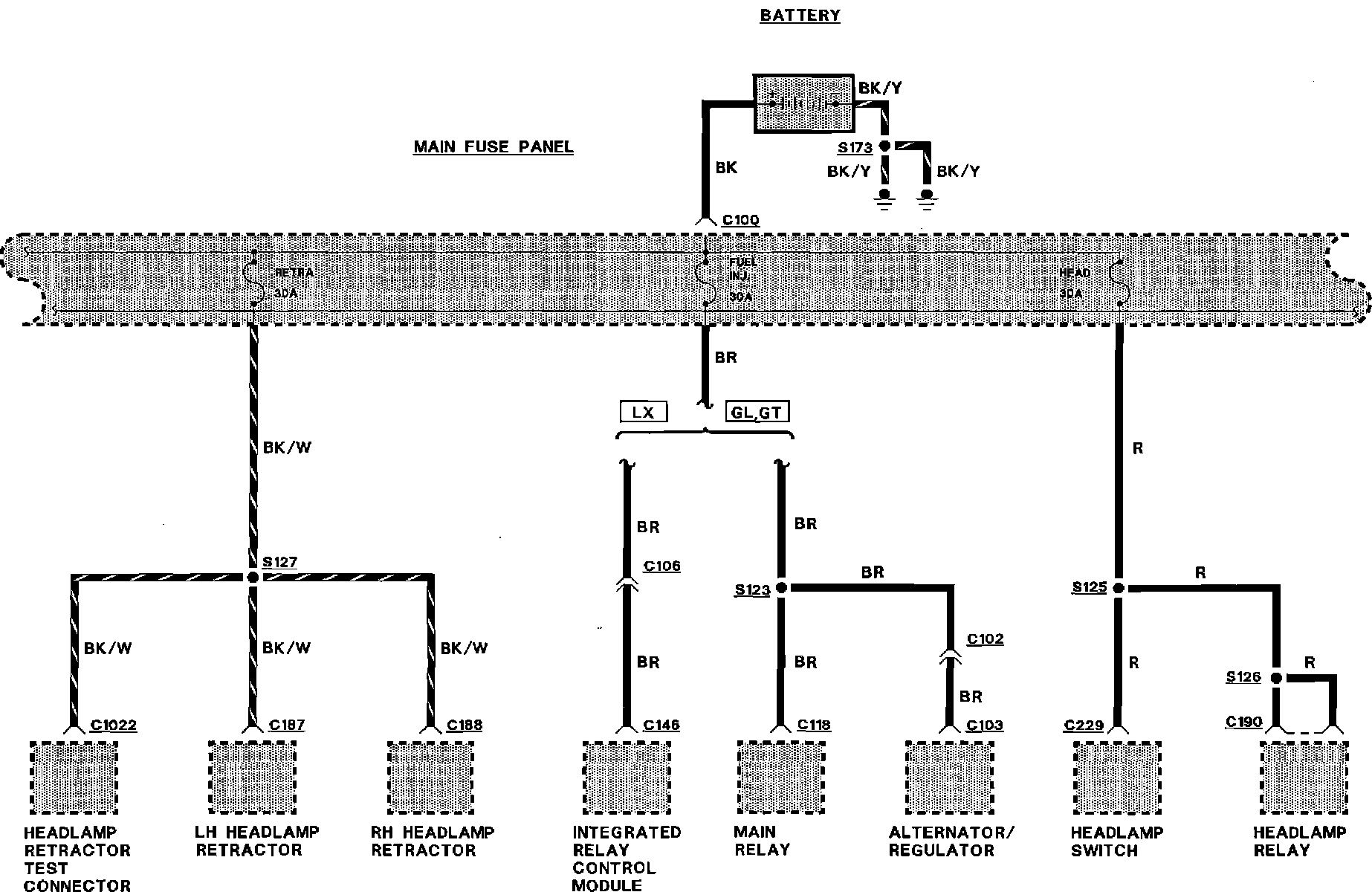

Main Fuse Panel
>>
Retra
Retra
Power Distribution:
