Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Electrical Diagrams >> Main Fuse Panel >> ST. Sign

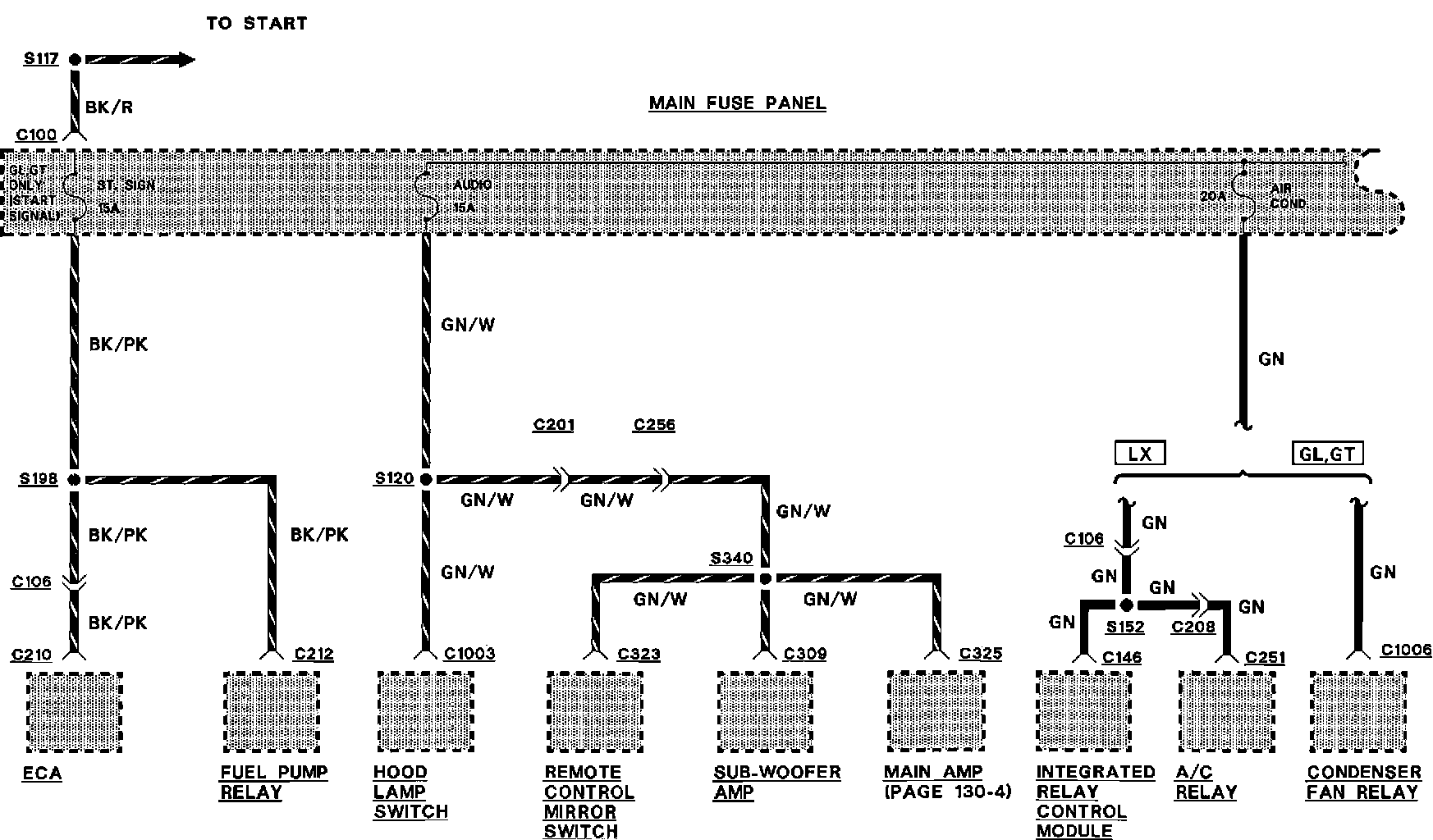

ST. Sign

Power Distribution:
