Integrated Control Relay Module
>>
Locations
>>
Component Locations
Component Locations

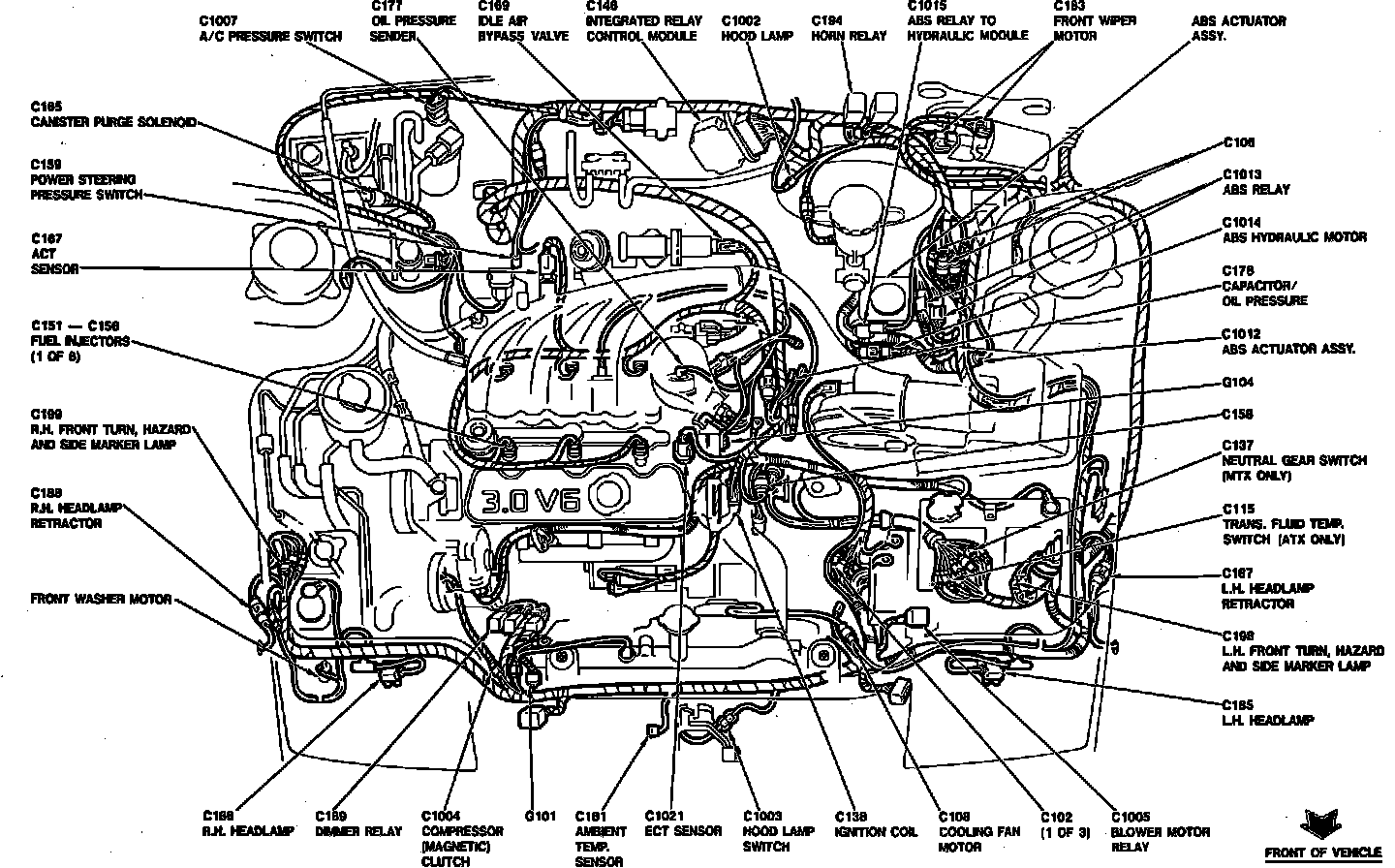

Engine Compartment Component Locations.:
Center Rear Of Engine Compartment
Applicable to: 3.0L/V6-182
