Pressure Plate: Service and Repair

Clutch Assembly:

1. Disconnect battery ground cable.
2. Remove transaxle from vehicle.
3. Install flywheel lock tool No. T84P-6375-A or equivalent, into transaxle mounting hole on the engine, then engage the tooth of the locking tool into the flywheel ring gear. To avoid dropping the clutch disc when the bolts are removed, use clutch aligning tool No. T71P-7137-H for 2.2L/4-133 turbo and 3.0L/V6-182 models or No. T74P-7137-K on non-turbocharged models.

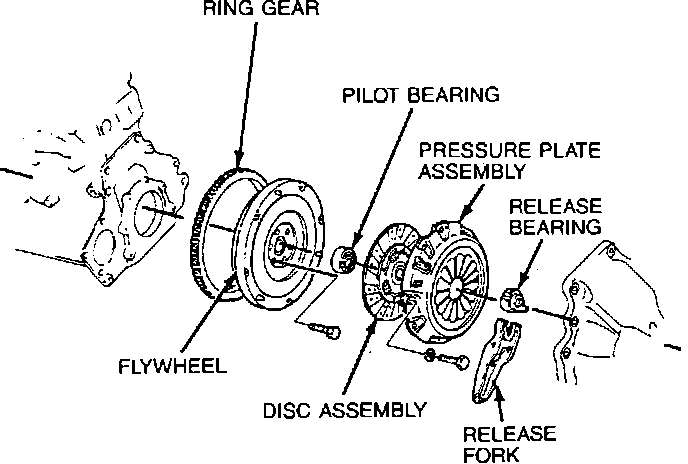

4. Remove bolts attaching pressure plate assembly to flywheel and the pressure plate assembly, Fig. 2.
5. Remove clutch disc and the clutch aligning tool.
6. Reverse procedure to install. Tightening to specifications.
