Home >> Ford >> 1992 >> Probe V6-182 3.0L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wiper/Washer Diagnosis >> Test WW30

Test WW30

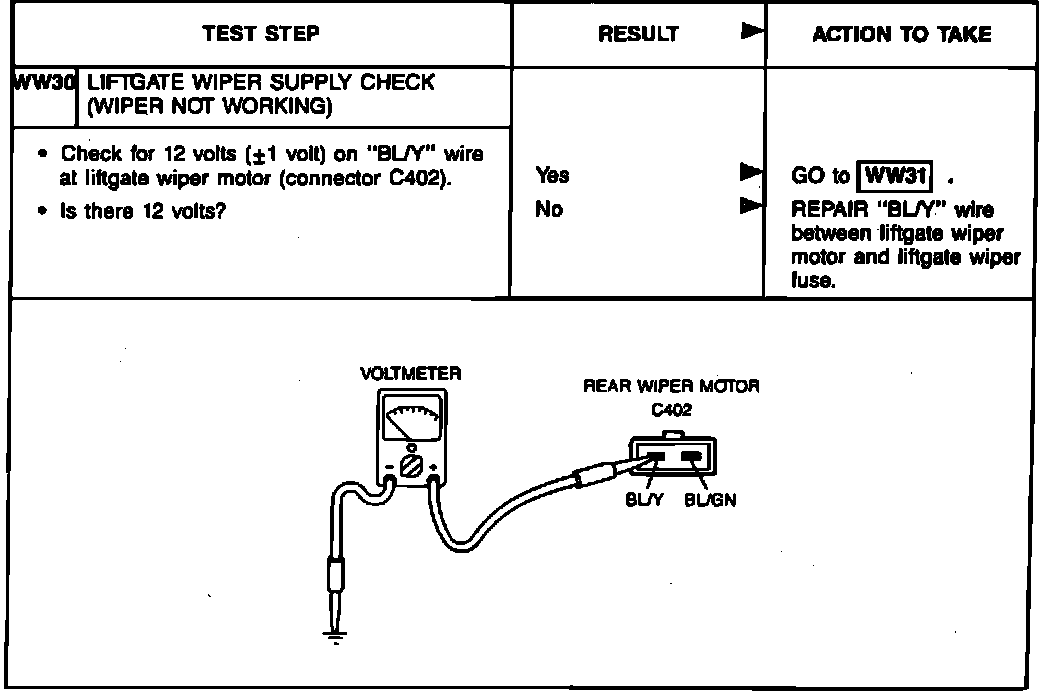

Fig. 16 Wiper System Diagnosis & Testing (Part 21 Of 24):
