Engine Views

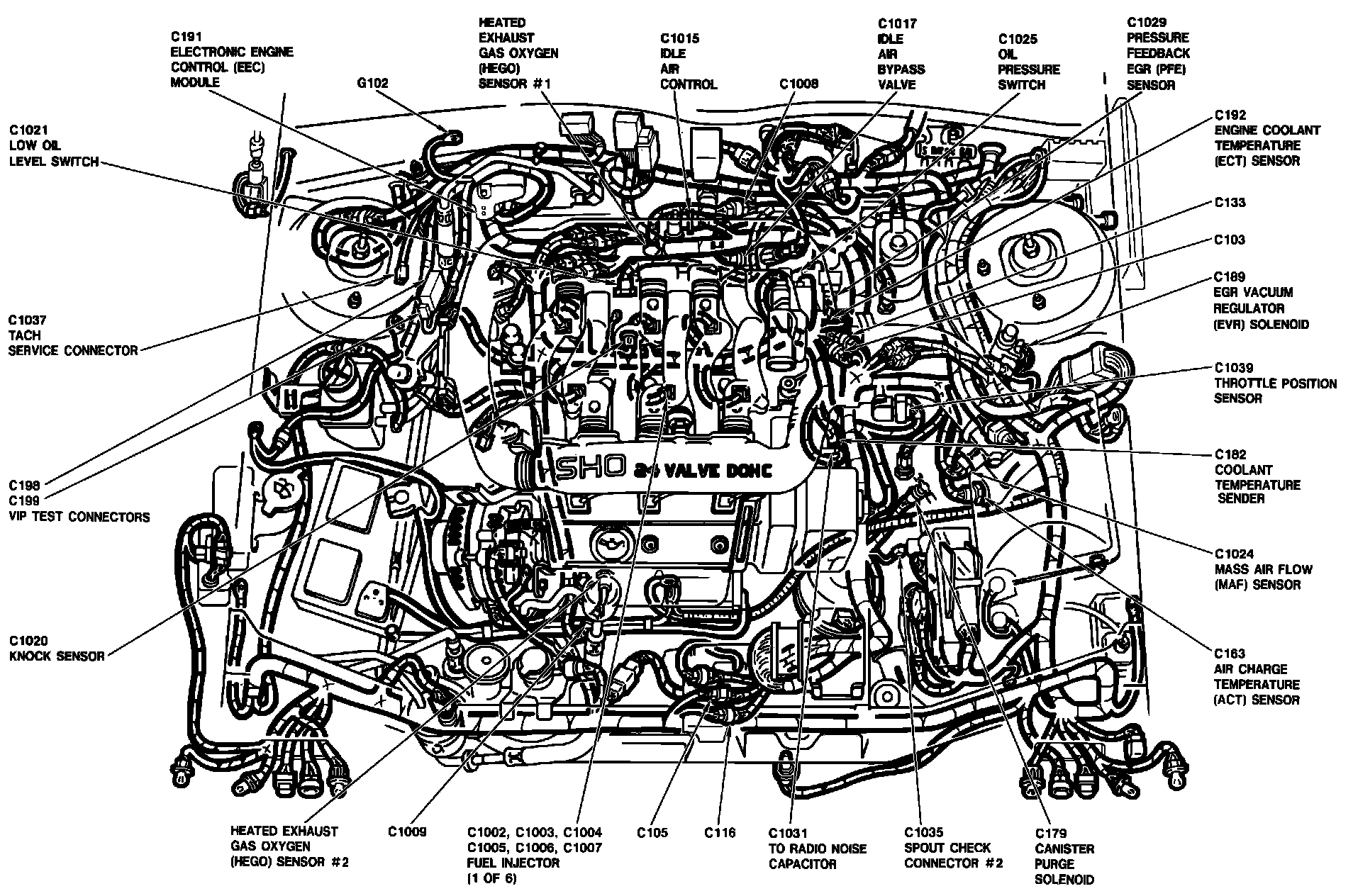

Component Location:

AIR CHARGE TEMPERATURE (ACT) SENSOR
CANISTER PURGE SOLENOID
COOLANT TEMPERATURE SENDER
EGR VACUUM REGULATOR (EVR) SOLENOID
ELECTRONIC ENGINE CONTROL (EEC) MODULE
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTOR (1 OF 6)
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR # 1
HEATED EXHAUST GAS OXYGEN (HEGO) SENSOR # 2
IDLE AIR BYPASS VALVE
IDLE AIR CONTROL
KNOCK SENSOR
LOW OIL LEVEL SWITCH
MASS AIR FLOW (MAF) SENSOR
OIL PRESSURE SWITCH
PRESSURE FEEDBACK EGR (PFE) SENSOR
SPOUT CHECK CONNECTOR # 2
TACH SERVICE CONNECTOR
THROTTLE POSITION SENSOR
TO RADIO NOISE CAPACITOR
VIP TEST CONNECTORS

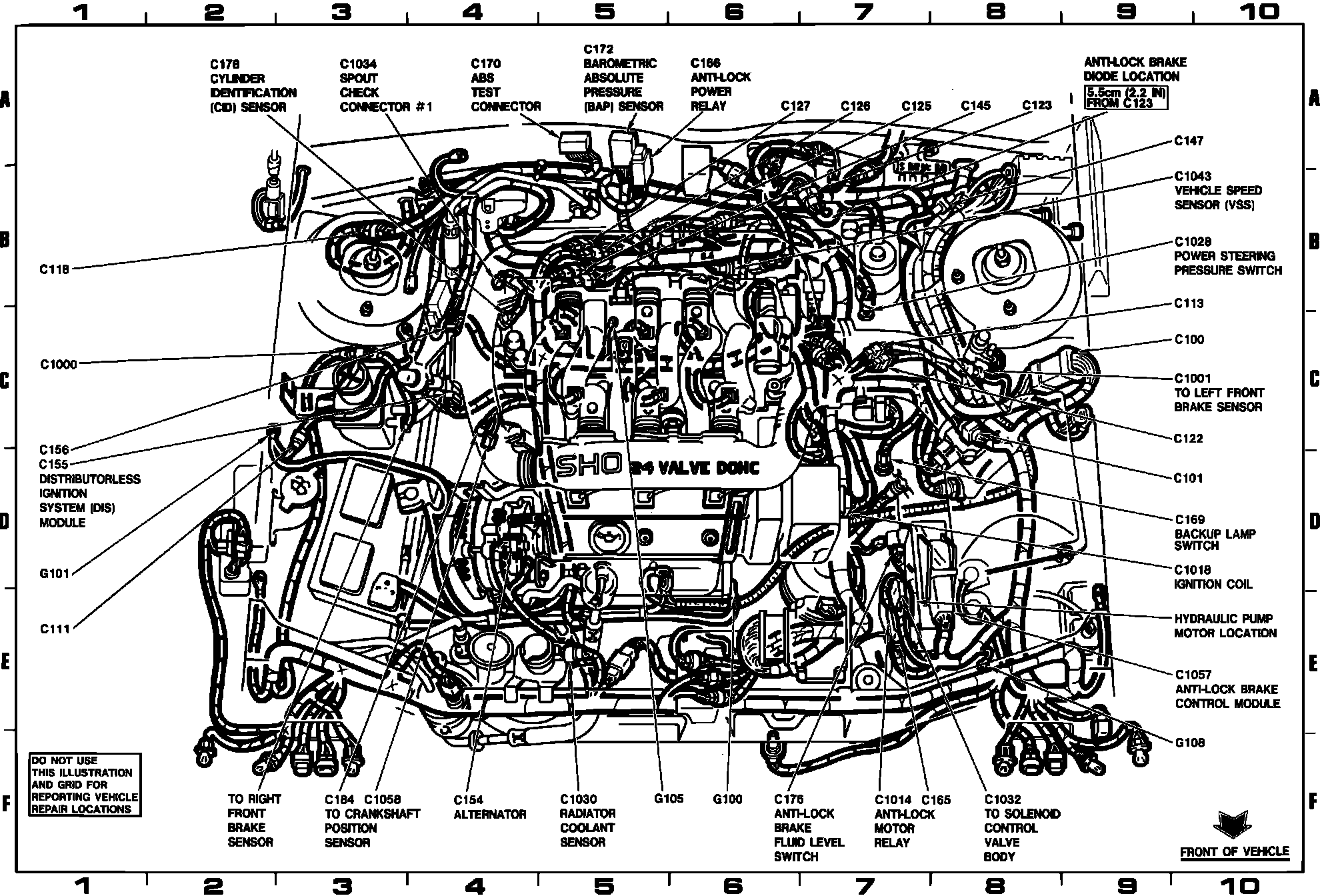

Component Location:

ABS TEST CONNECTOR
ALTERNATOR
ANTI-LOCK BRAKE DIODE LOCATION
ANTI-LOCK BRAKE CONTROL MODULE
ANTI-LOCK BRAKE FLUID LEVEL SWITCH
ANTI-LOCK MOTOR RELAY
ANTI-LOCK POWER RELAY
BACKUP LAMP SWITCH
BAROMETRIC ABSOLUTE PRESSURE (BAP) SENSOR
CYLINDER IDENTIFICATION (CID) SENSOR
DISTRIBUTORLESS IGNITION SYSTEM (DIS) MODULE
HYDRAULIC PUMP MOTOR LOCATION
IGNITION COIL
POWER STEERING PRESSURE SWITCH
RADIATOR COOLANT SENSOR
SPOUT CHECK CONNECTOR # 1
TO CRANKSHAFT POSITION SENSOR
TO LEFT FRONT BRAKE SENSOR
TO RIGHT FRONT BRAKE SENSOR
TO SOLENOID CONTROL VALVE BODY
VEHICLE SPEED SENSOR (VSS)

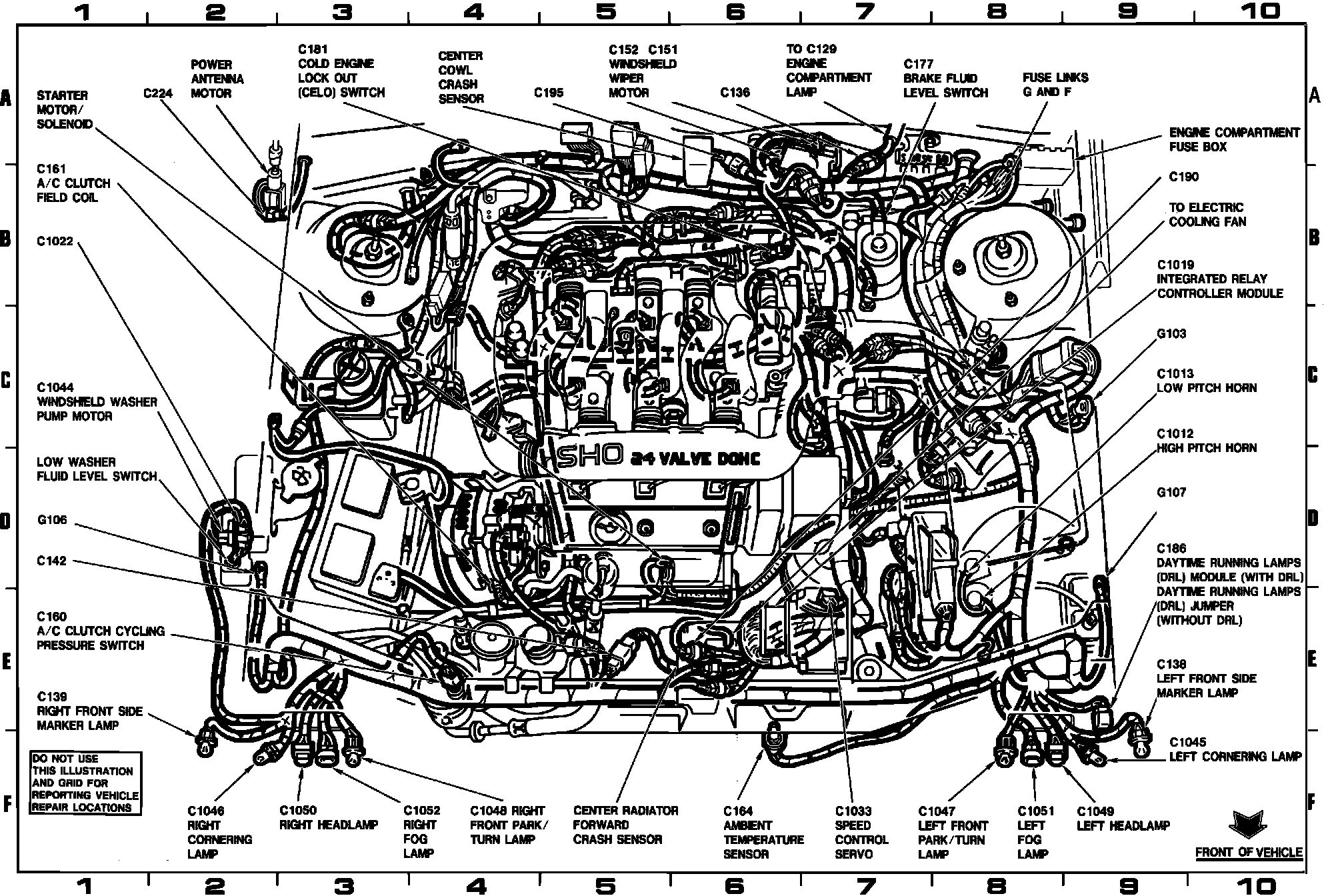

Component Location:

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C CLUTCH FIELD COIL
AMBIENT TEMPERATURE SENSOR
BRAKE FLUID LEVEL SWITCH
CENTER COWL CRASH SENSOR
CENTER RADIATOR FORWARD CRASH SENSOR
COLD ENGINE LOCKOUT (CELO) SWITCH
DAYTIME RUNNING LAMPS (DRL) MODULE (WITH DRL)
DAYTIME RUNNING LAMPS (DRL) JUMPER (WITHOUT DRL)
ENGINE COMPARTMENT FUSE BOX
ENGINE COMPARTMENT LAMP
FUSE LINKS G AND F
INTEGRATED RELAY CONTROLLER MODULE
LEFT CORNERING LAMP
LEFT FOG LAMP
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT PARK/TURN LAMP
LEFT HEADLAMP
LOW PITCH HORN
LOW WASHER FLUID LEVEL SWITCH
POWER ANTENNA MOTOR
RIGHT CORNERING LAMP
RIGHT FOG LAMP
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT HEADLAMP
SPEED CONTROL SERVO
STARTER MOTOR SOLENOID
TO ELECTRIC COOLING FAN
WINDSHIELD WASHER PUMP MOTOR
WINDSHIELD WIPER MOTOR
