Ignition Control Module: Service and Repair

REMOVAL





1. Disconnect battery ground cable.
2. Disconnect both electrical connectors at ignition module assembly by pressing down on locking tabs where it is stamped PUSH and remove connector.
3. Remove module retaining bolts and remove module.

INSTALLATION

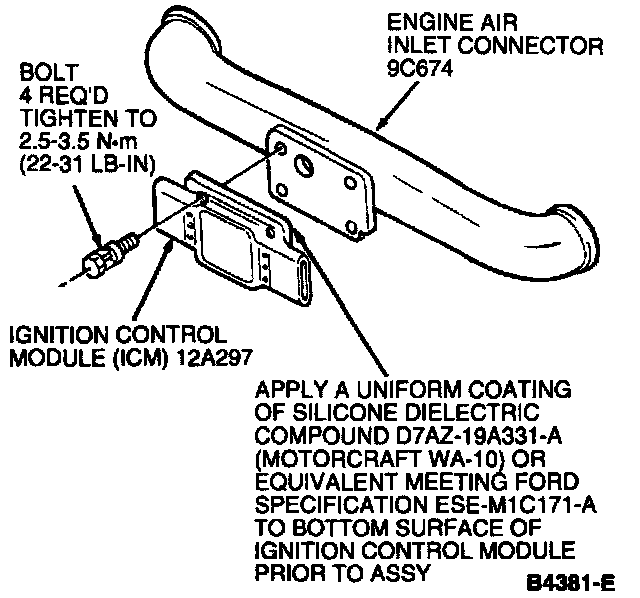

1. Apply an even coat of approximately 0.80mm (1/32 in) of silicone dielectric compound or equivalent to mounting surface of ignition module. Install module and retaining bolts. Tighten bolts to 22-31 in lb (2.4-3.5 Nm).
2. Connect both electrical connectors to module.
3. Connect battery ground cable.
