Amplifier, Sound System
>>
CD Amplifier
CD Amplifier

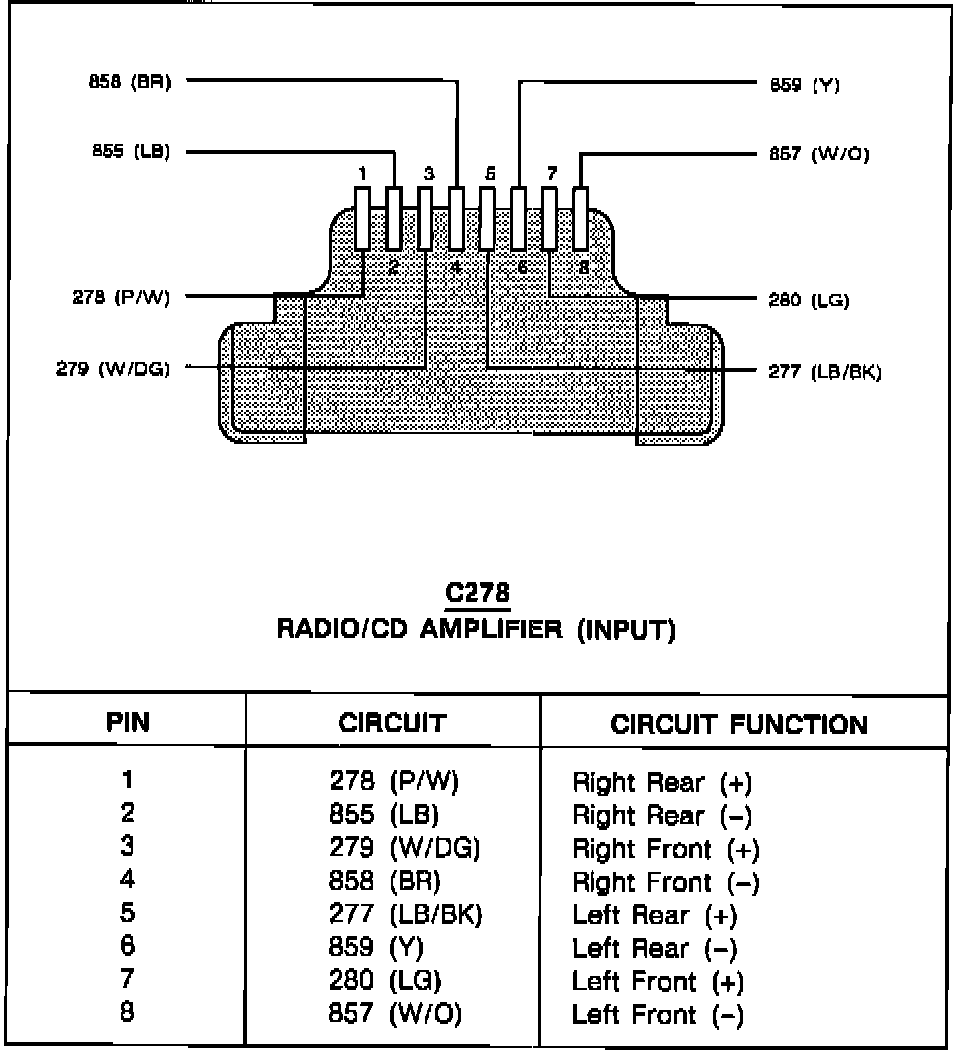

Radio/CD Player (Input):

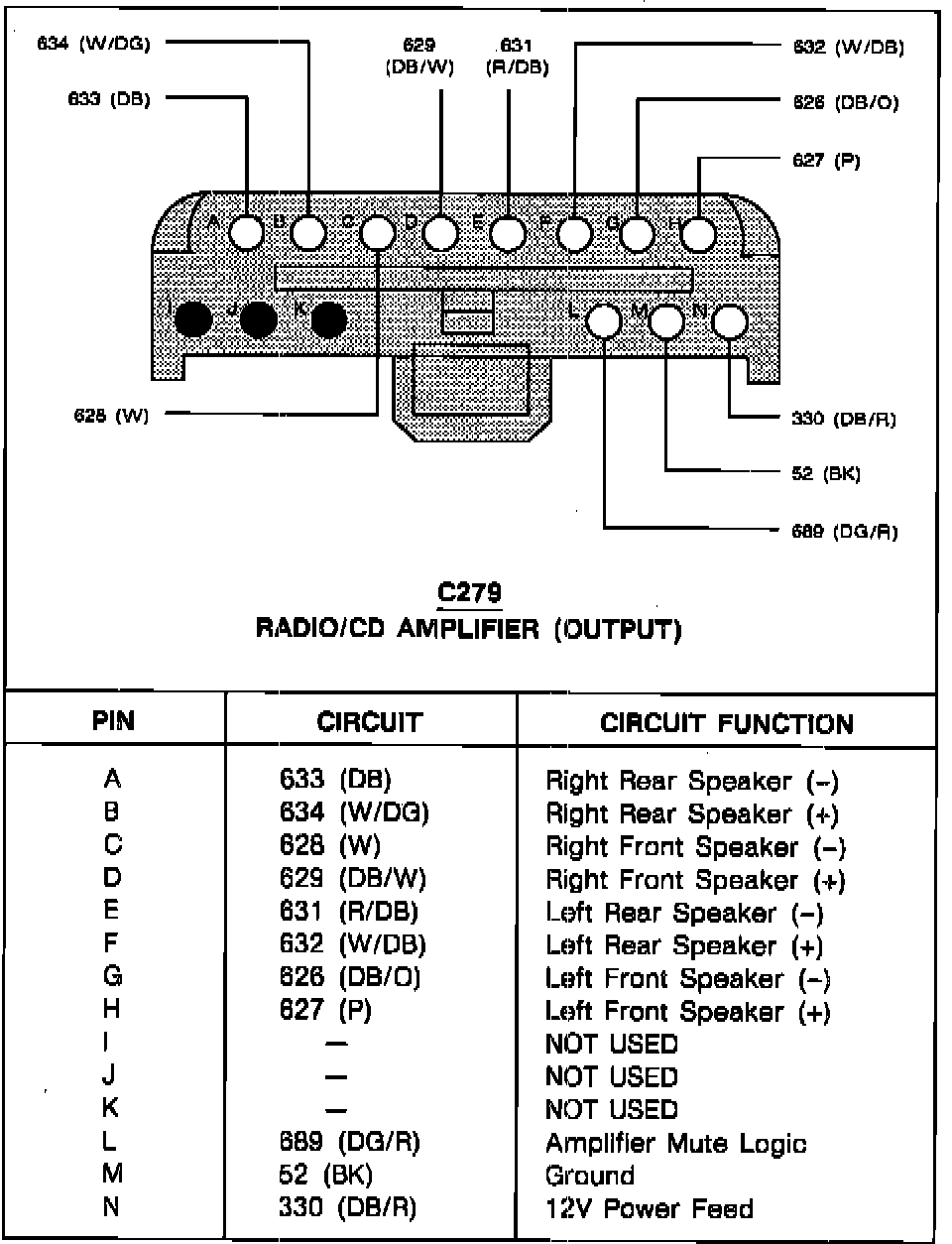

Radio/CD Player (Output):
