Home >> Ford >> 1993 >> Escort L4-110 1.8L DOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Diagrams >> Electrical Diagrams >> Power Distribution

Power Distribution

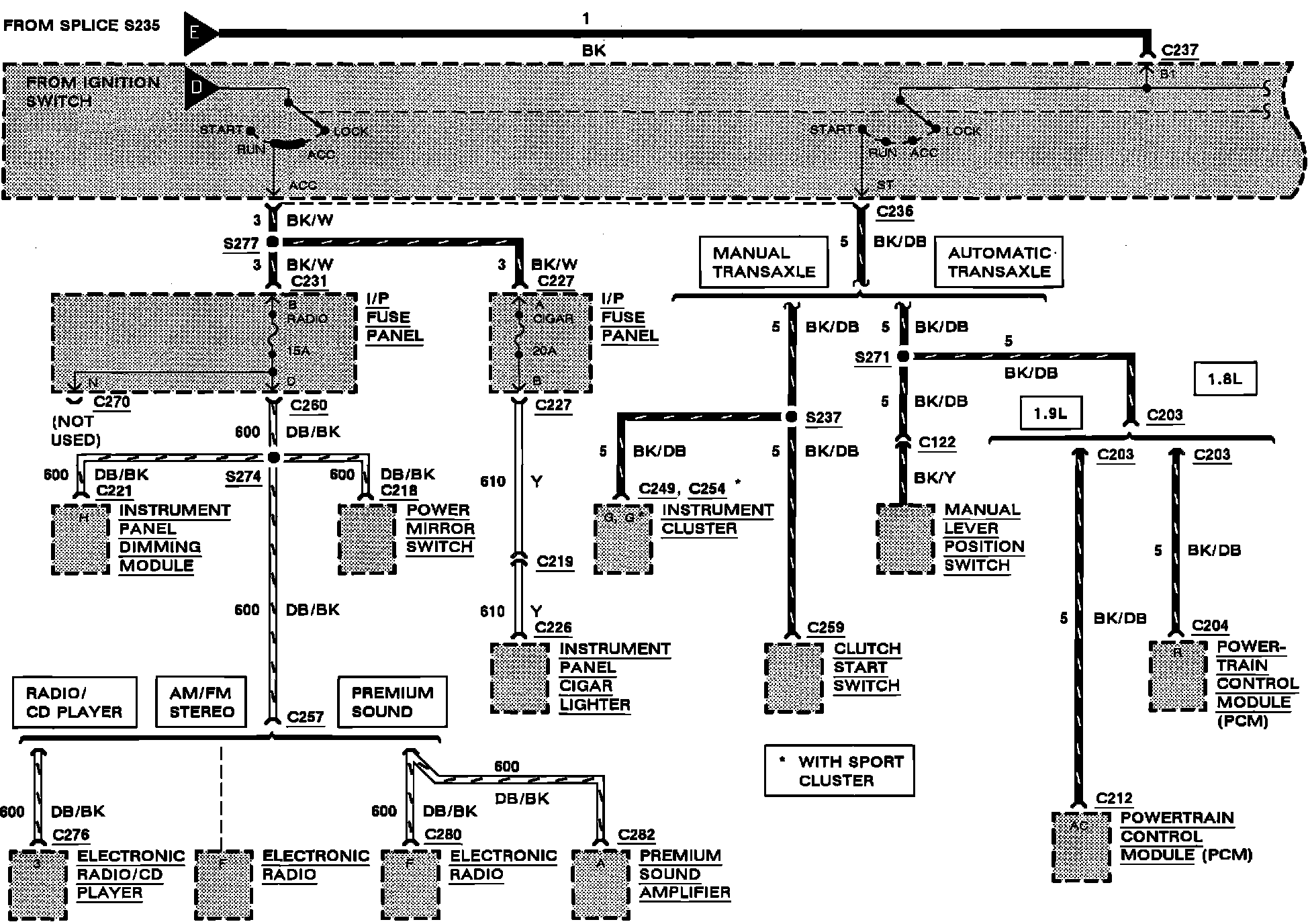

Power Distribution:





Part 1 of 4

Power Distribution:





Part 2 of 4

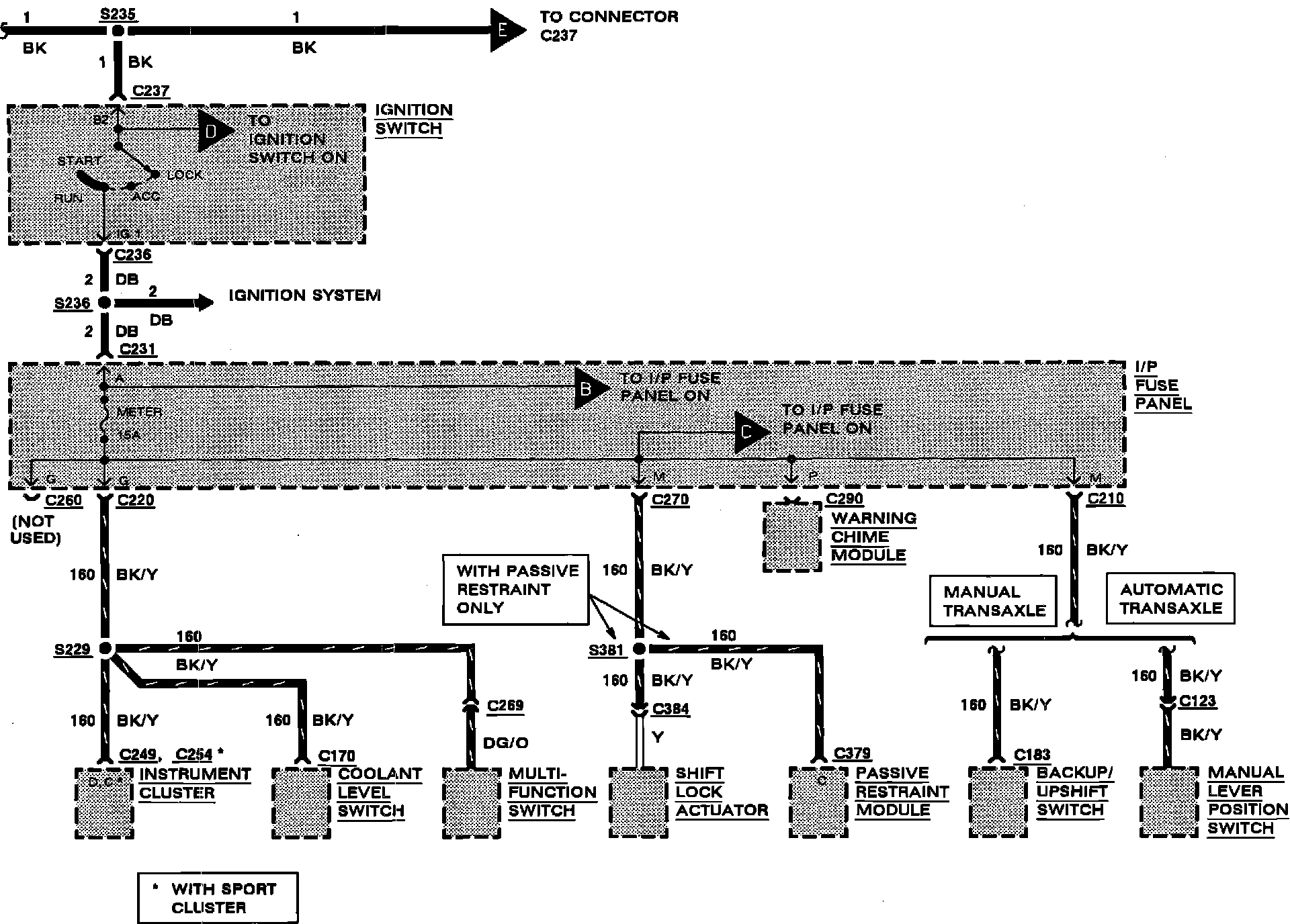

Power Distribution:





Part 3 of 4

Power Distribution:





Part 4 of 4
