Ignition Switch: Testing and Inspection

Component Testing Procedure:

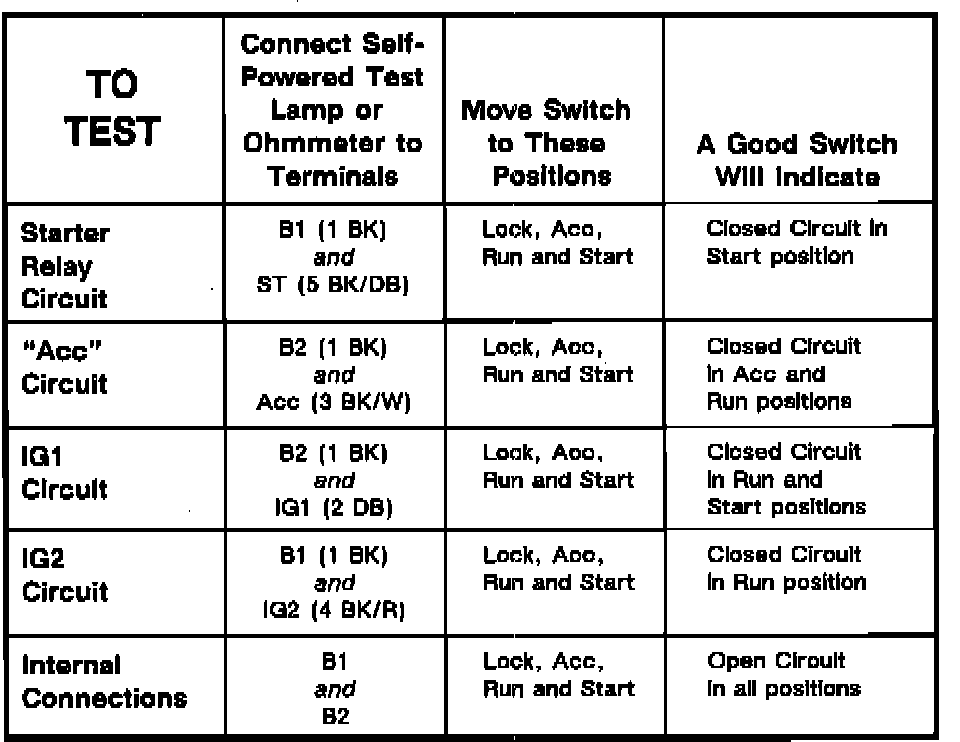

COMPONENT TESTING PROCEDURE


Terminal Locations:






TERMINAL IDENTIFICATION

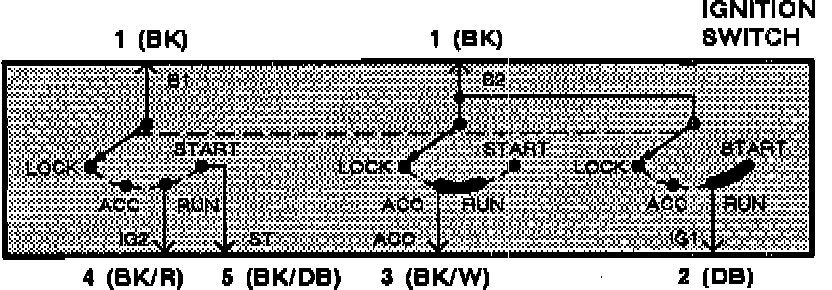

Ignition Switch Schematic:






SCHEMATIC
