Full Body View


SEDAN

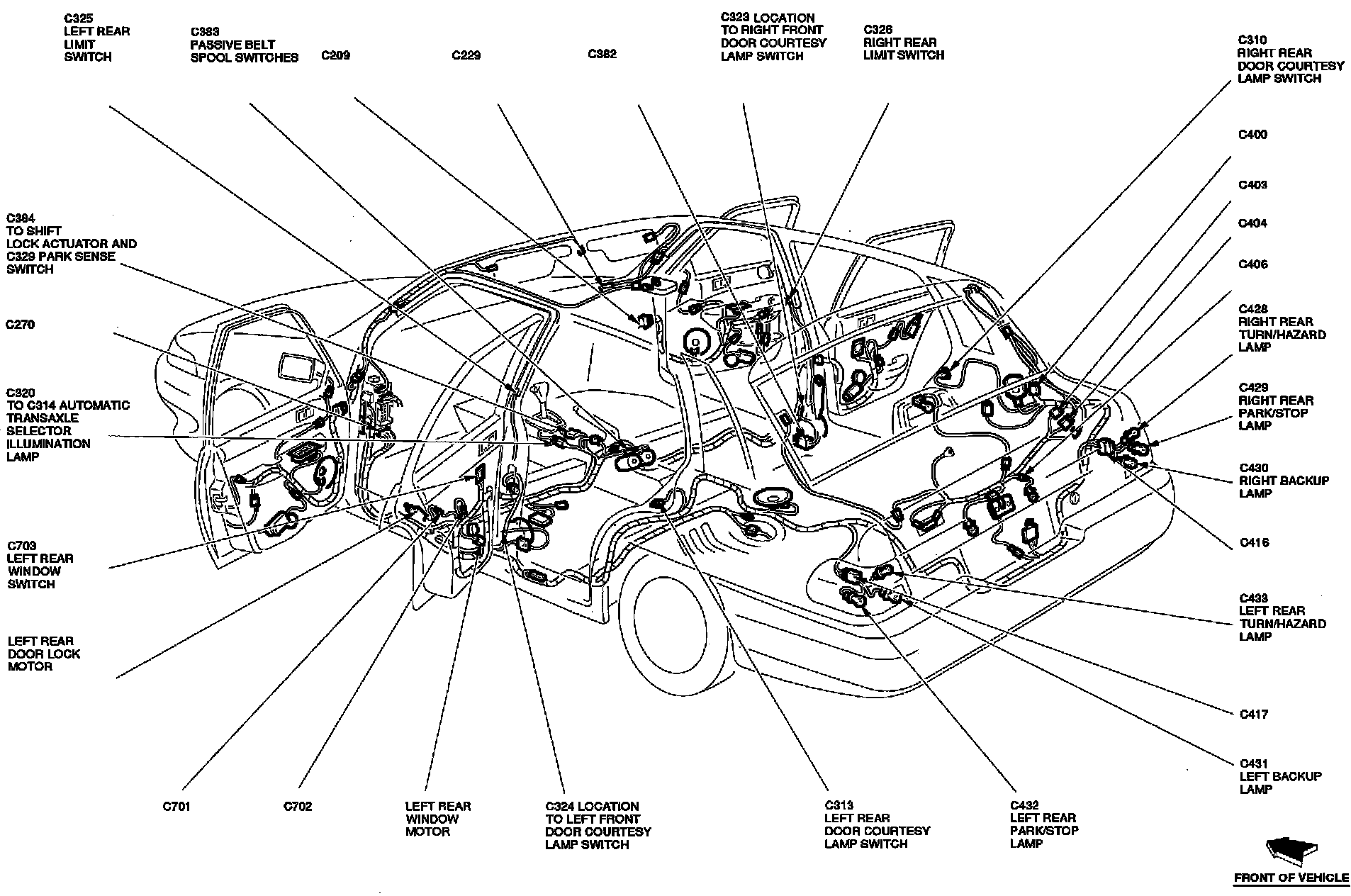

Full Body View:

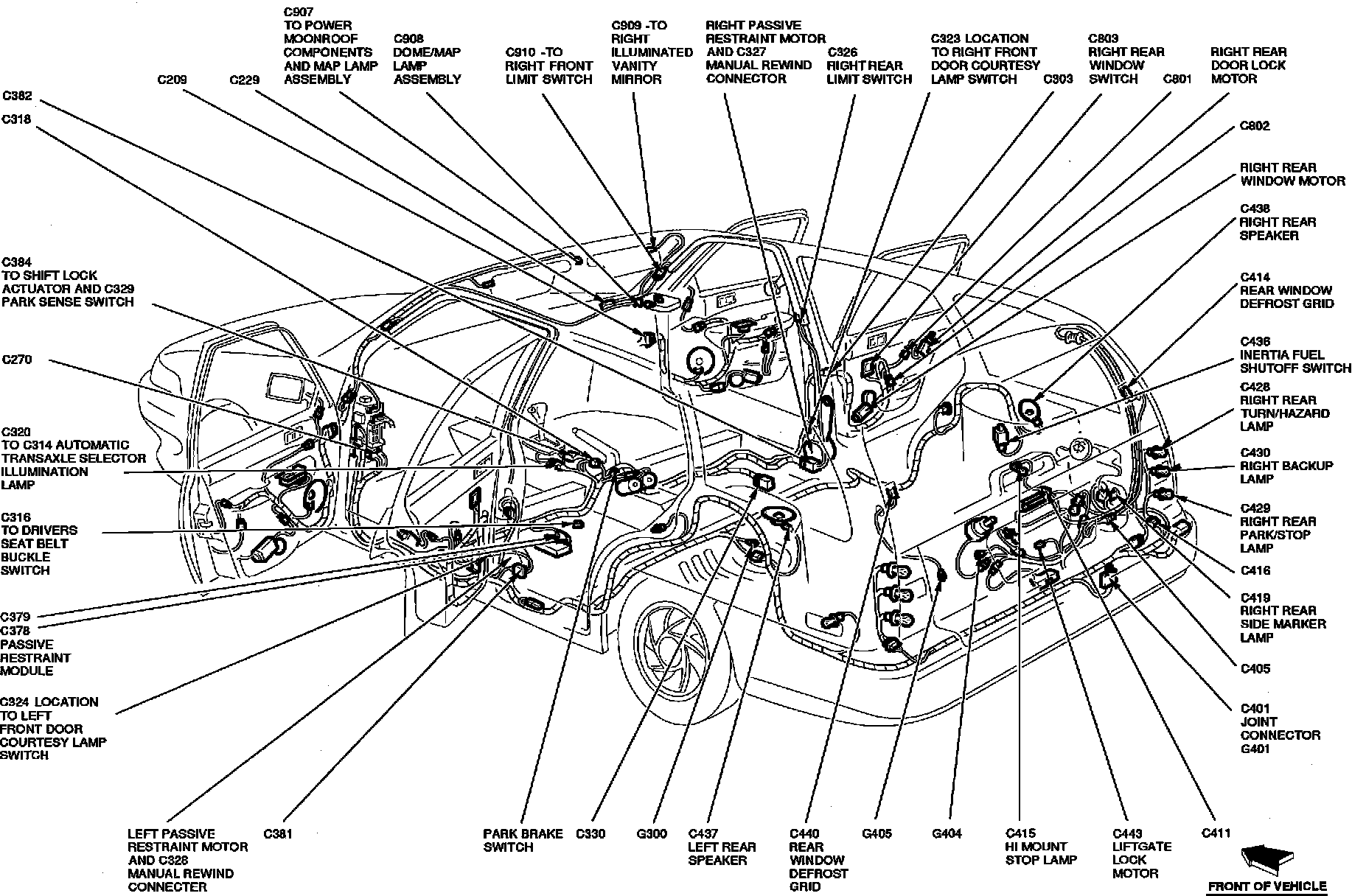

Full Body View:







STATION WAGON

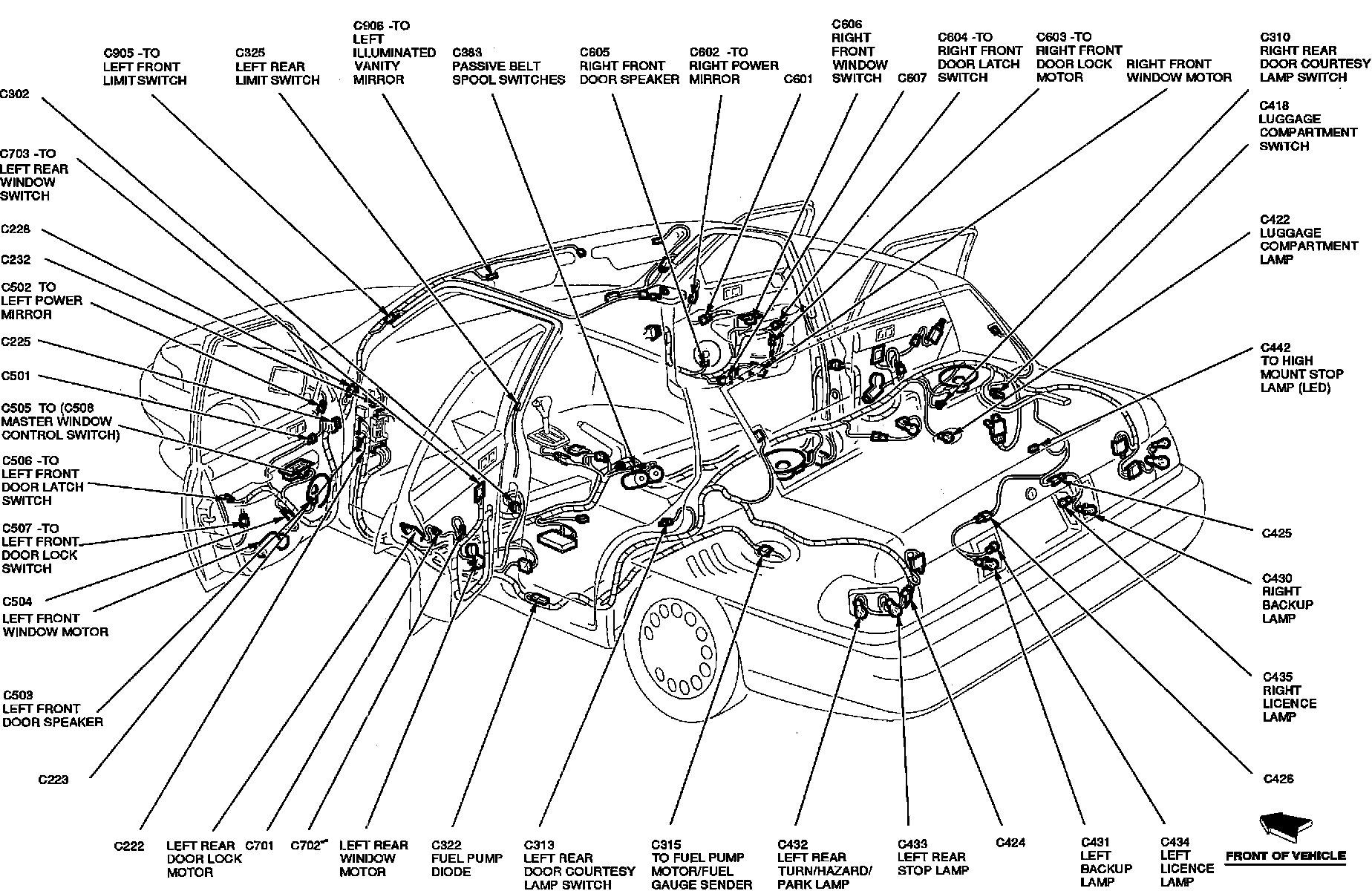

Full Body View:

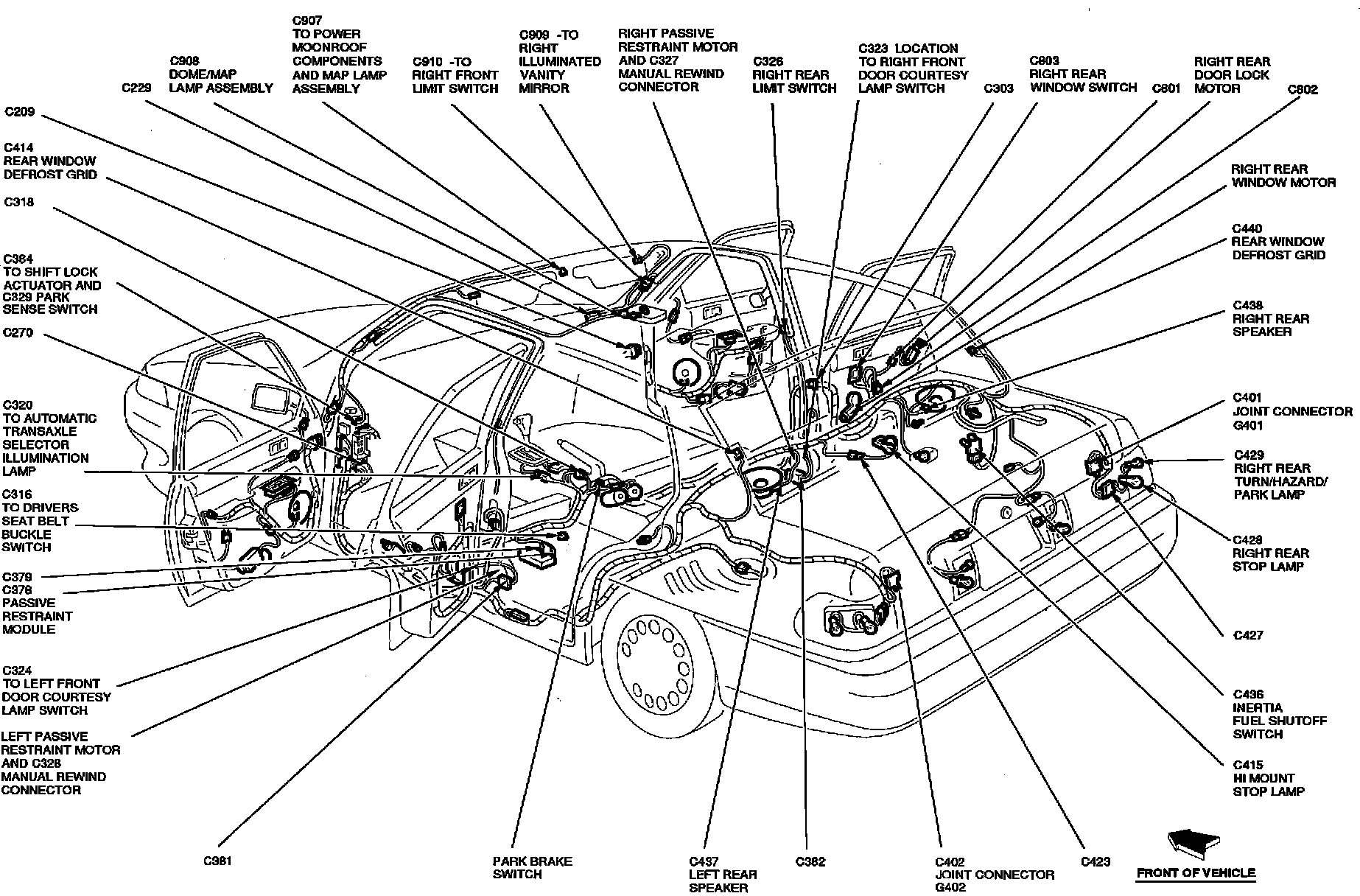

Full Body View:







HATCHBACK

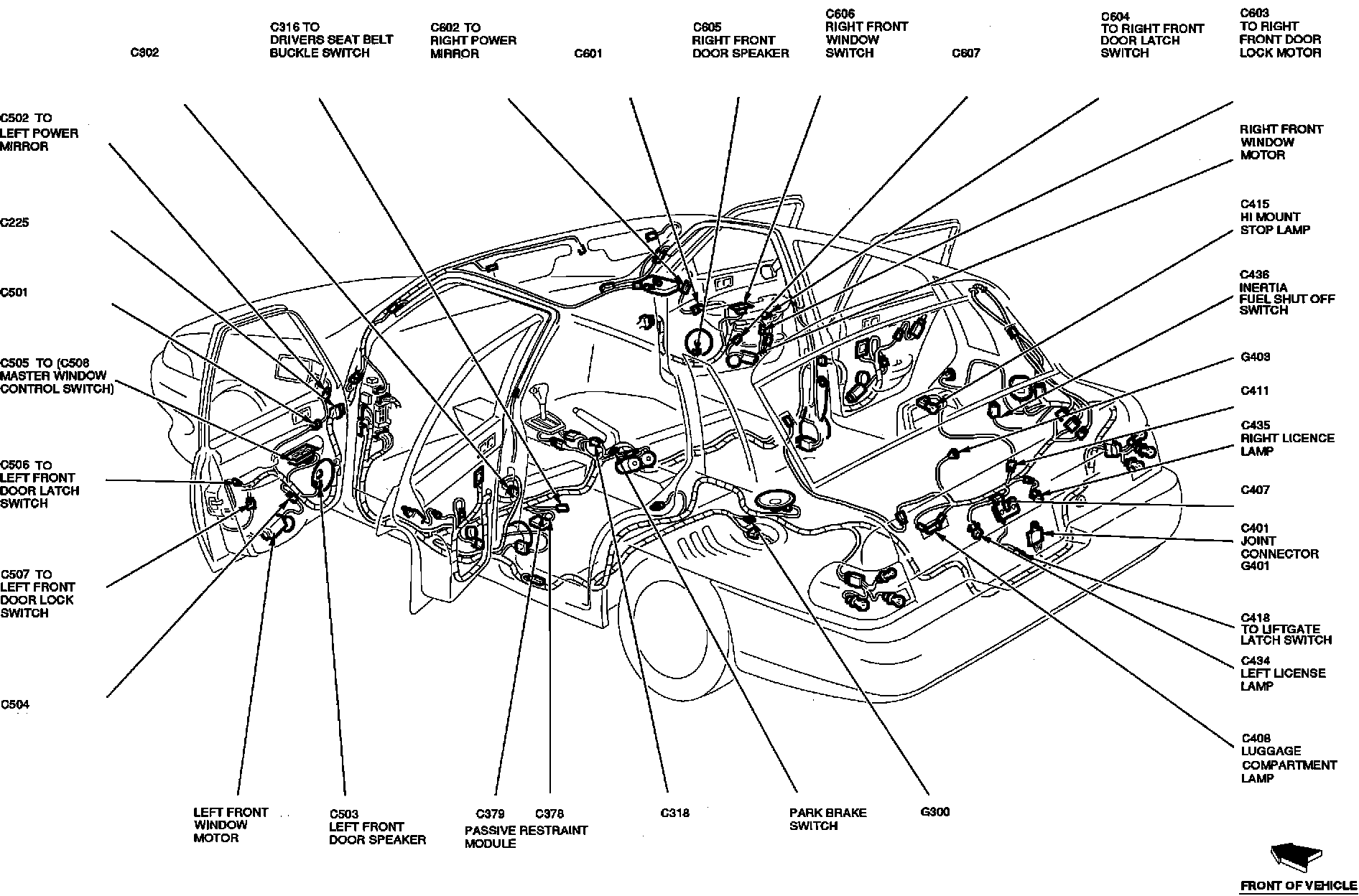

Full Body View:

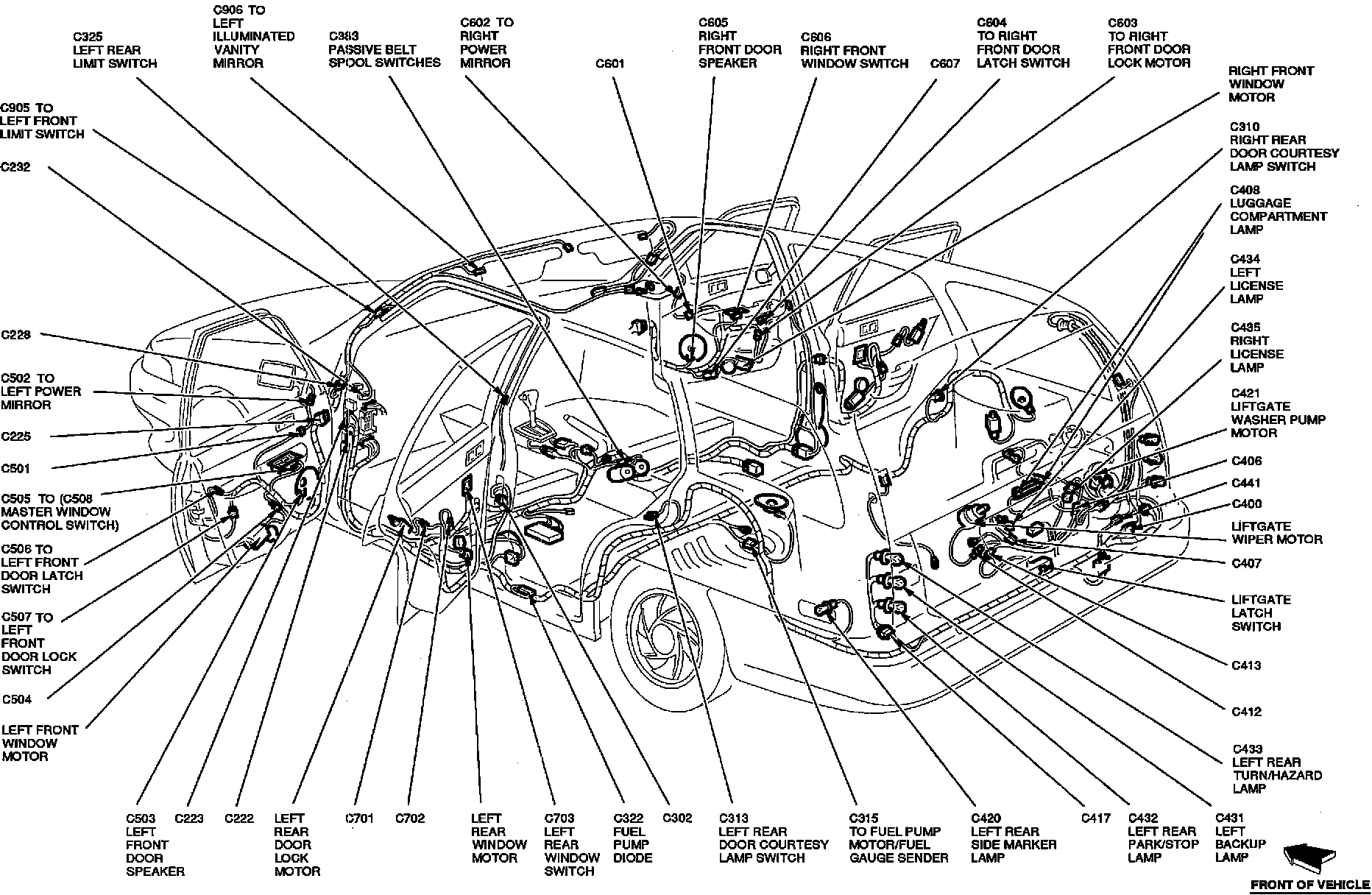

Full Body View:

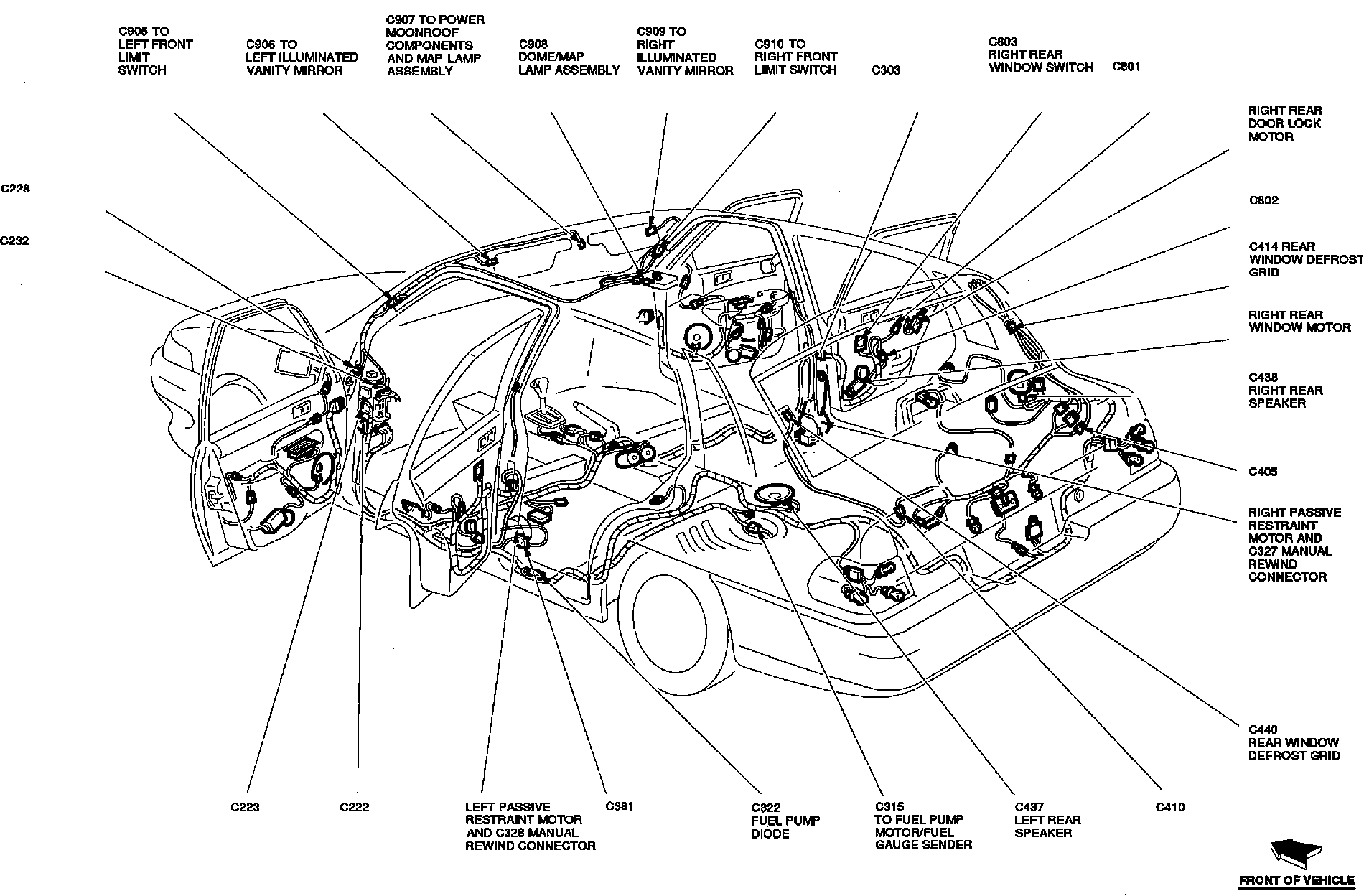

Full Body View:
