Part 1 of 2

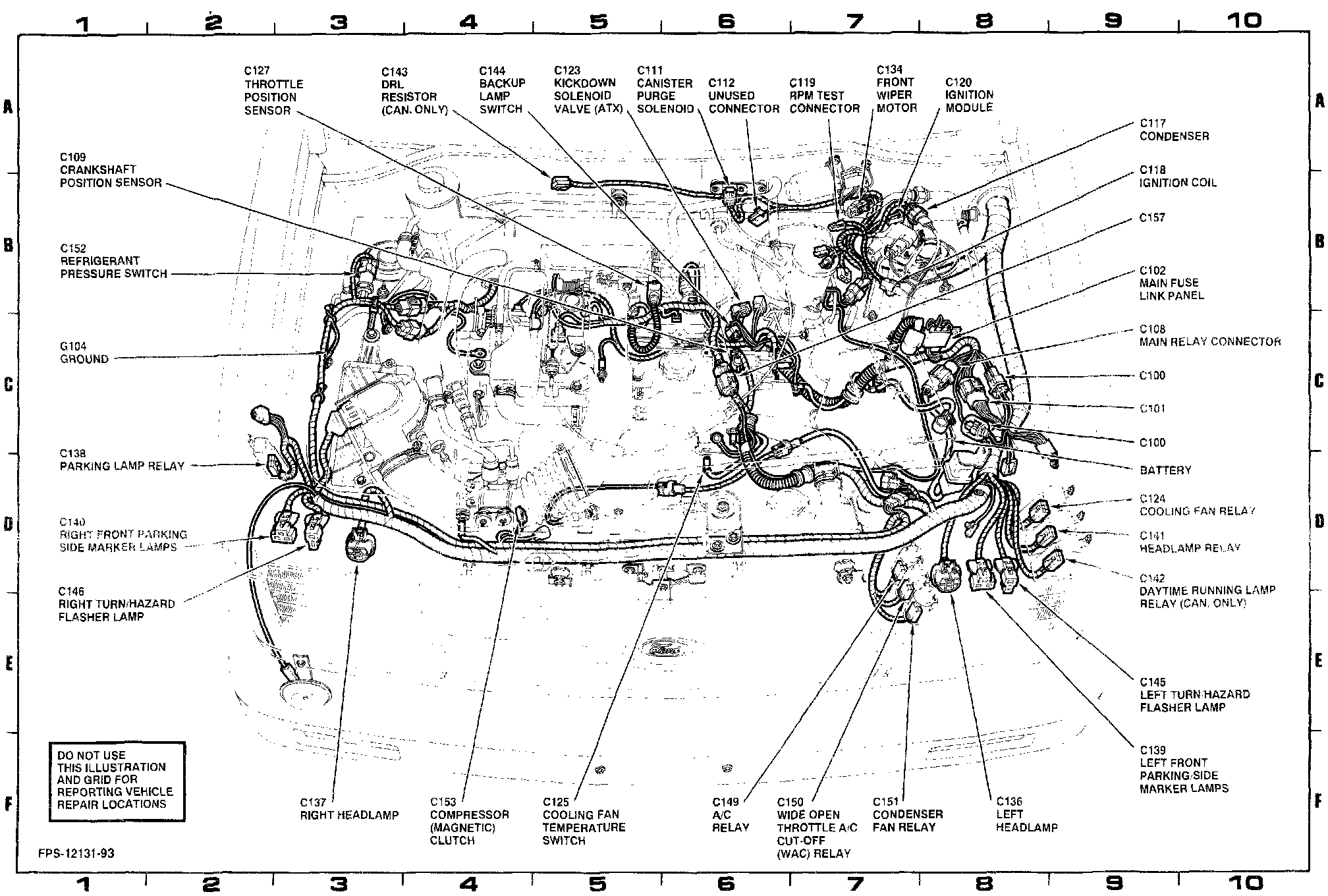

Engine Compartment Component Locations:

A/C RELAY
BACKUP LAMP SWITCH
BATTERY
CANISTER PURGE SOLENOID
COMPRESSOR (MAGNETIC) CLUTCH
CONDENSER
CONDENSER FAN RELAY
COOLING FAN RELAY
COOLING FAN TEMPERATURE SWITCH
CRANKSHAFT POSITION SENSOR
DAYTIME RUNNING LAMP RELAY (CAN. ONLY)
DRL RESISTOR (CAN. ONLY)
FRONT WIPER MOTOR
GROUND
HEADLAMP RELAY
IGNITION COIL
IGNITION MODULE
KICKDOWN SOLENOID VALVE (ATX)
LEFT FRONT PARKING/SIDE MARKER LAMPS
LEFT HEADLAMP
LEFT TURN/HAZARD FLASHER LAMP
MAIN FUSE LINK PANEL
MAIN RELAY CONNECTOR
PARKING LAMP RELAY
REFRIGERANT PRESSURE SWITCH
RIGHT FRONT PARKING/SIDE MARKER LAMPS
RIGHT HEADLAMP
RIGHT TURN HAZARD FLASHER LAMP
RPM TEST CONNECTOR
THROTTLE POSITION SENSOR
UNUSED CONNECTOR
WIDE OPEN THROTTLE A/C CUT-OFF (WAC) RELAY
