Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

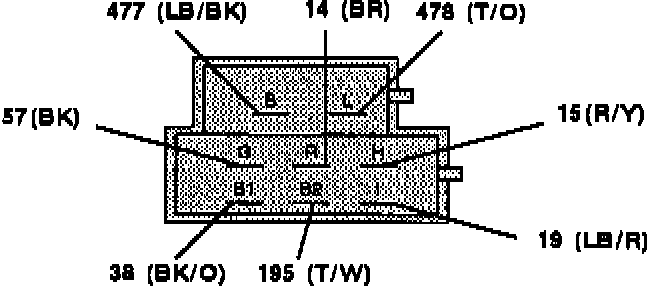

Fog/Driving Lamp Switch
Fog/Driving Lamp Switch
Terminal ID:
