Home
>>
Ford
>>
1993
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
>>
Connector Side
Connector Side

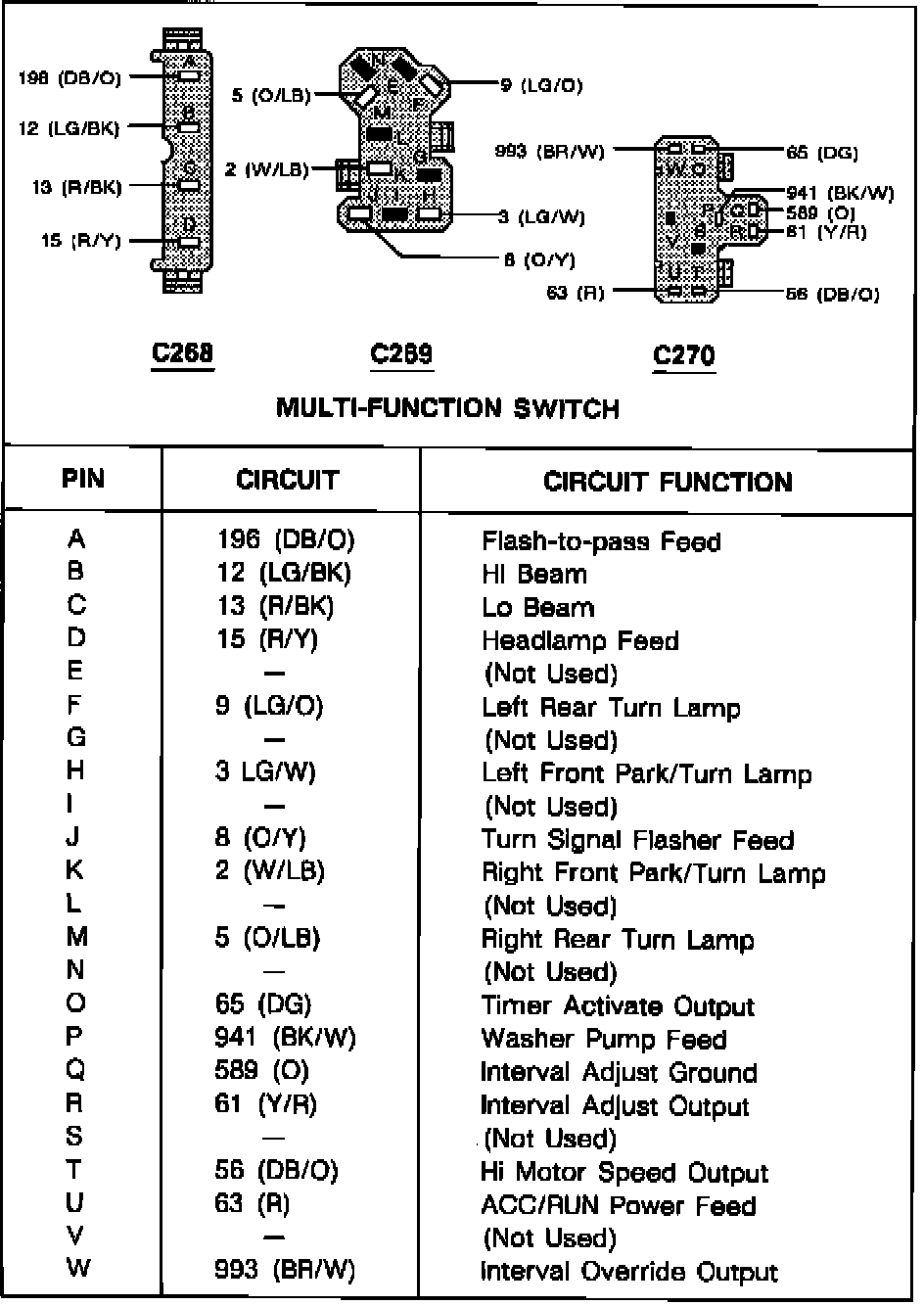

Multi-Function Switch:
