Ford
>>
1993
>>
Mustang L4-140 2.3L SOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
Fuse: Locations

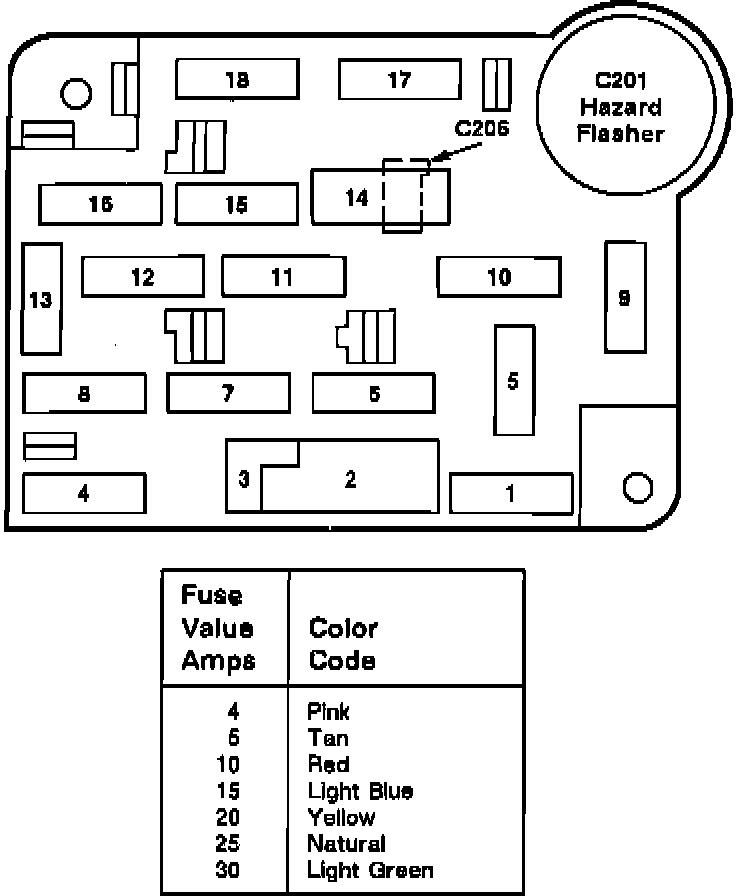

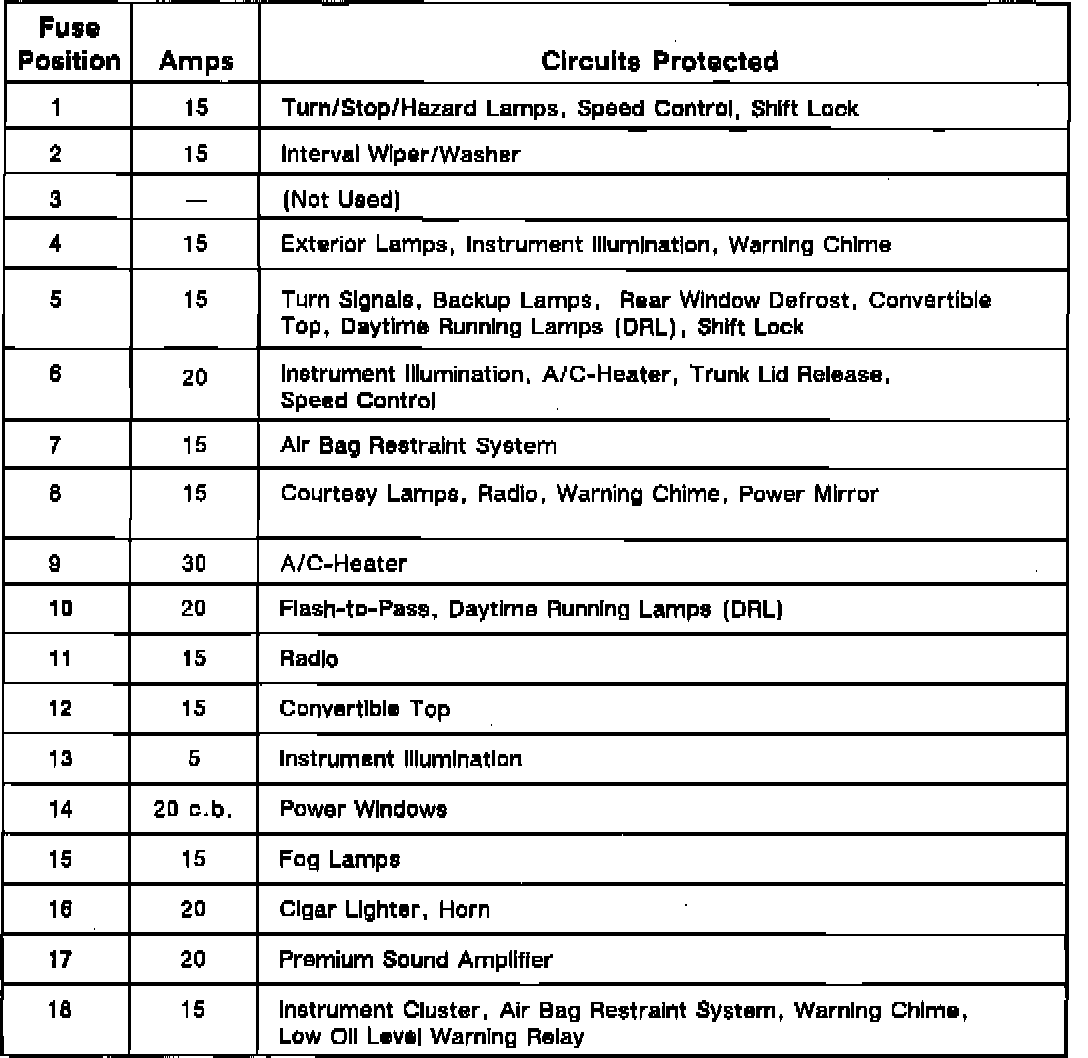

Power Distribution Fuse Panel:
Circuit Protector:
