Removal

1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Remove the connector bolt attaching the front brake hose to the front disc brake caliper.

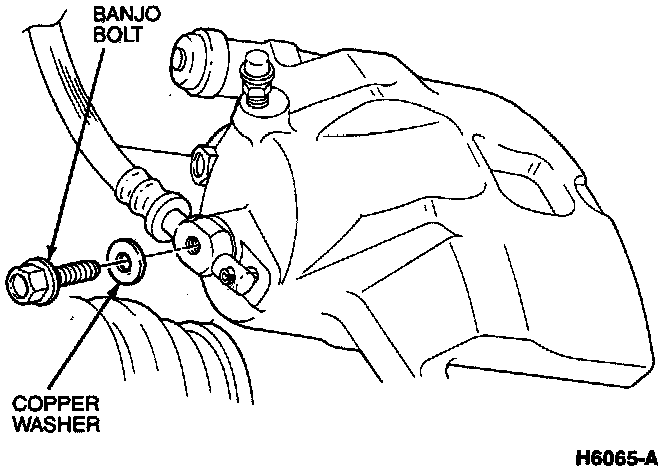

Washer And Caliper Bolt:

4. Remove the two copper washers that seal the front brake hose banjo fitting and discard them.
5. Remove the brake caliper bolts.
6. Pivot the front disc brake caliper off the brake shoes and linings and slide the front disc brake caliper off the disc brake caliper locating pin.
