Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Amplifier
>>
Main Amplifier
Main Amplifier

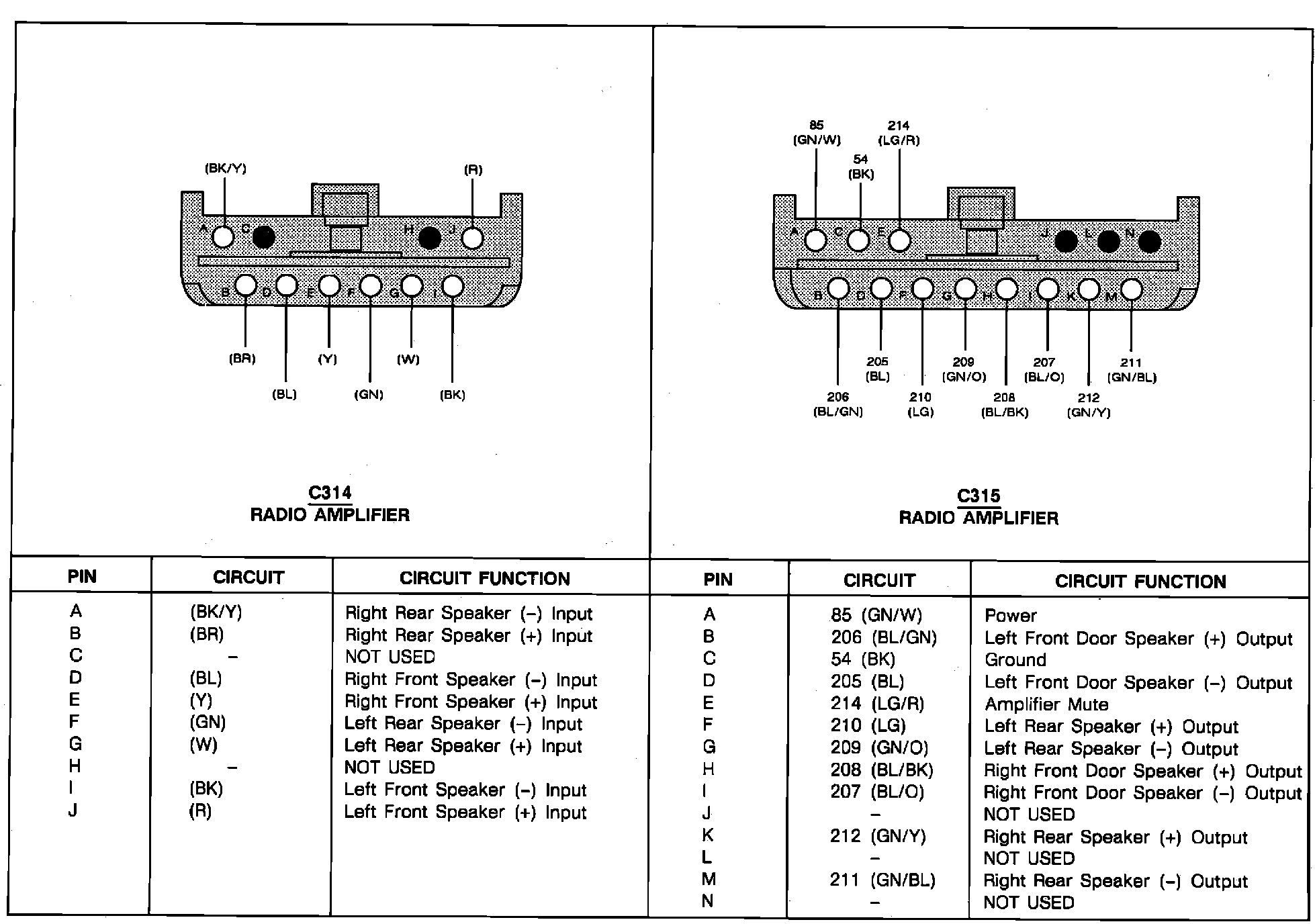

Radio Amplifier:
