Home
>>
Ford
>>
1993
>>
Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
>>
Driver's Power Window Switch
Driver's Power Window Switch

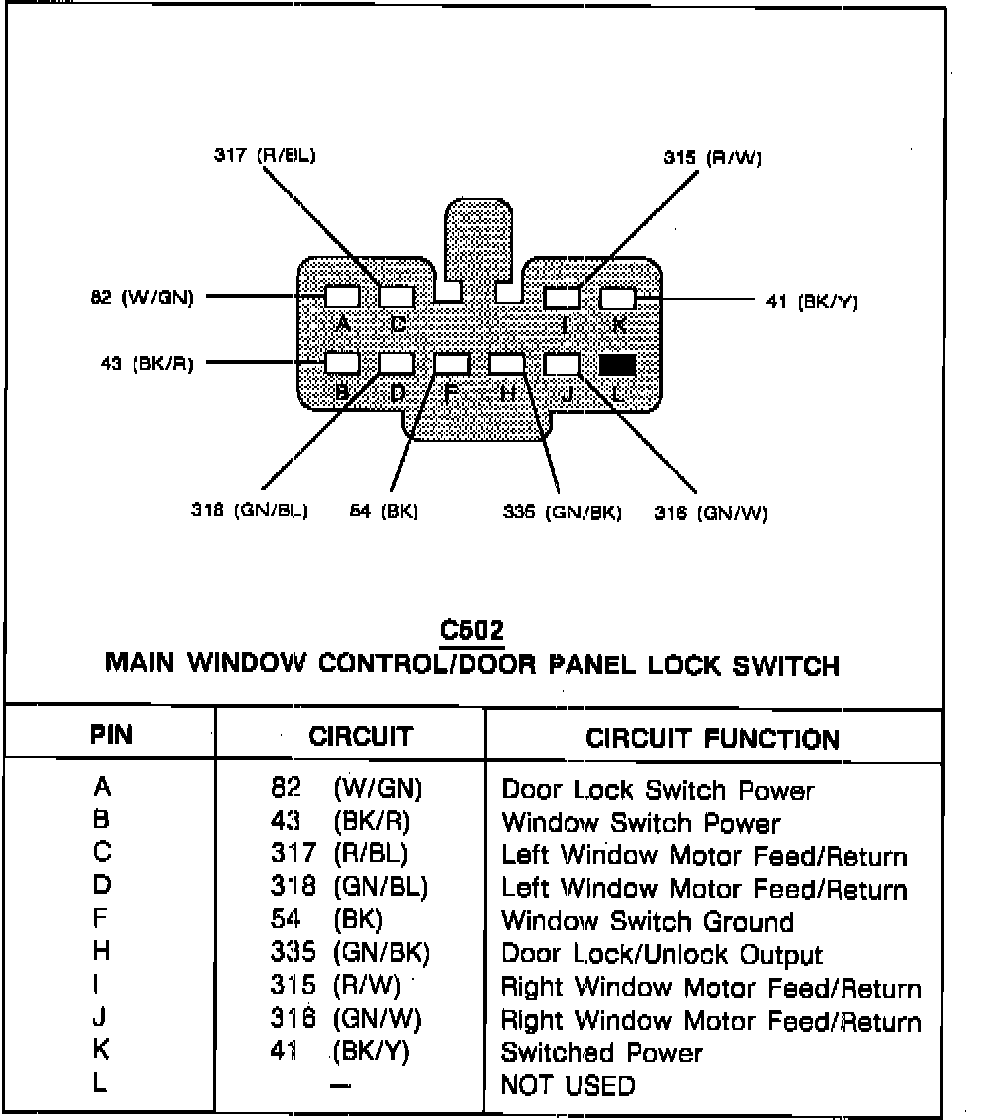

Main Window Control/Door Panel Lock Switch:
