Part 4 of 4

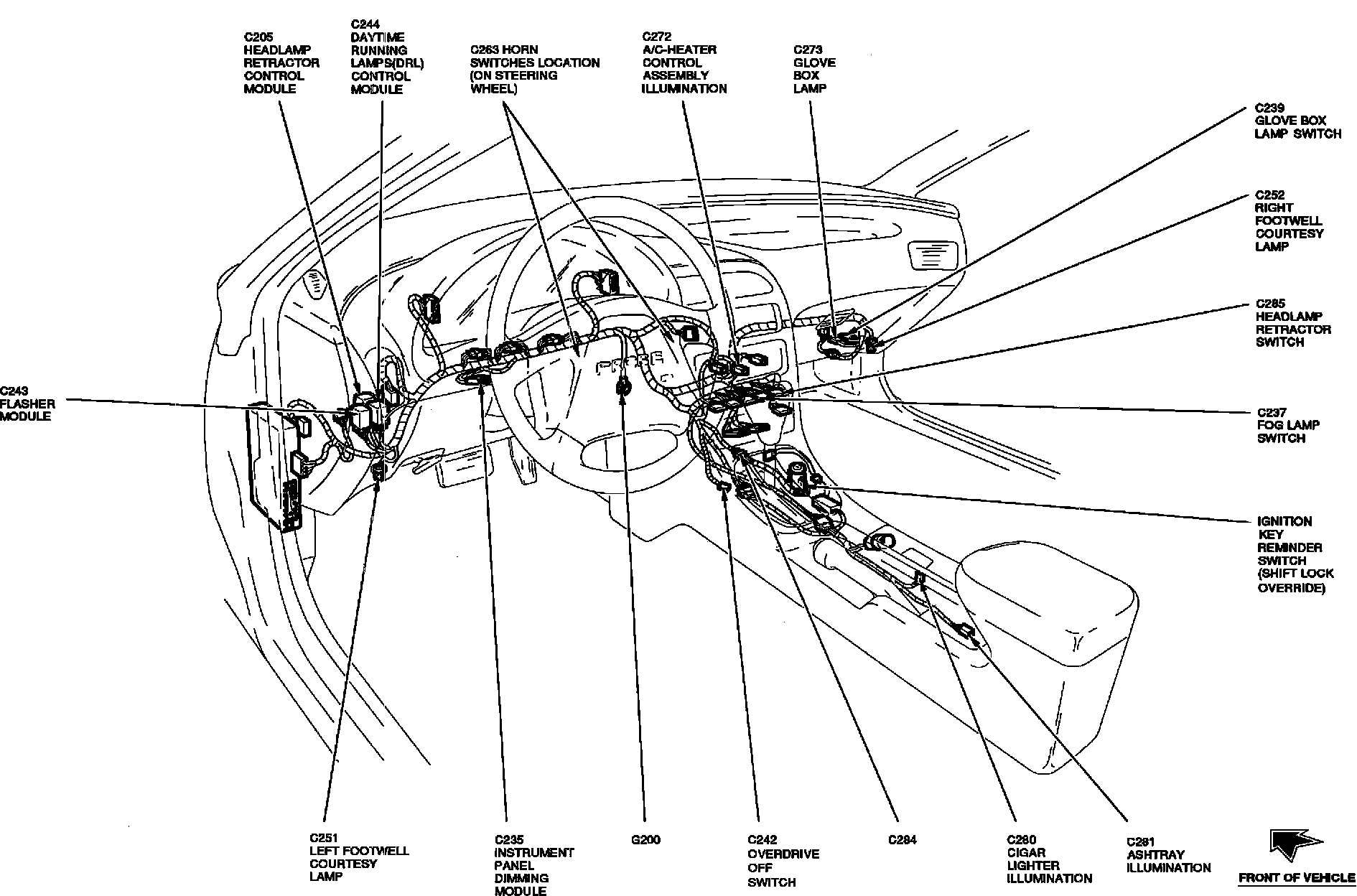

Component Locations:

A/C-HEATER CONTROL ASSEMBLY ILLUMINATION
ASHTRAY ILLUMINATION
CIGAR LIGHTER ILLUMINATION
DAYTIME RUNNING LAMPS (DRL) CONTROL MODULE
FLASHER MODULE
FOG LAMP SWITCH
GLOVE BOX LAMP
GLOVE BOX LAMP SWITCH
HEADLAMP RETRACTOR CONTROL MODULE
HEADLAMP RETRACTOR SWITCH
HORN SWITCHES LOCATION (ON STEERING WHEEL)
IGNITION KEY REMINDER SWITCH (SHIFT LOCK OVERRIDE)
INSTRUMENT PANEL DIMMING MODULE
LEFT FO0TWELL COURTESY LAMP
OVERDRIVE OFF SWITCH
RIGHT FOOTWELL COURTESY LAMP
