Home
>>
Ford
>>
1993
>>
Probe V6-152 2.5L DOHC
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Diagrams
>>

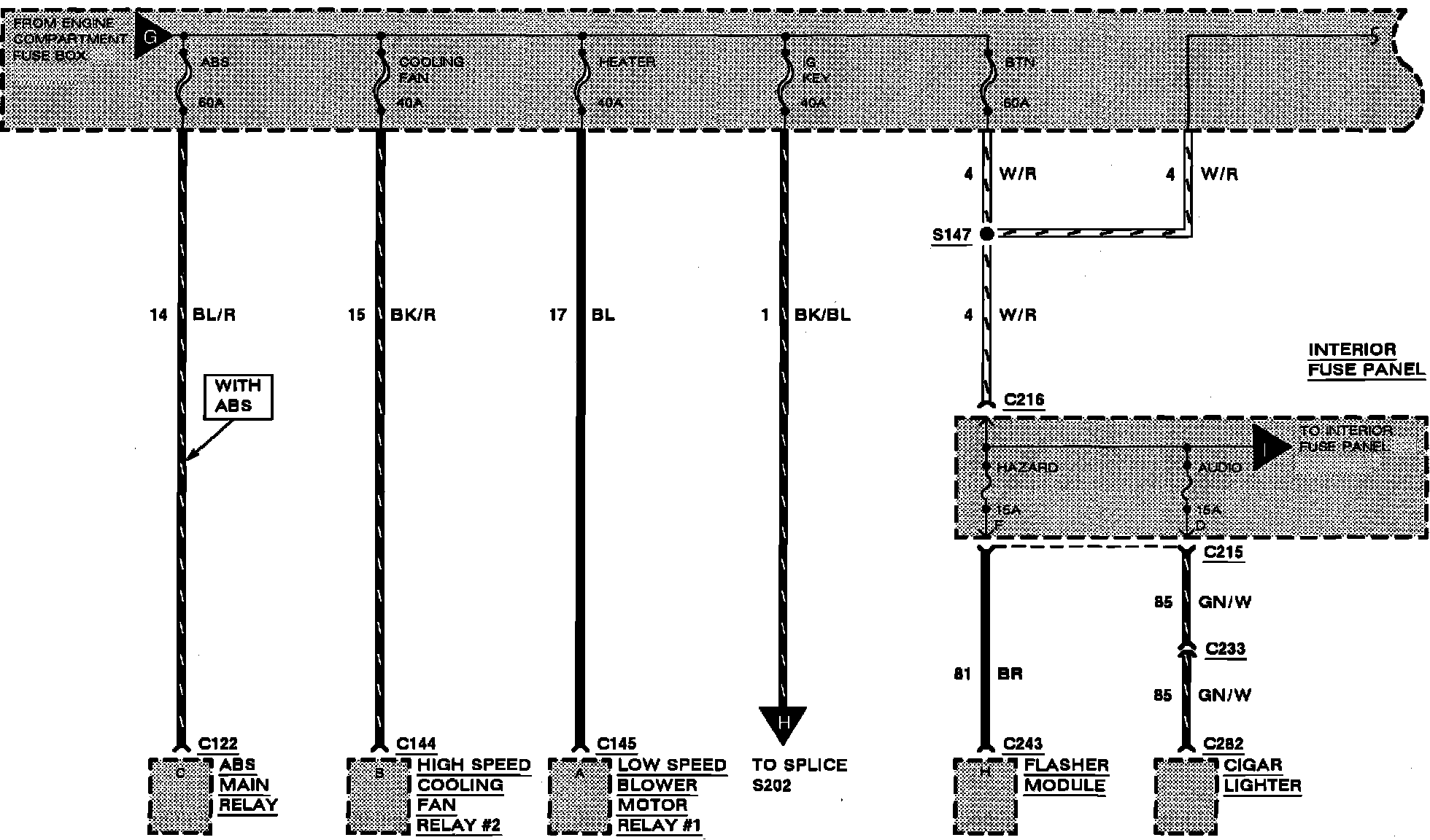

Electrical Diagrams
>>
Main Fuse Panel
>>
Ign Key
Ign Key
Power Distribution:
Power Distribution:
Power Distribution:
