Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Main Fuse Panel
Main Fuse Panel

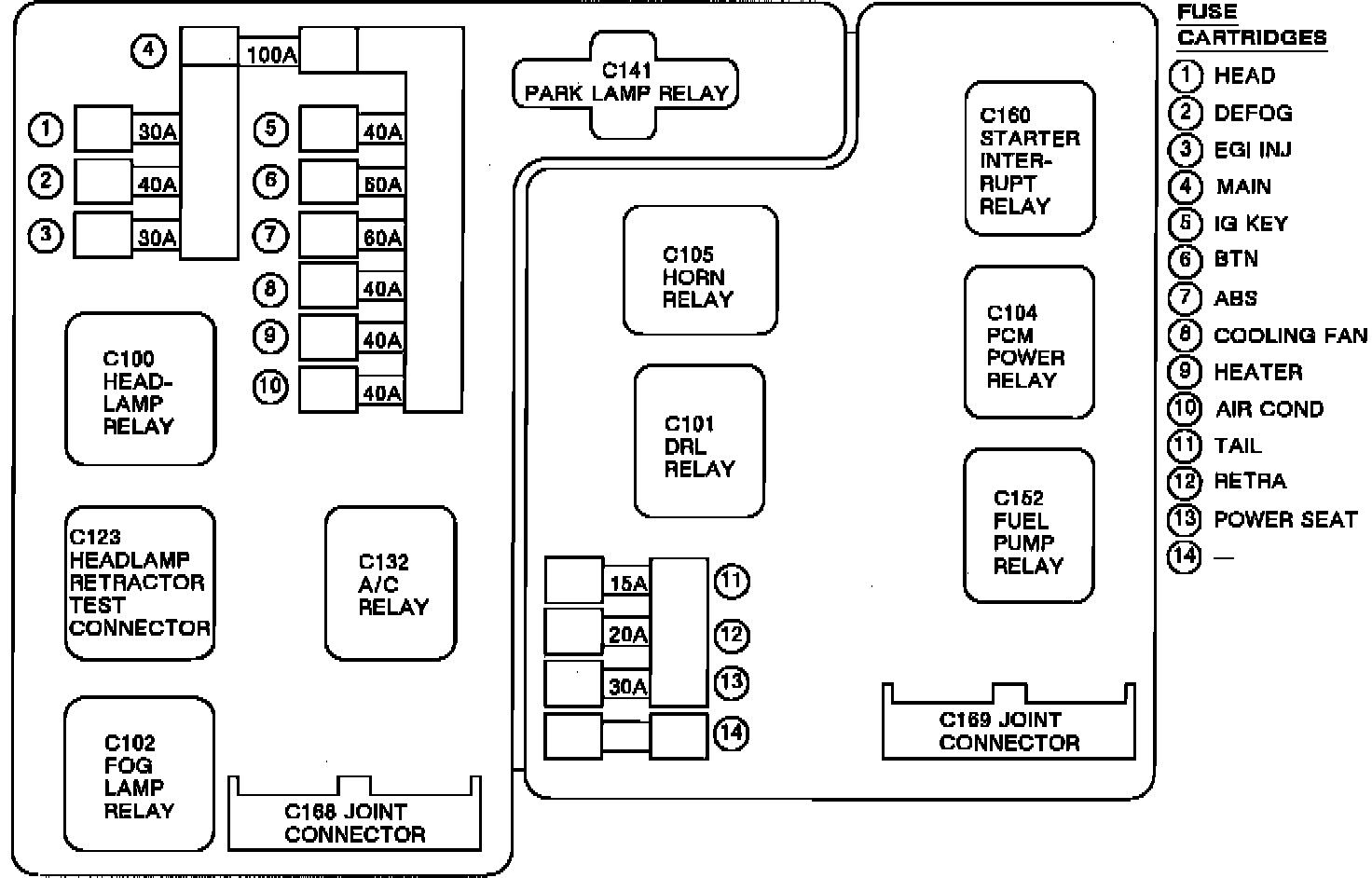

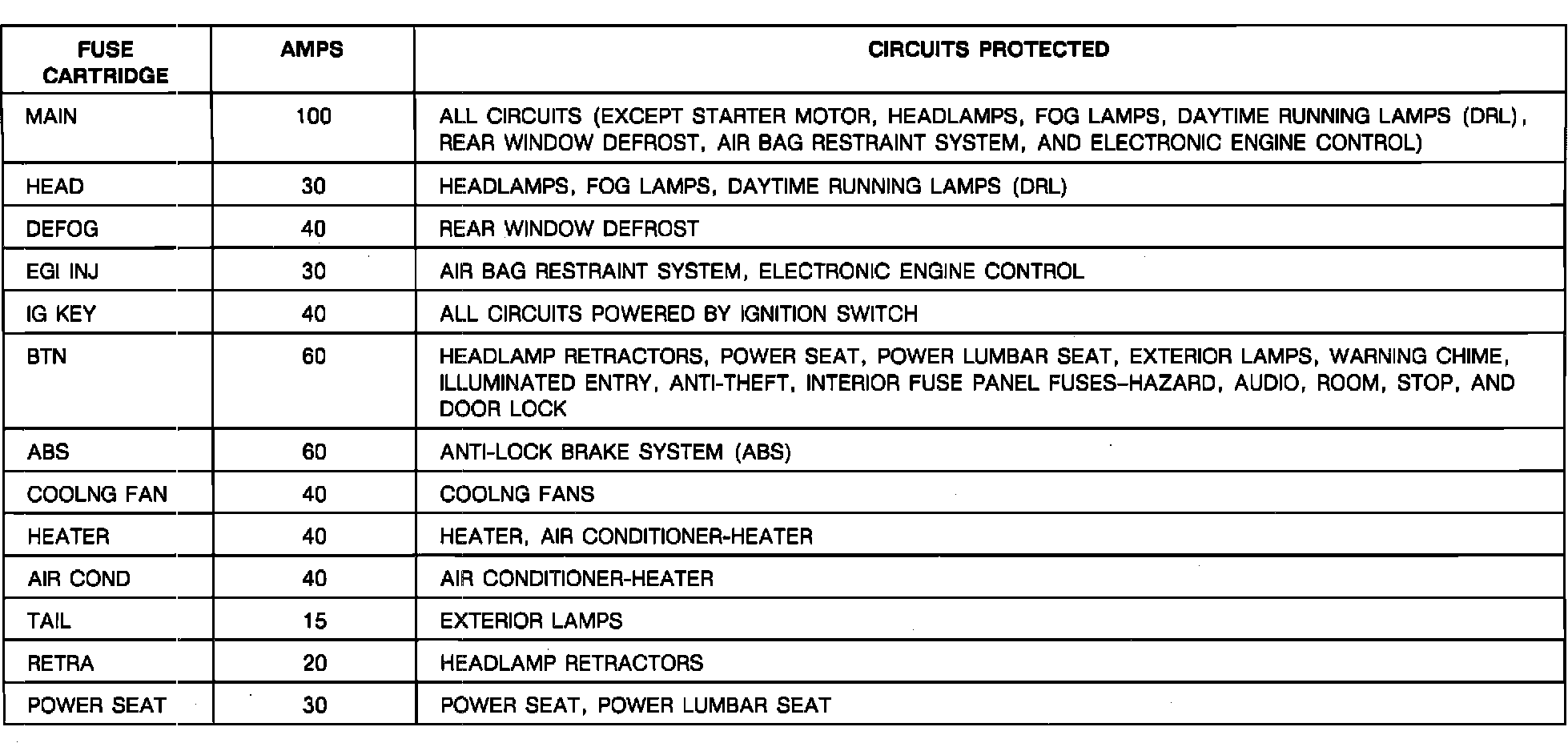

Engine Compartment Fuse Panel:
Circuit Protector:
