IAT - Intake Air Temperature Sensor
>>
IAT - Circuit Data and Sensor Resistance
IAT - Circuit Data and Sensor Resistance

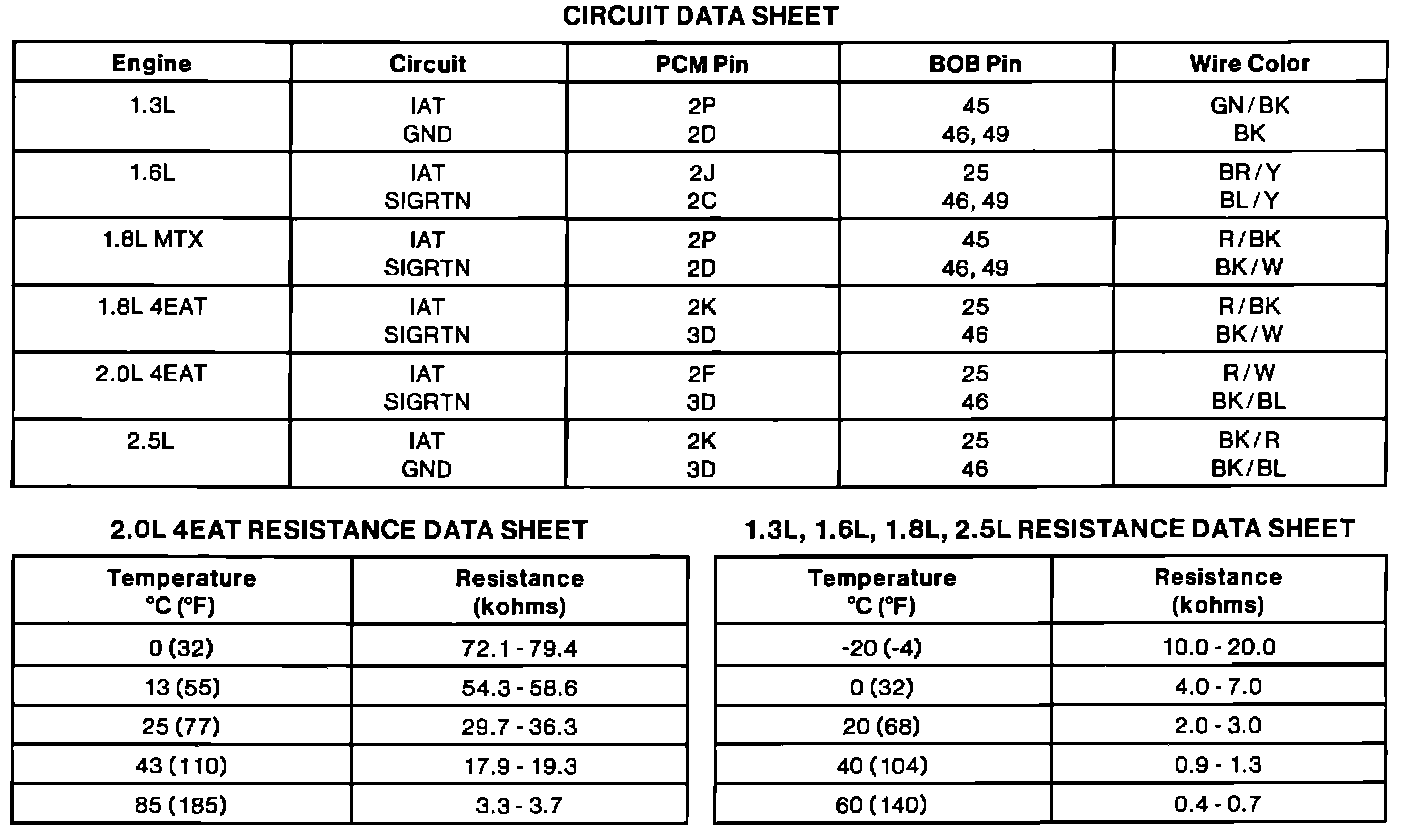

Pinpoint Test Circuit Data & Sensor Resistance:
