Home >> Ford >> 1993 >> Taurus V6-195 3.2L DOHC SHO >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views

Connector Views

Power Control Module (PCM):

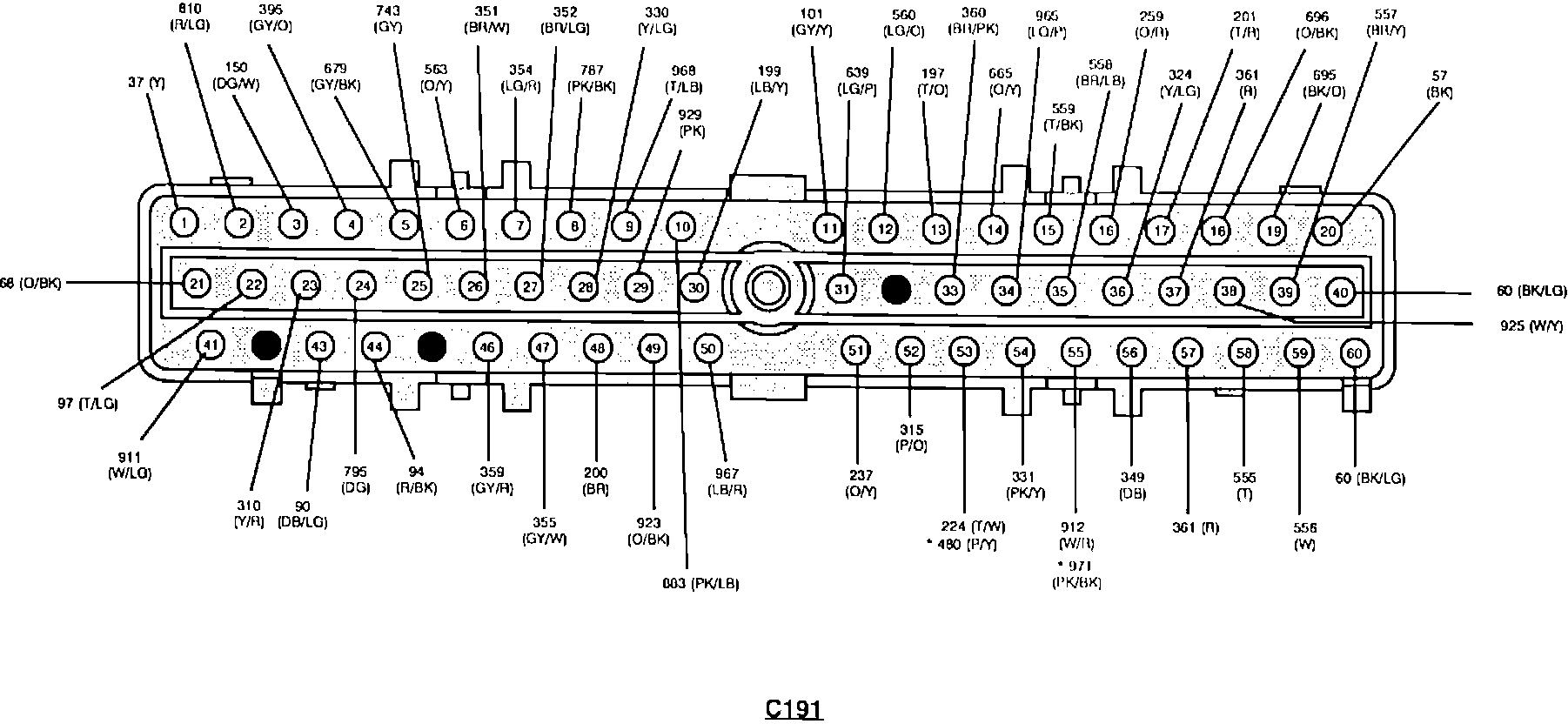

CONNECTOR VIEW


Power Control Module (PCM):

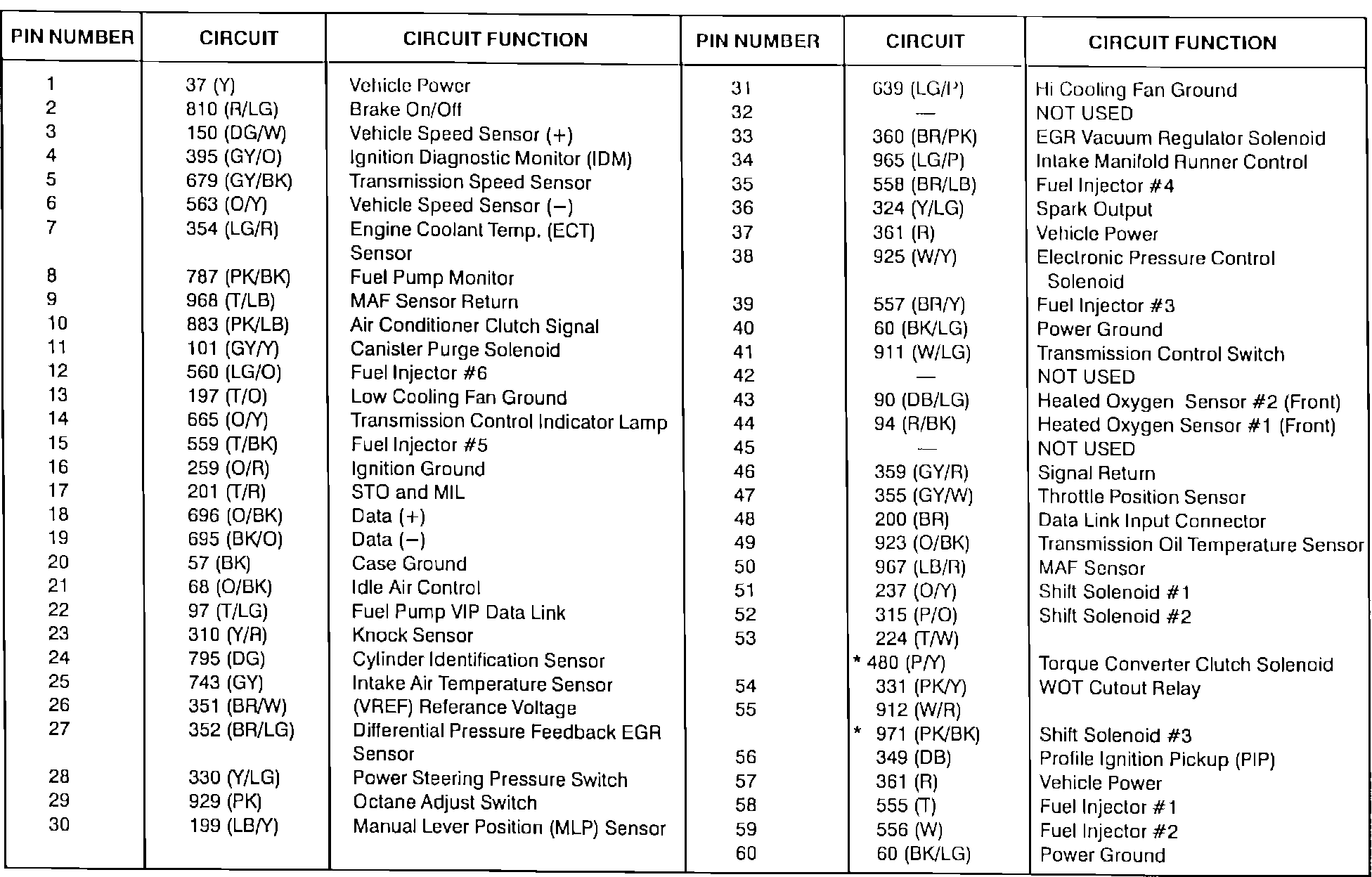

PINOUT IDENTIFICATION
