Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1994
>>
Aspire L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
>>

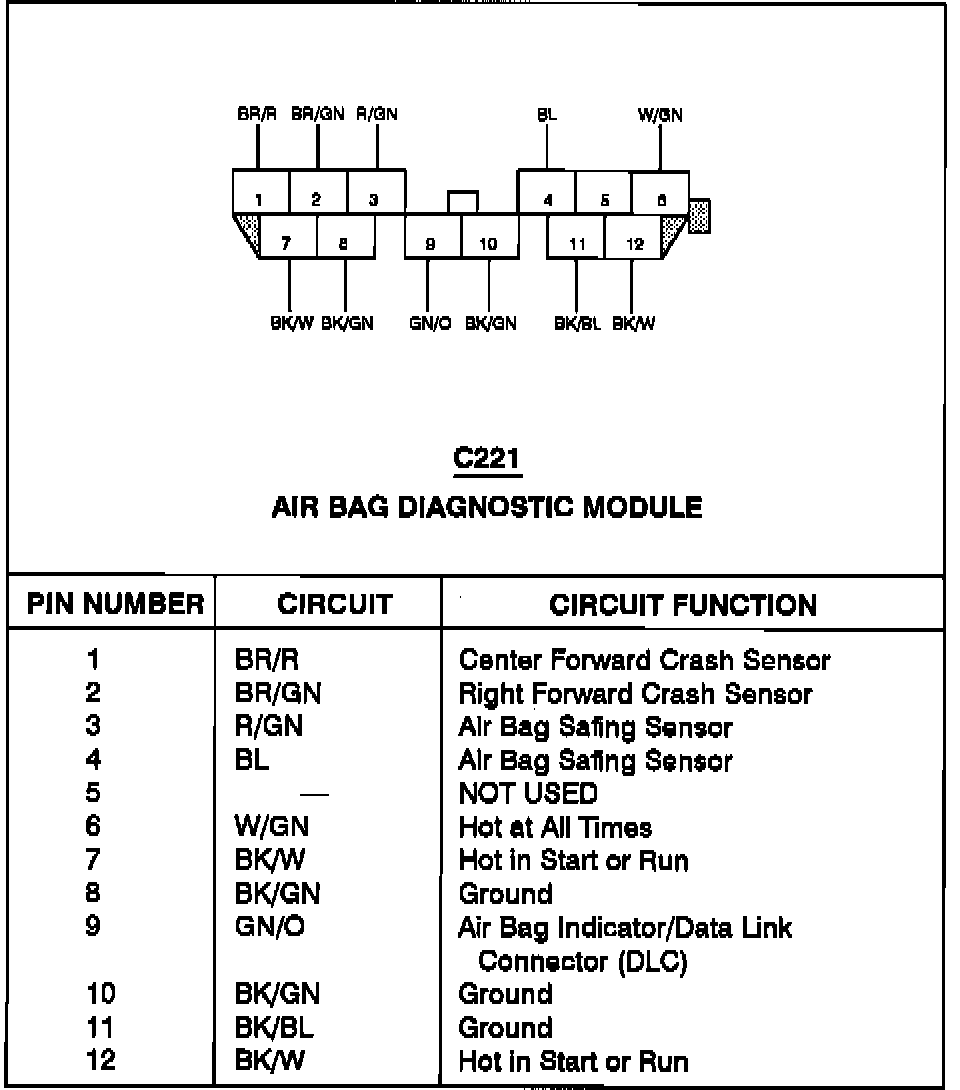

Vehicle Connector C221
Vehicle Connector C221
Air Bag Diagnostic Module:
