Engine Views

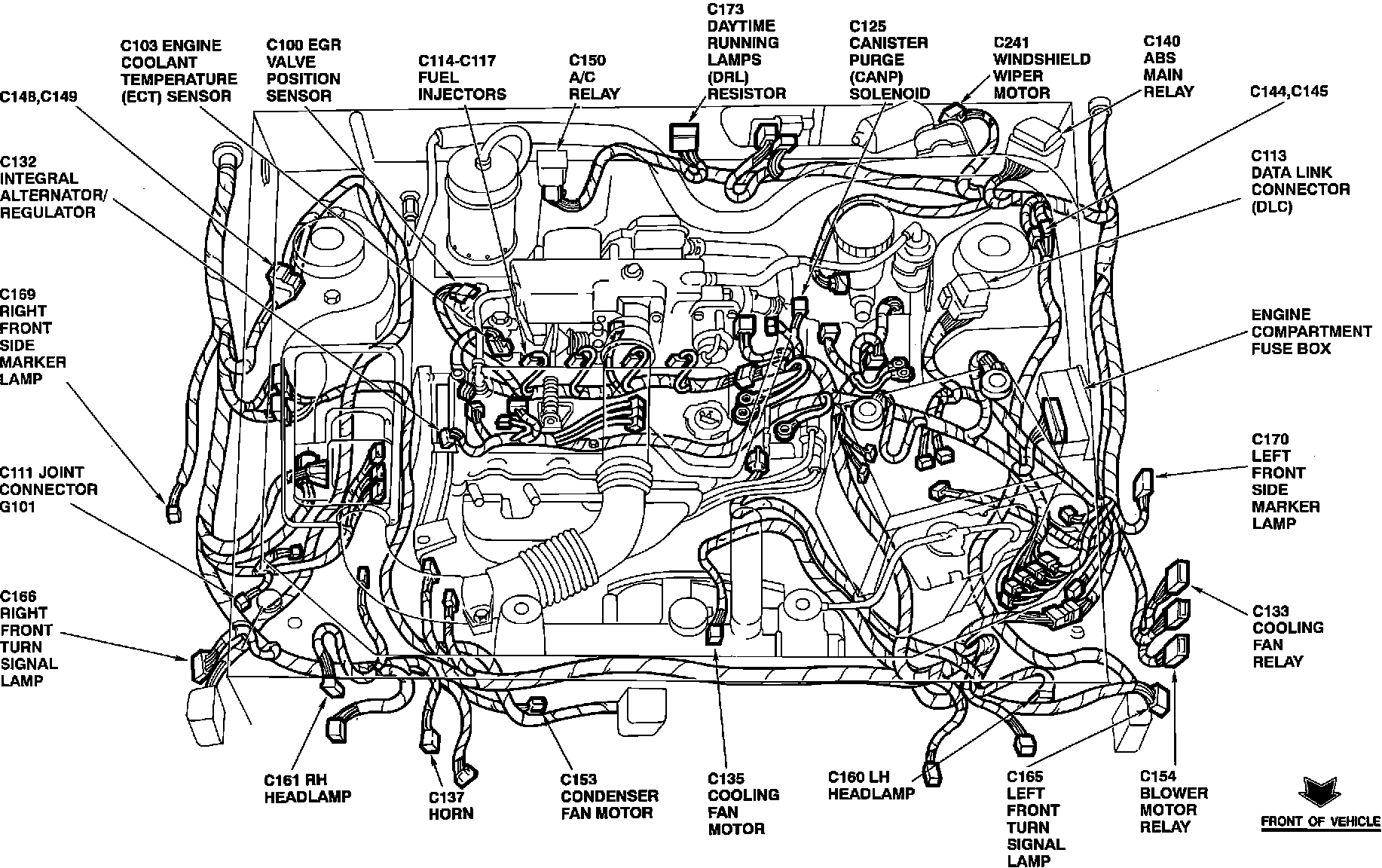

Component Locations:

A/C RELAY
ABS MAIN RELAY
BLOWER MOTOR RELAY
JOINT CONNECTOR (C111)
CANISTER PURGE (CANP) SOLENOID
CONDENSER FAN MOTOR
COOLING FAN MOTOR
COOLING FAN RELAY
DATA LINK CONNECTOR (DLC)
DAYTIME RUNNING LAMPS (DRL) RESISTOR
EGR VALVE POSITION SENSOR
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
FUEL INJECTORS
HORN
INTEGRAL ALTERNATOR/REGULATOR
LEFT FRONT SIDE MARKER LAMP
LEFT FRONT TURN SIGNAL LAMP
LH HEADLAMP
RH HEADLAMP
RIGHT FRONT SIDE MARKER LAMP
RIGHT FRONT TURN SIGNAL LAMP
WINDSHIELD WIPER MOTOR

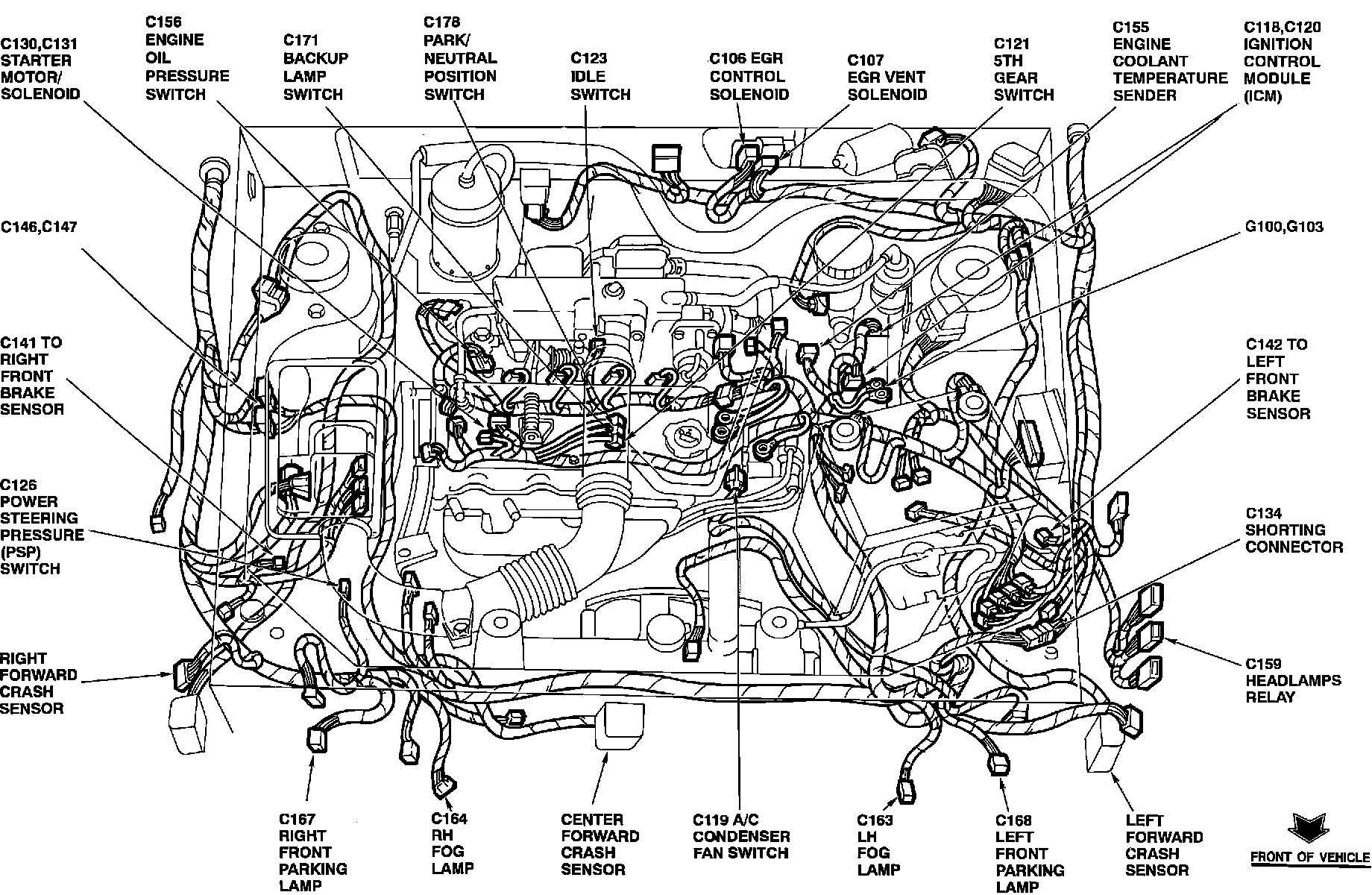

Component Locations:

5th GEAR SWITCH
A/C CONDENSER FAN SWITCH
BACKUP LAMP SWITCH
CENTER FORWARD CRASH SENSOR
EGR CONTROL SOLENOID
EGR VENT SOLENOID
ENGINE COOLANT TEMPERATURE SENDER
ENGINE OIL PRESSURE SWITCH
HEADLAMPS RELAY
IDLE SWITCH
IGNITION CONTROL MODULE (ICM)
LEFT FORWARD CRASH SENSOR
LEFT FRONT PARKING LAMP
LH FOG LAMP
PARK/NEUTRAL POSITION SWITCH
POWER STEERING PRESSURE (PSP) SWITCH
RH FOG LAMP
RIGHT FORWARD CRASH SENSOR
RIGHT FRONT PARKING LAMP
SHORTING CONNECTOR
STARTER MOTOR/SOLENOID
TO LEFT FRONT BRAKE SENSOR
TO RIGHT FRONT BRAKE SENSOR

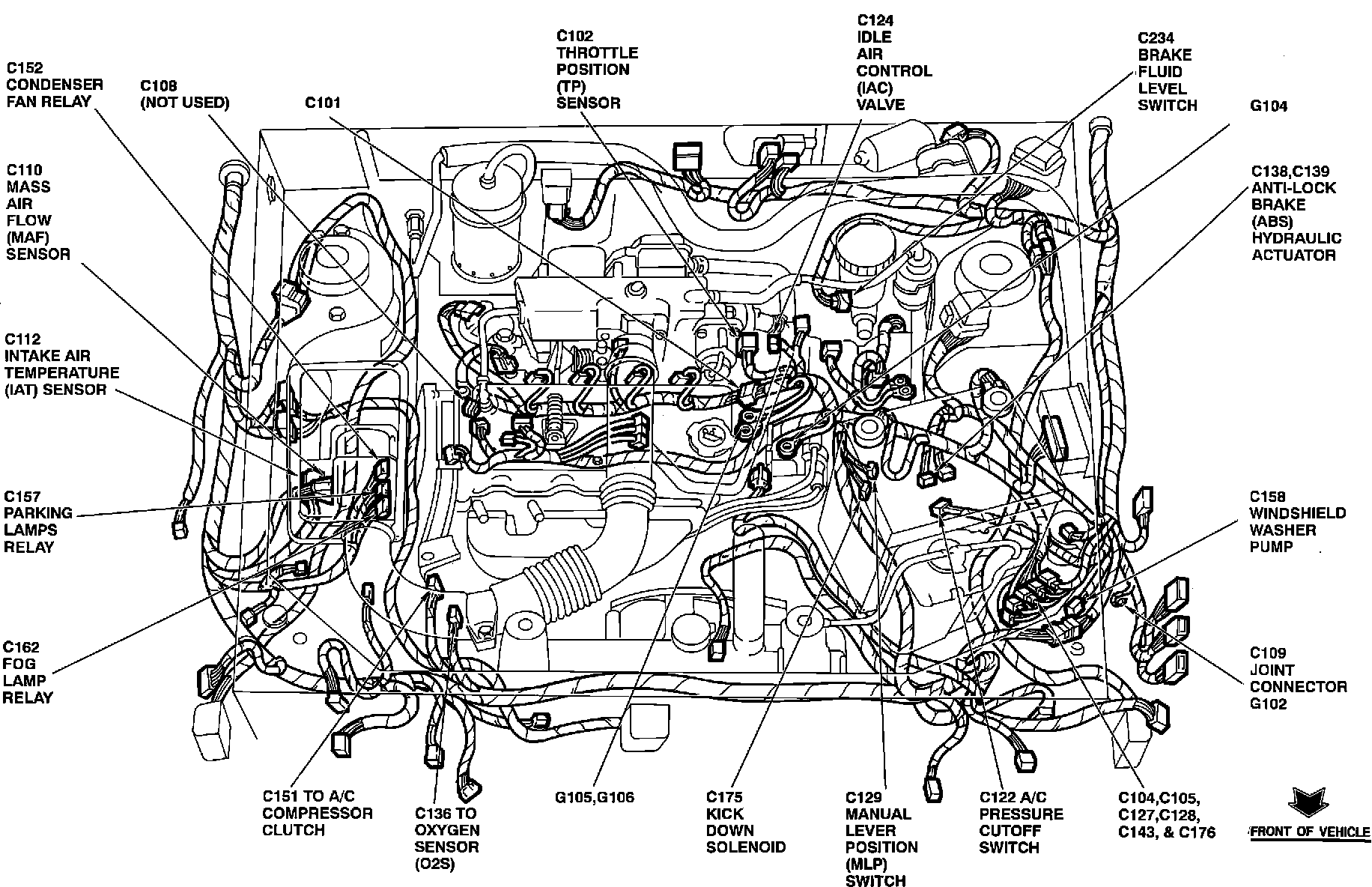

Component Locations:

A/C PRESSURE CUTOFF SWITCH
ANTI-LOCK BRAKE (ABS) HYDRAULIC ACTUATOR
BRAKE FLUID LEVEL SWITCH
CONDENSER FAN RELAY
FOG LAMP RELAY
IDLE AIR CONTROL (IAC) VALVE
INTAKE AIR TEMPERATURE (IAT) SENSOR
JOINT CONNECTOR G102
KICK DOWN SOLENOID
MANUAL LEVER POSITION (MLP) SWITCH
MASS AIR FLOW (MAF) SENSOR
PARKING LAMPS RELAY
THROTTLE POSITION (TP) SENSOR
TO A/C COMPRESSOR CLUTCH
TO OXYGEN SENSOR (O2S)
WINDSHIELD WASHER PUMP
