Pipe Shield

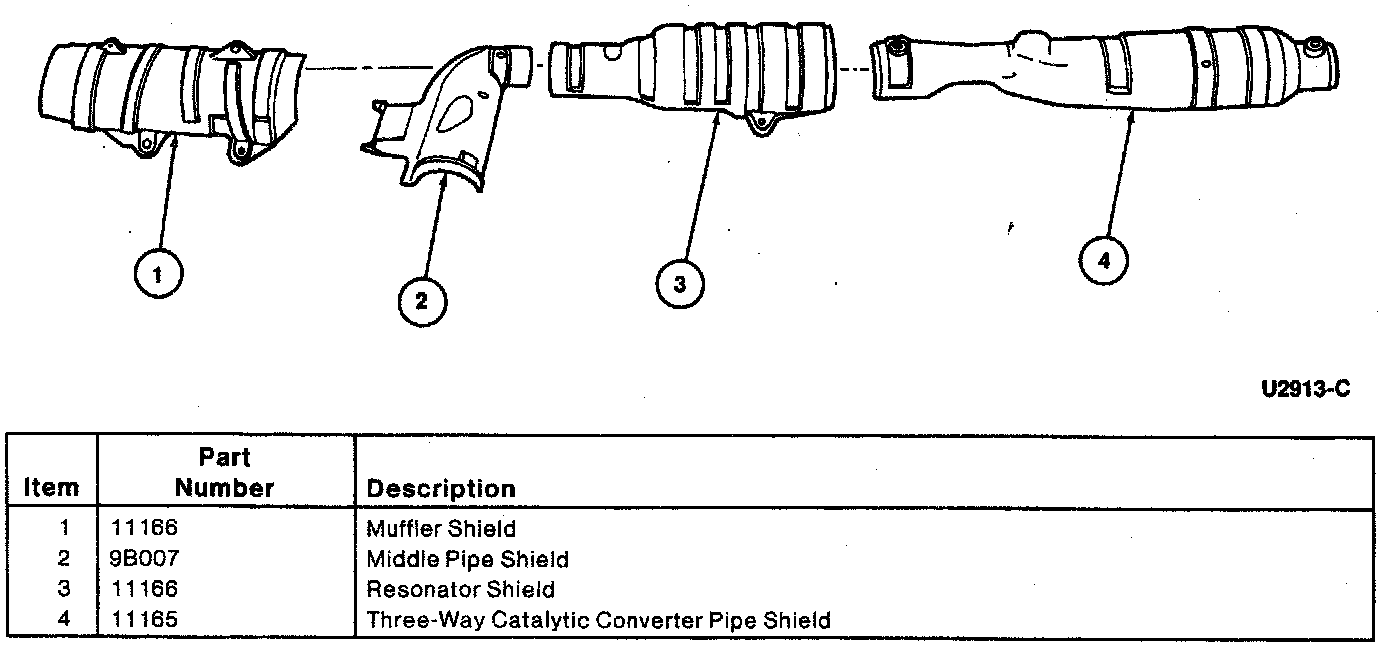

Exhaust Heat Shields:

REMOVAL
^ Remove the four mounting bolts and rotate the exhaust shield around the three-way catalytic converter pipe to remove.

INSTALLATION
^ To install, reverse the removal procedure.
