Home >> Ford >> 1994 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> I/P Fuse Panel

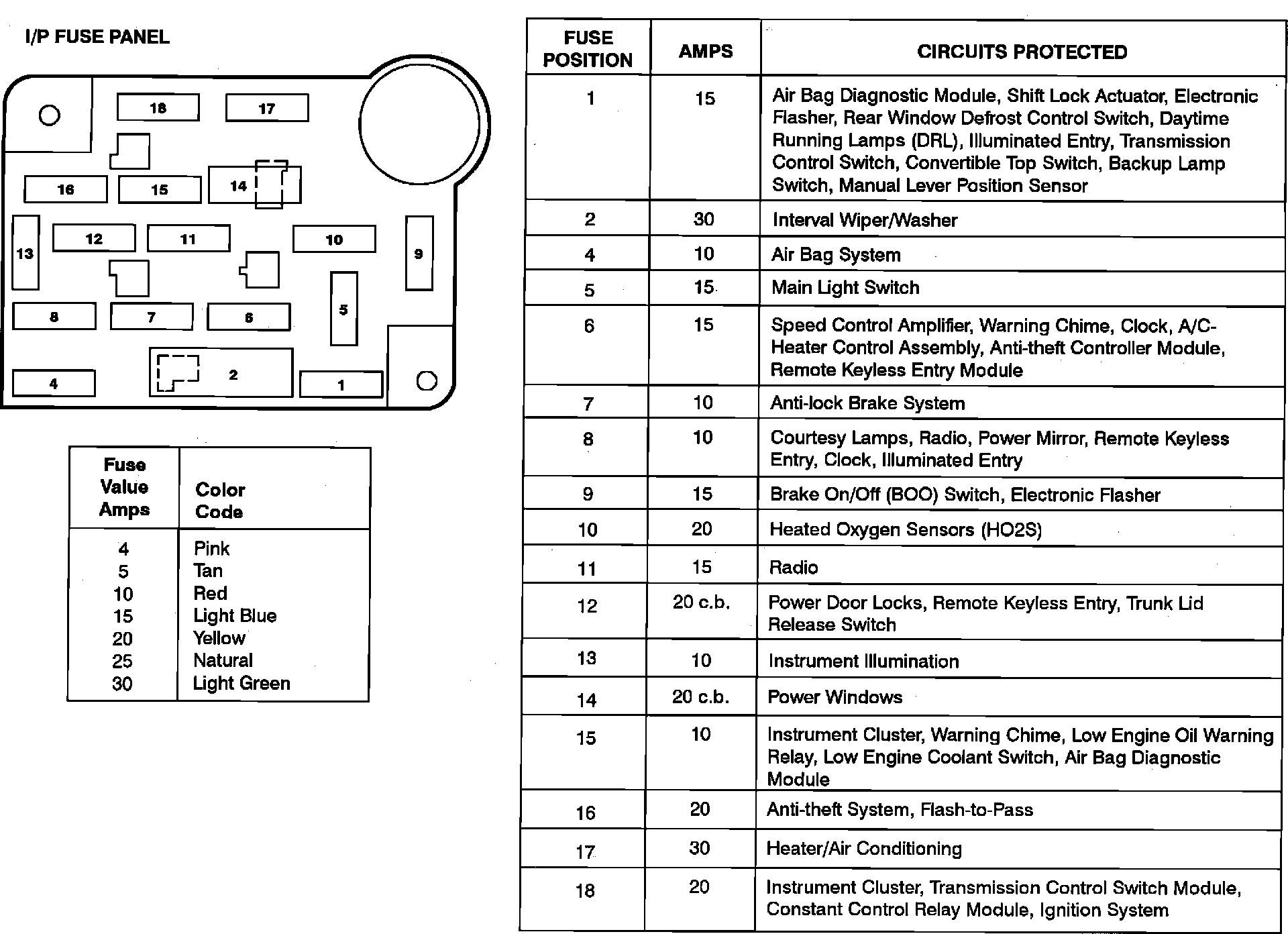

I/P Fuse Panel

Instrument Panel Fuse Panel/Circuit Protector:
