Fuse METER

Fuse METER - Protects the following Circuits :
- Shift Lock
- Rear Window Defrost
- Heater
- Air Conditioner-Heater
- Instrument Cluster
- Electronic automatic Transaxle
- Backup Lamps
- Keyless Entry
- Power Antenna
- Power Windows
- Warning Chime
- Illuminated Entry
- Anti-Theft

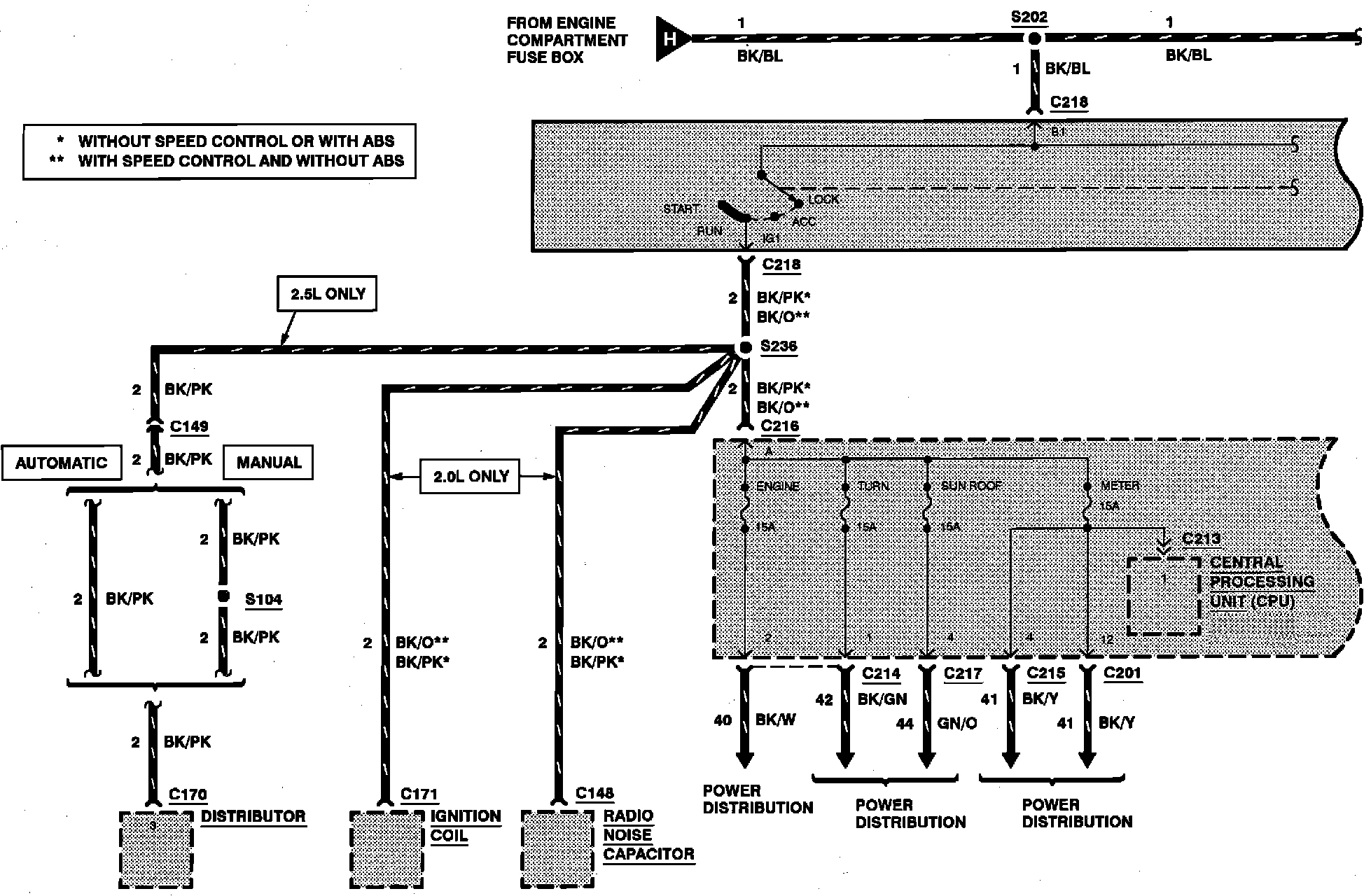

Power Distribution:




Power Distribution:
