Home
>>
Ford
>>
1994
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Radio/Stereo
>>
Base Radio Only
Base Radio Only

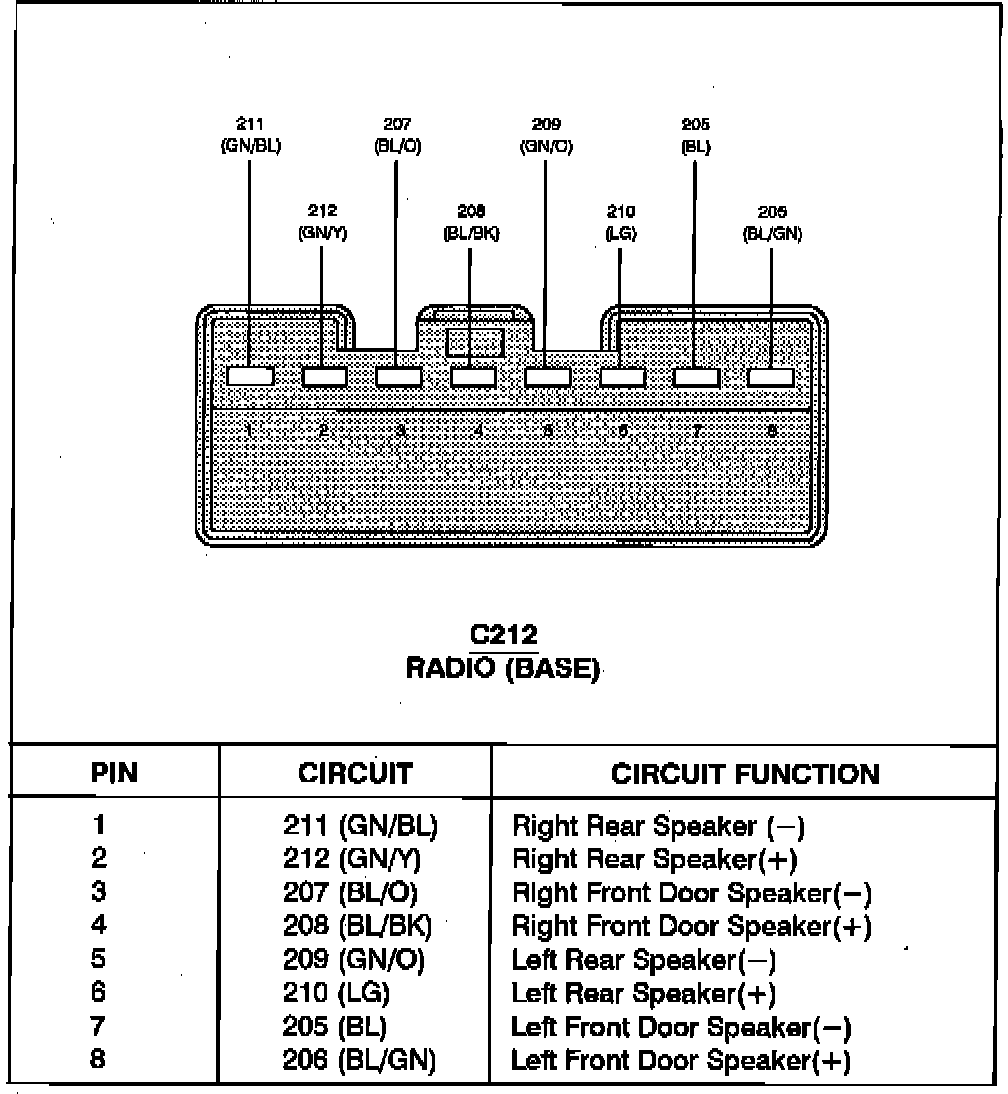

Radio:
