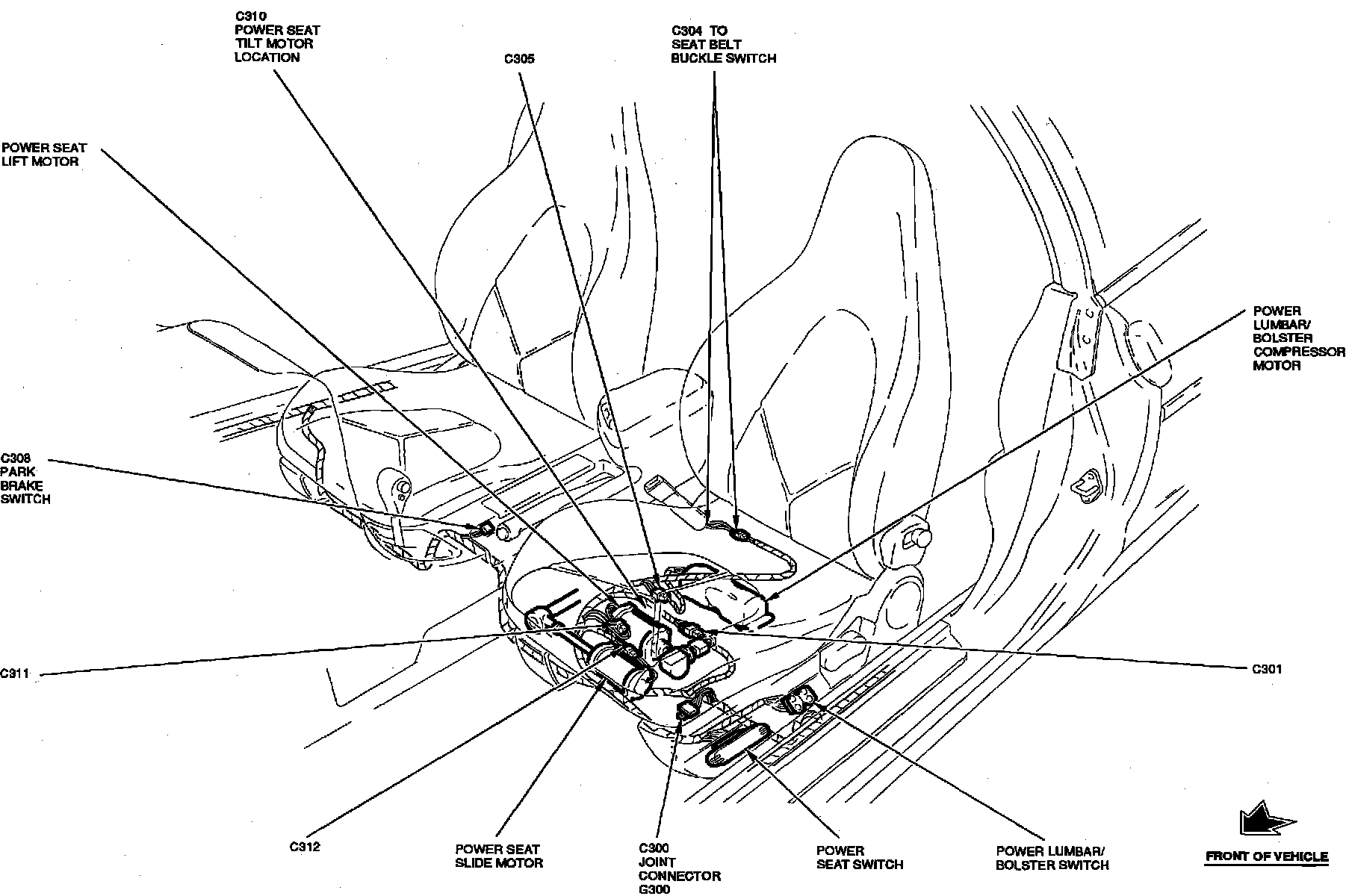

Seat Assemblies View

Component Locations:

PARK BRAKE SWITCH
POWER LUMBAR/BOLSTER COMPRESSOR MOTOR
POWER LUMBAR/BOLSTER SWITCH
POWER SEAT LIFT MOTOR
POWER SEAT SLIDE MOTOR
POWER SEAT SWITCH
POWER SEAT TILT MOTOR
SEAT BELT BUCKLE SWITCH
