Home
>>
Ford
>>
1994
>>
Thunderbird V6-232 3.8L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>

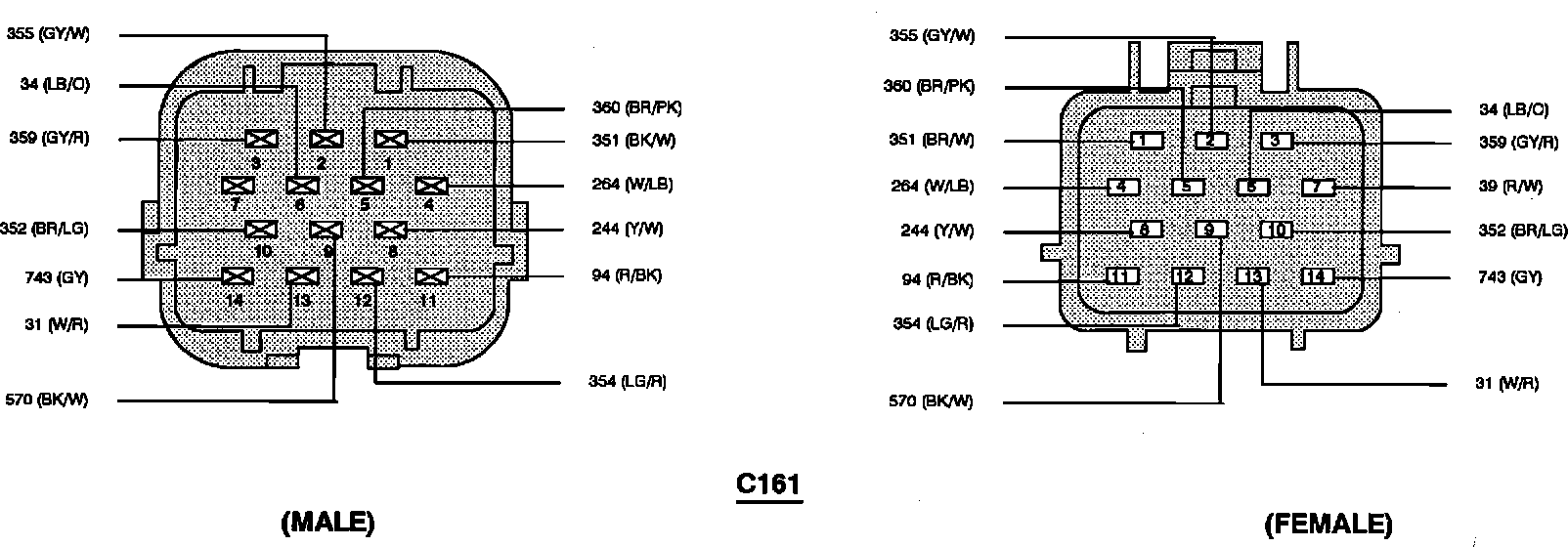

C161
C161
Connector Face Identification:
Connector Face Identification:
