Crown Victoria V8-281 4.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
>>
Air Bag Control Module
Air Bag Control Module

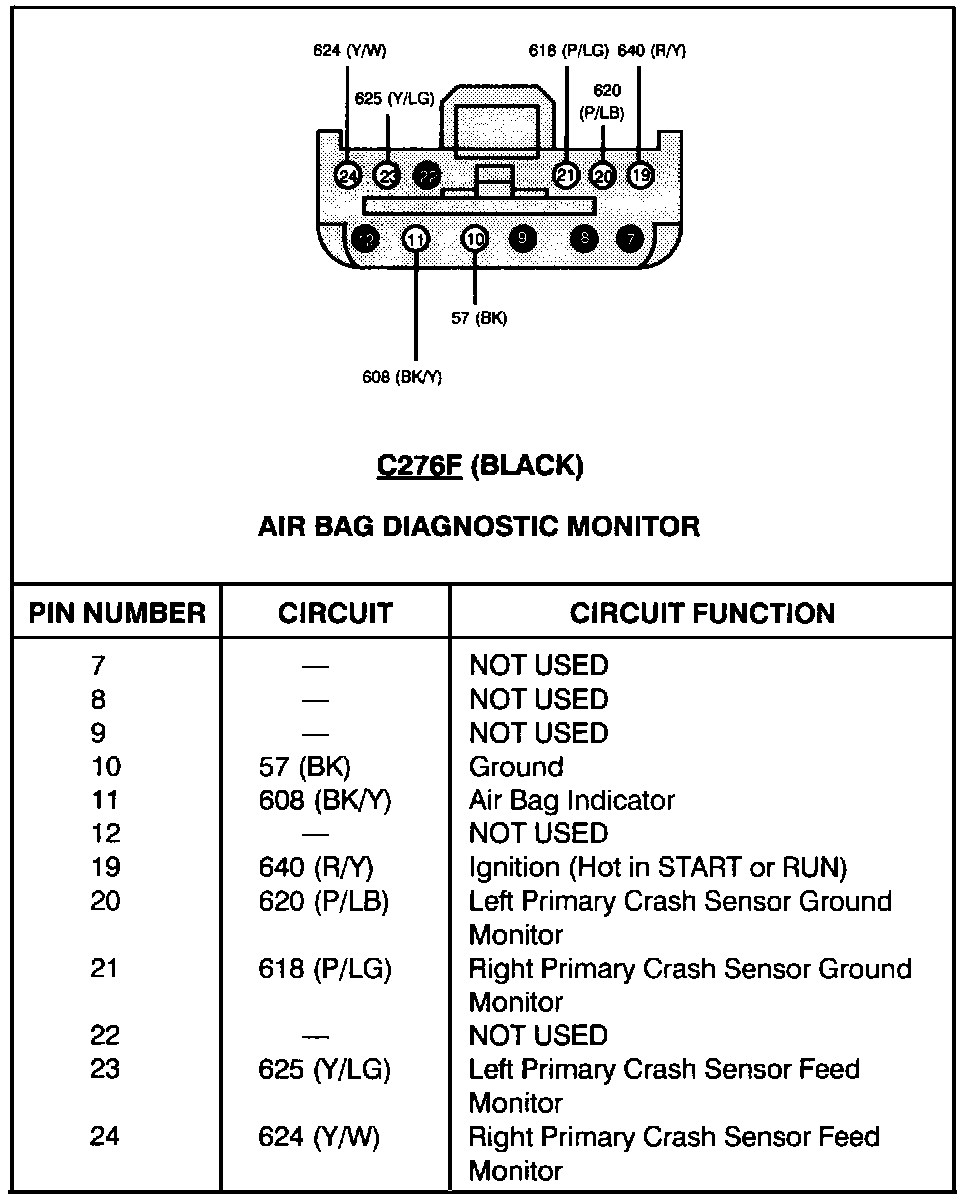

Air Bags Diagnostic Monitor (C276F):

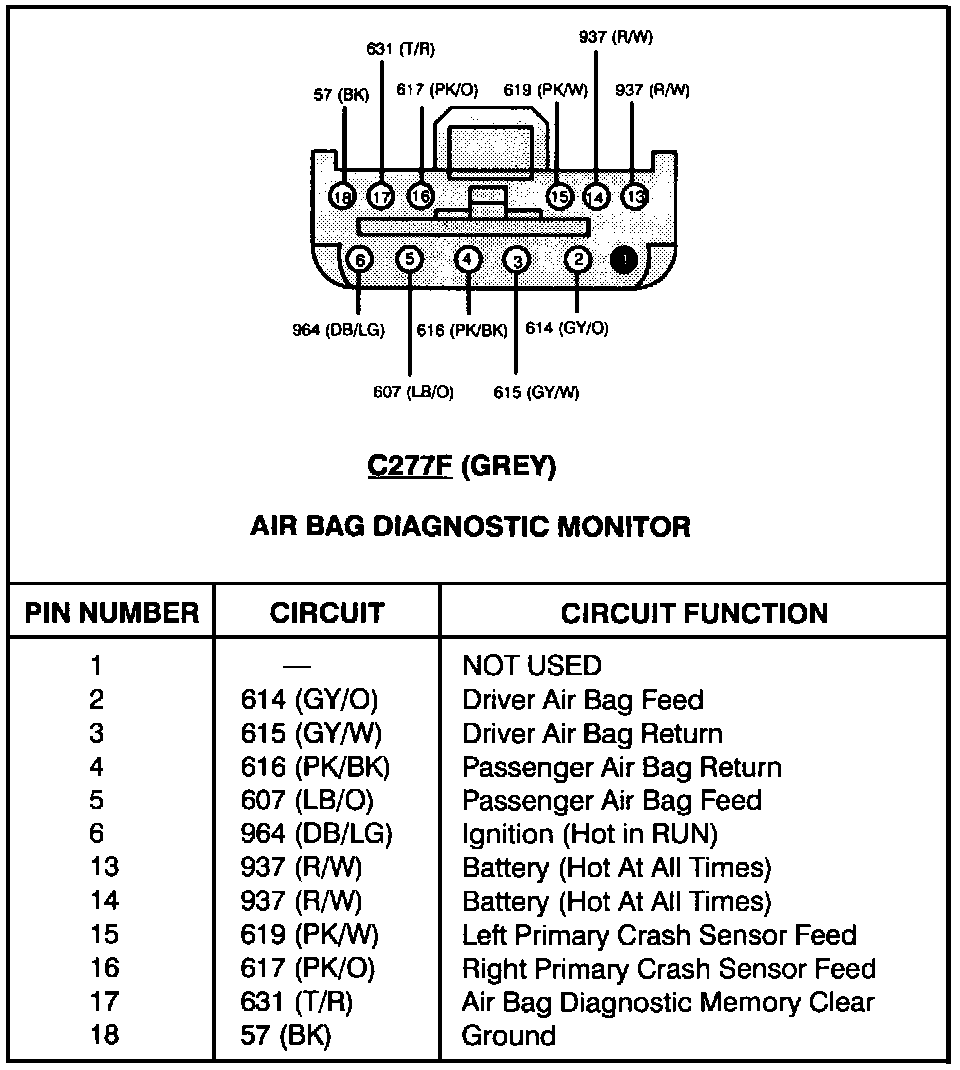

Air Bags Diagnostic Monitor (C277F):
