Home >> Ford >> 1995 >> Crown Victoria V8-281 4.6L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Switch

Windshield Washer Switch

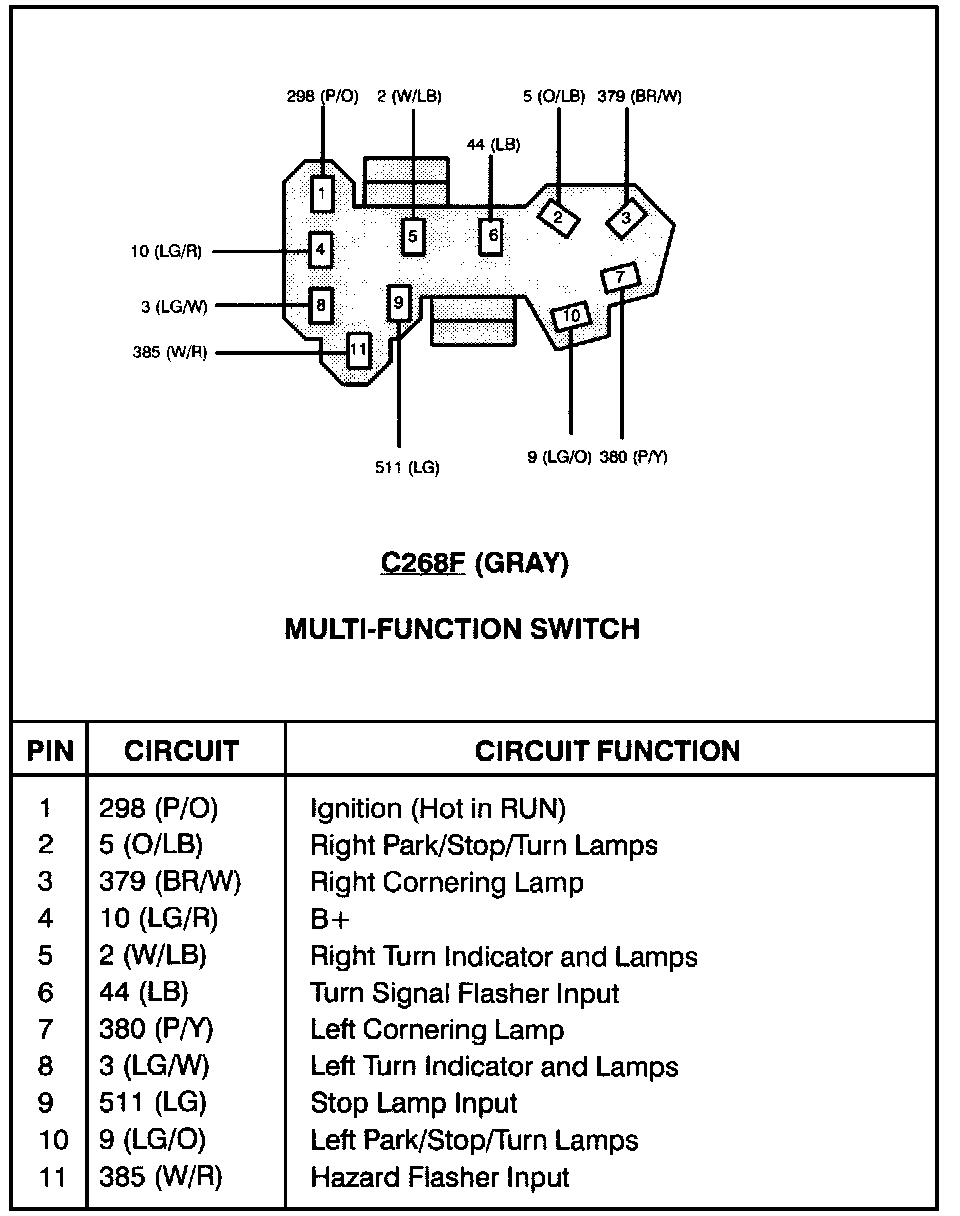

Multi-Function Switch (C268F):

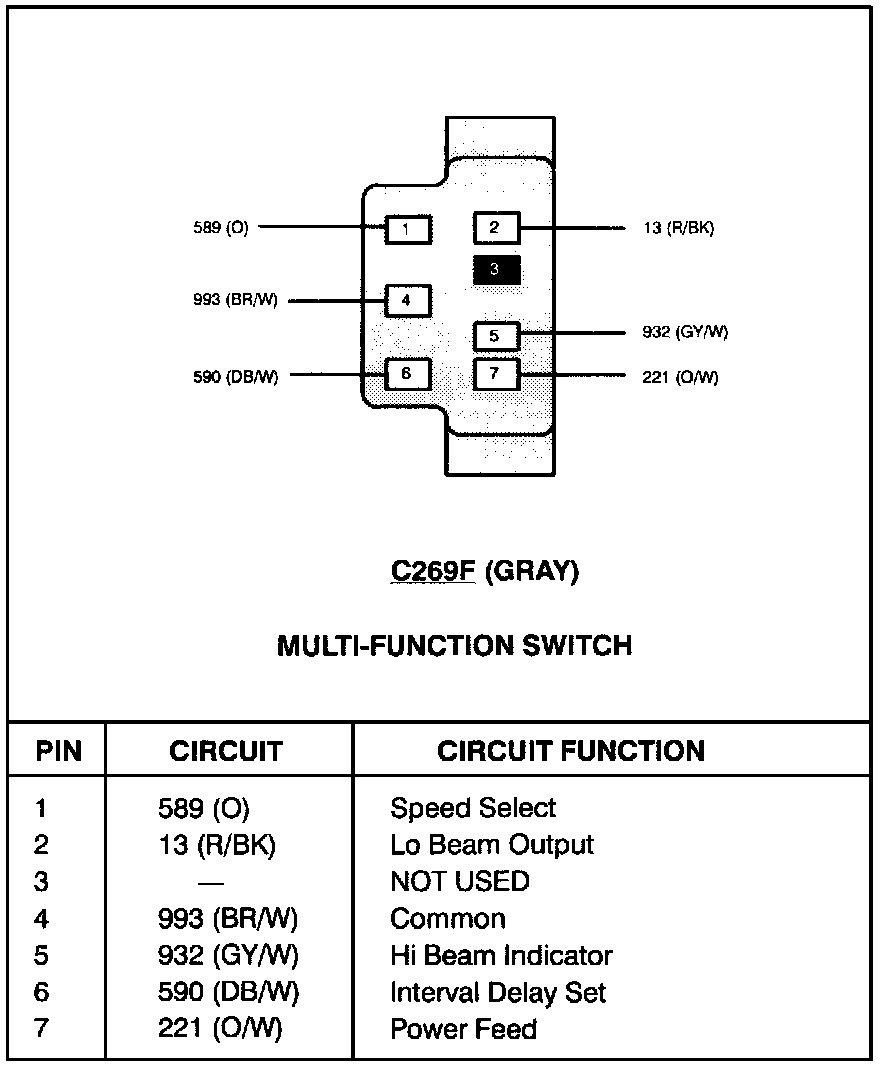

Multi-Function Switch (C269F):
