Engine Views

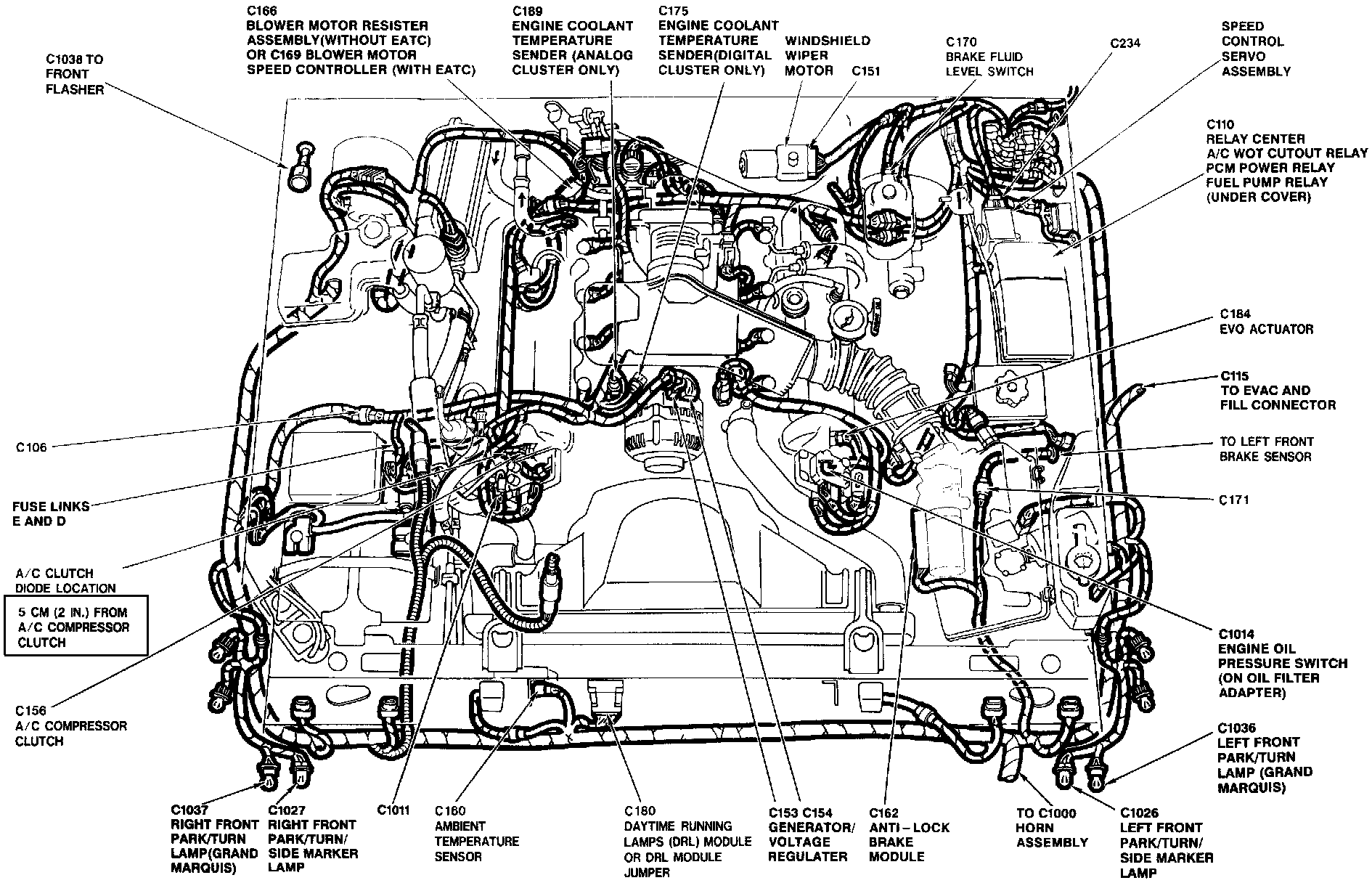

Engine View:

A/C CLUTCH DIODE
A/C COMPRESSOR CLUTCH
A/C WIDE OPEN THROTTLE CUTOUT RELAY
AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE MODULE
BLOWER MOTOR RESISTOR ASSEMBLY
BLOWER MOTOR SPEED CONTROLLER
BRAKE FLUID LEVEL SWITCH
DAYTIME RUNNING LAMPS MODULE
DAYTIME RUNNING LAMPS MODULE JUMPER
ELECTRONIC VARIABLE ORIFICE ACTUATOR
EVACUATE AND FILL CONNECTOR
ENGINE COOLANT TEMPERATURE SENDER
ENGINE OIL PRESSURE SWITCH
FRONT FLASHER
FUEL PUMP RELAY
FUSE LINKS D
FUSE LINKS E
GENERATOR/VOLTAGE REGULATOR
HORN ASSEMBLY
LEFT FRONT BRAKE SENSOR
LEFT FRONT PARK/TURN/SIDE MARKER LAMP
PCM POWER RELAY
RELAY CENTER
RIGHT FRONT PARK/TURN/SIDE MARKER LAMP
SPEED CONTROL SERVO ASSEMBLY
WINDSHIELD WIPER MOTOR

Engine View:

A/C HIGH PRESSURE CUTOUT SWITCH
CAMSHAFT POSITION SENSOR
COOLING FAN
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT FUSE BOX
ENGINE COOLANT TEMPERATURE SENSOR
FUEL INJECTORS
FUEL PUMP PRIME CONNECTOR
IGNITION CONTROL MODULE
INTAKE AIR TEMPERATURE SENSOR
LEFT HEATED OXYGEN SENSOR #1
LEFT IGNITION COIL
LEFT RADIO NOISE CAPACITOR
MASS AIR FLOW SENSOR
OCTANE ADJUST PLUG
POWERTRAIN CONTROL MODULE
RIGHT FRONT BRAKE SENSOR
RIGHT HEATED OXYGEN SENSOR #1
RIGHT IGNITION COIL
RIGHT RADIO NOISE CAPACITOR
SPARK OUTPUT CHECK CONNECTOR
STARTER MOTOR/SOLENOID
THROTTLE POSITION SENSOR

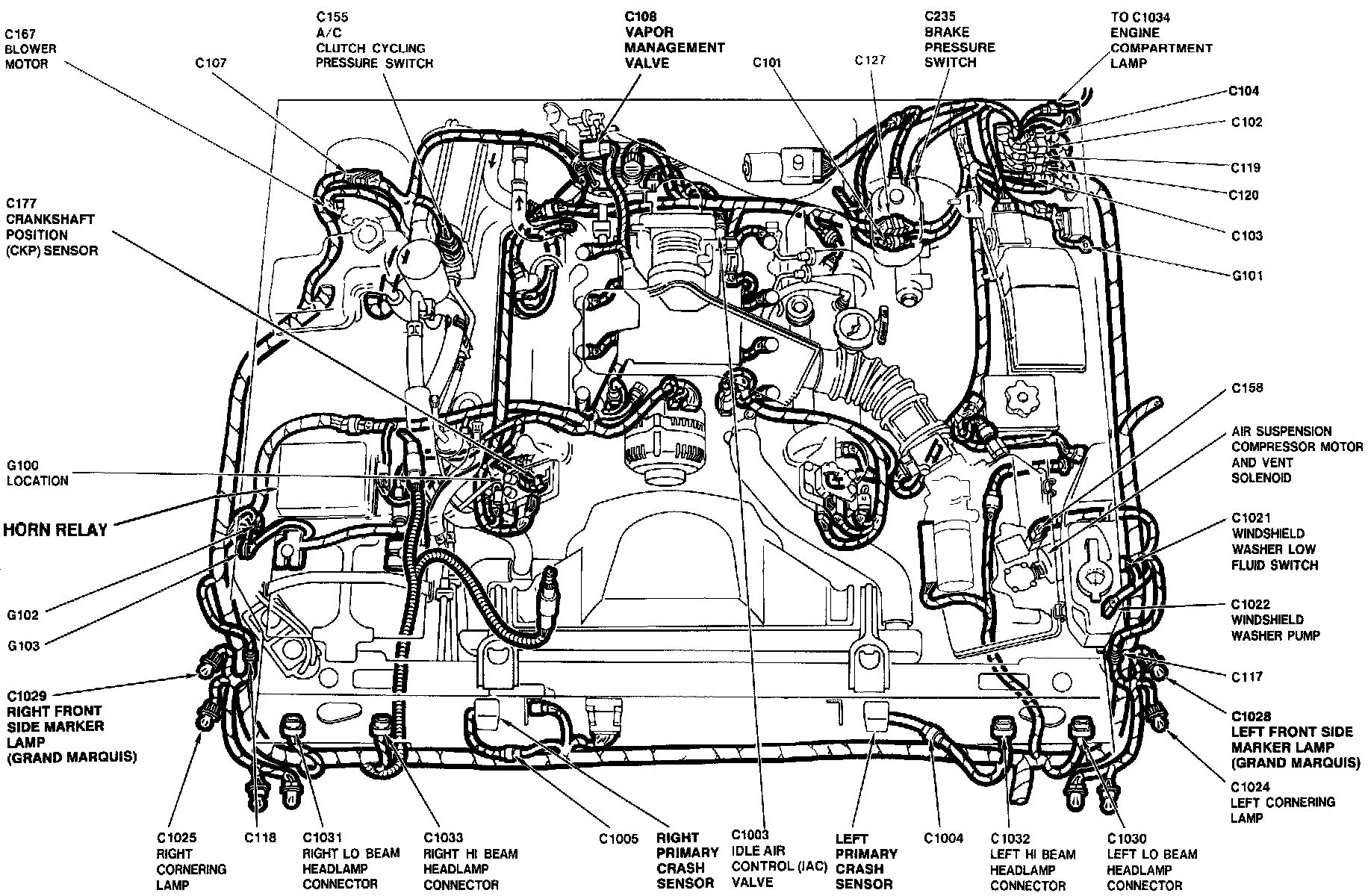

Engine View:

A/C CLUTCH CYCLING PRESSURE SWITCH
AIR SUSPENSION COMPRESSOR MOTOR AND VENT SOLENOID
BLOWER MOTOR
BRAKE PRESSURE SWITCH
COMPRESSOR RELAY
COOLING FAN RELAY
CRANKSHAFT POSITION SENSOR
ENGINE COMPARTMENT LAMP
HORN RELAY
IDLE AIR CONTROL VALVE
LEFT CORNERING LAMP
LEFT HIGH BEAM HEADLAMP CONNECTOR
LEFT LOW BEAM HEADLAMP CONNECTOR
LEFT PRIMARY CRASH SENSOR
POLICE POWER RELAY
REAR DEFOGGER RELAY
RIGHT CORNERING LAMP
RIGHT HIGH BEAM HEADLAMP CONNECTOR
RIGHT LOW BEAM HEADLAMP CONNECTOR
RIGHT PRIMARY CRASH SENSOR
VAPOR MANAGEMENT VALVE
WINDSHIELD WASHER LOW FLUID SWITCH
WINDSHIELD WASHER PUMP
