Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

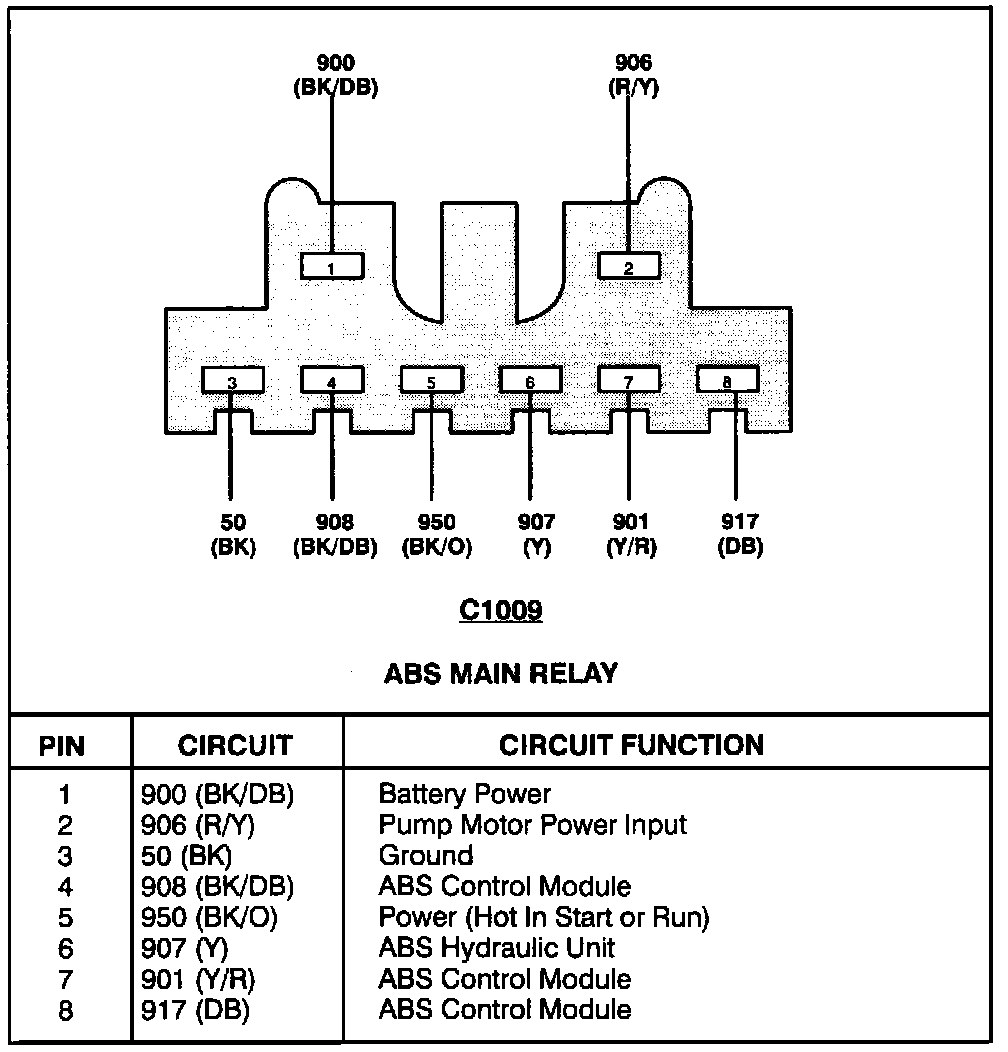

ABS Main Relay
ABS Main Relay
Anti_Lock Brake System Main Relay:
