Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Output
Output

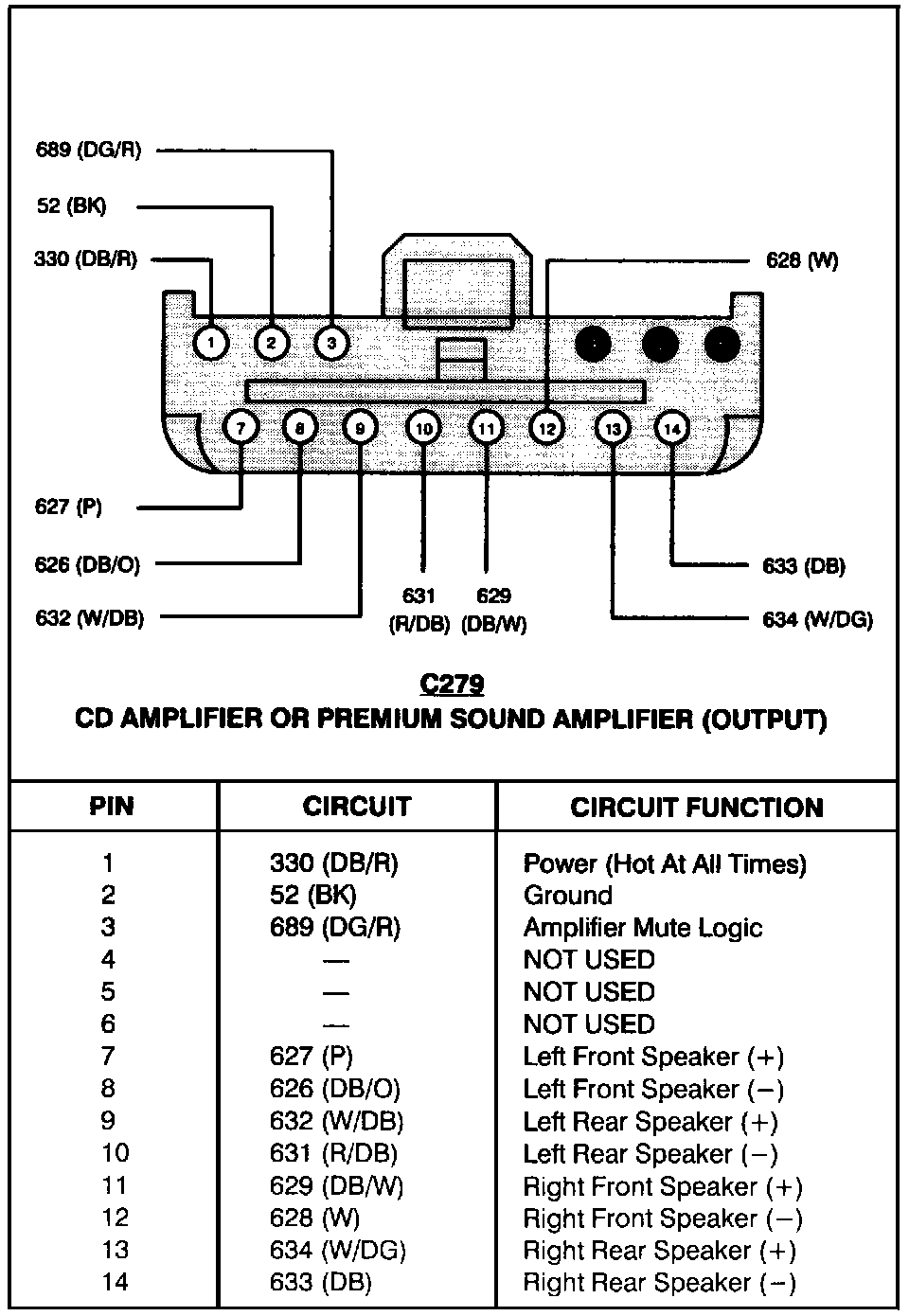

CD Amplifier Or Premium Sound Amplifier (Output):
