Full Body Views

Full Body View (Hatchback):

ANTI-LOCK BRAKE SYSTEM CONTROL MODULE
DRIVER'S SEAT BELT BUCKLE SWITCH
HIGH MOUNT STOP LAMP
INERTIA FUEL SHUT OFF SWITCH
JOINT CONNECTOR
LEFT FRONT DOOR LATCH SWITCH
LEFT FRONT DOOR LOCK SWITCH
LEFT FRONT DOOR SPEAKER
LEFT FRONT WINDOW MOTOR
LEFT LICENSE LAMP
LEFT POWER MIRROR
LIFTGATE LATCH SWITCH
LUGGAGE COMPARTMENT LAMP
MASTER WINDOW CONTROL SWITCH
PARK BRAKE SWITCH
PASSIVE RESTRAINT MODULE
RIGHT FRONT DOOR LATCH SWITCH
RIGHT FRONT DOOR LOCK MOTOR
RIGHT FRONT DOOR SPEAKER
RIGHT FRONT WINDOW MOTOR
RIGHT FRONT WINDOW SWITCH
RIGHT LICENSE LAMP
RIGHT POWER MIRROR

Full Body View (Hatchback):

AUTOMATIC TRANSAXLE SELECTOR ILLUMINATION LAMP
LEFT AND RIGHT PASSIVE BELT SPOOL SWITCHES
LEFT BACKUP LAMP
LEFT FRONT DOOR COURTESY LAMP SWITCH
LEFT REAR ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
LEFT REAR DOOR CURTESY LAMP SWITCH
LEFT REAR DOOR LOCK MOTOR
LEFT REAR LIMIT SWITCH
LEFT REAR PARK/STOP LAMP
LEFT REAR TURN/HAZARD LAMP
LEFT REAR WINDOW SWITCH
LEFT REAR WINDOW MOTOR
PARK SENSE SWITCH
RIGHT BACKUP LAMP
RIGHT FRONT DOOR COURTESY LAMP SWITCH
RIGHT REAR ANTI-LOCK BRAKE SYSTEM WHEEL SPEED SENSOR
RIGHT REAR DOOR COURTESY LAMP SWITCH
RIGHT REAR LIMIT SWITCH
RIGHT REAR PARK/STOP LAMP
RIGHT REAR TURN/HAZARD LAMP
SHIFT LOCK ACTUATOR

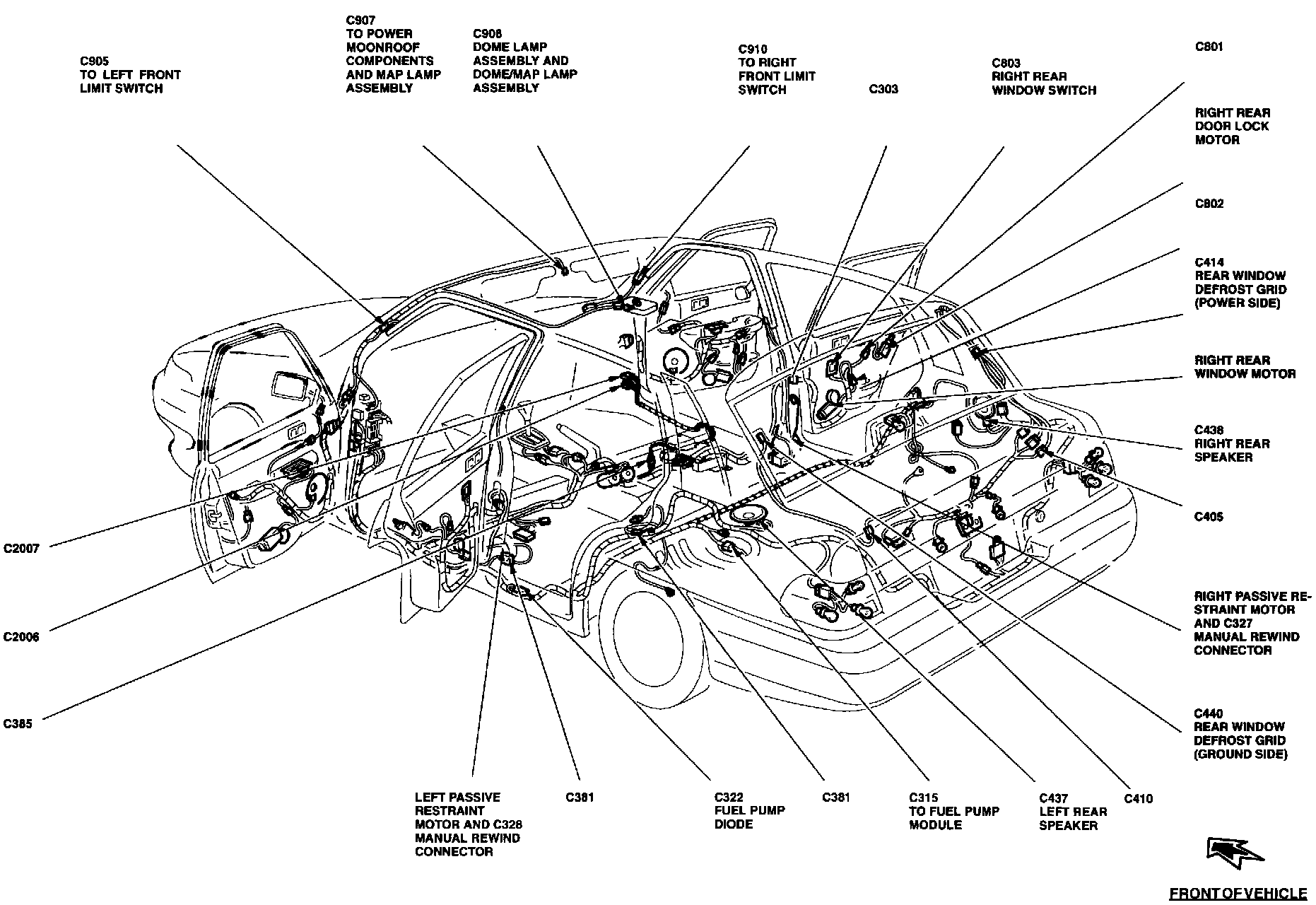

Full Body View (Hatchback):

DOME LAMP ASSEMBLY
DOME/MAP LAMP ASSEMBLY
FUEL PUMP DIODE
FUEL PUMP MODULE
LEFT FRONT LIMIT SWITCH
LEFT PASSIVE RESTRAINT MOTOR
LEFT REAR SPEAKER
MANUAL REWIND CONNECTOR
MAP LAMP ASSEMBLY
POWER MOONROOF COMPONENTS
REAR WINDOW DEFROST GRID
RIGHT FRONT LIMIT SWITCH
RIGHT PASSIVE RESTRAINT MOTOR
RIGHT REAR DOOR LOCK MOTOR
RIGHT REAR SPEAKER
RIGHT REAR WINDOW MOTOR
RIGHT REAR WINDOW SWITCH
