Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Discharge the A/C system system into an approved recovery device.

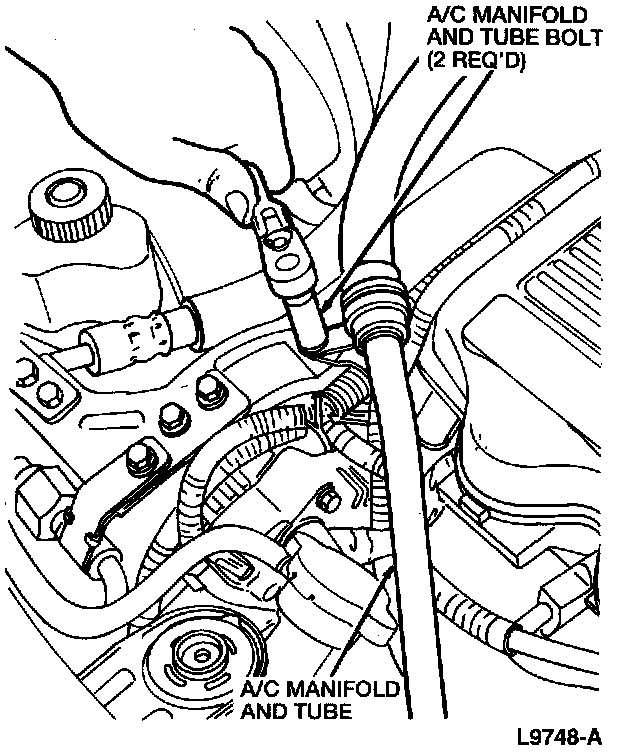

2. Remove the two A/C manifold and tube bolts.

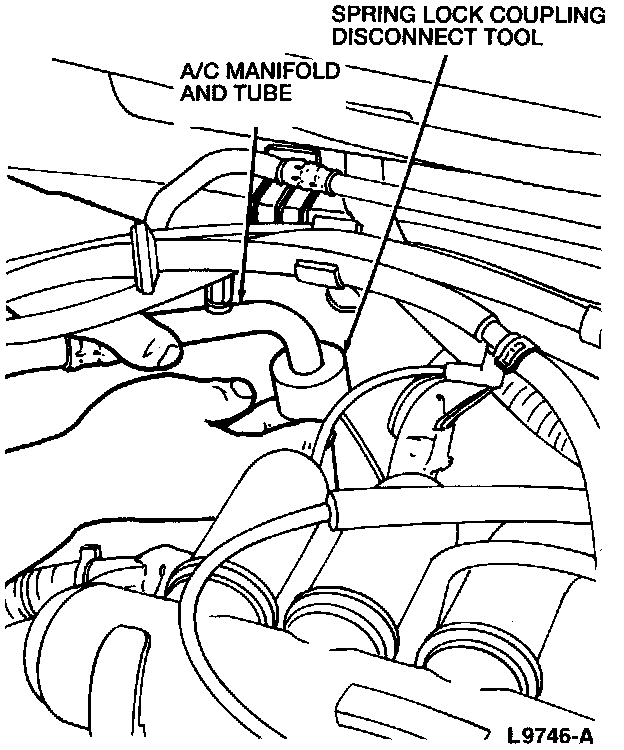

3. Disconnect the two spring lock couplings.
4. Raise and support the vehicle.
5. Remove the nine bolts and the two engine and transmission splash shields.

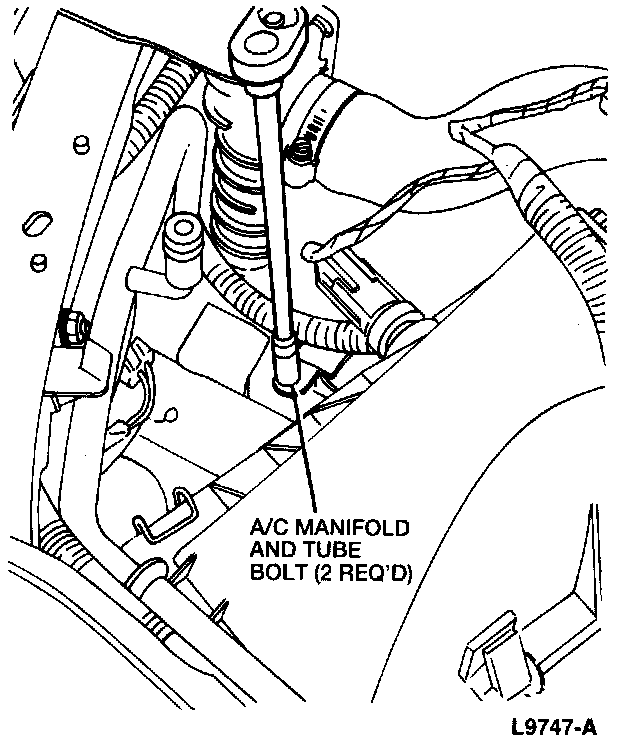

6. Remove the manifold bolt.
7. Lower the A/C manifold and tube out of the engine compartment.

INSTALLATION
To install, reverse the above procedure.

^ Install new 0-rings lubricated with clean refrigerant oil on the manifold.
^ Tighten the manifold bolt to 16-26 N.m (12-19 lb-ft).
