Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

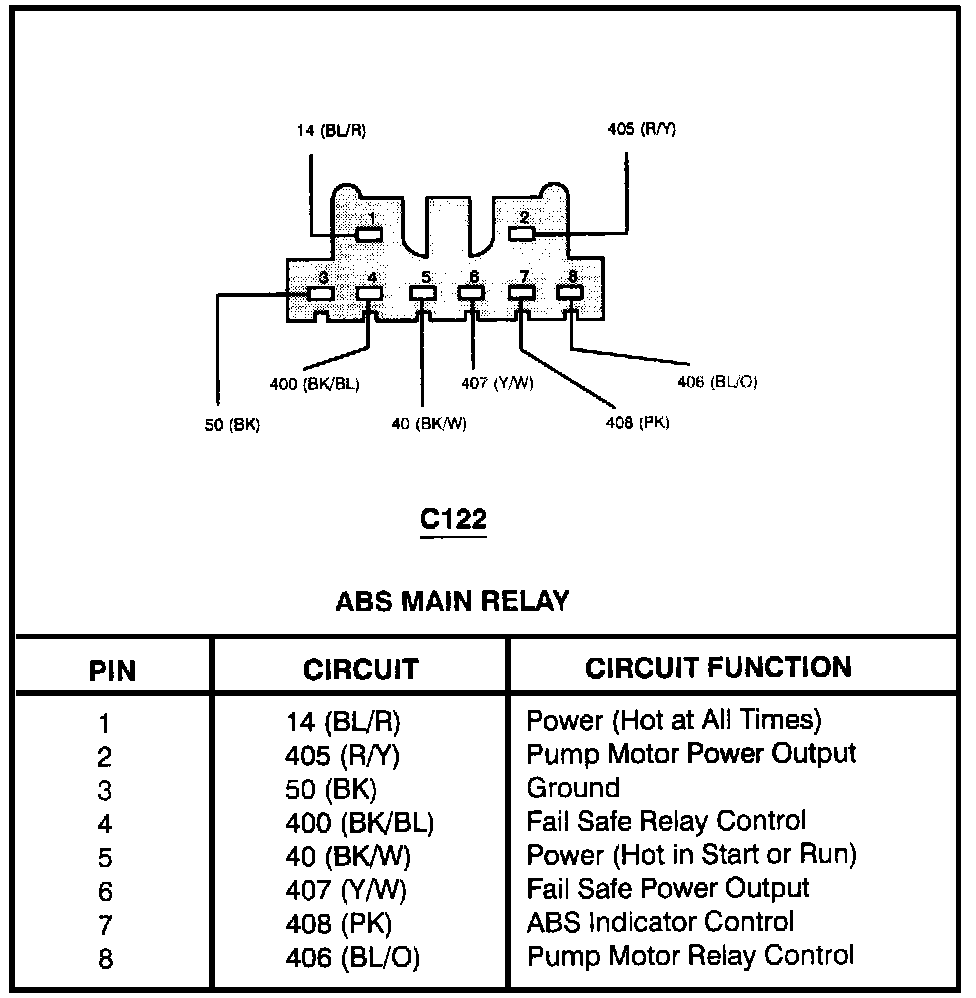

ABS Main Relay
ABS Main Relay
Anti-lock Brake System Main Relay:
