Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1995
>>
Probe V6-153 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Amplifier, Sound System
>>
Amplifier
>>
With Subwoofer
With Subwoofer

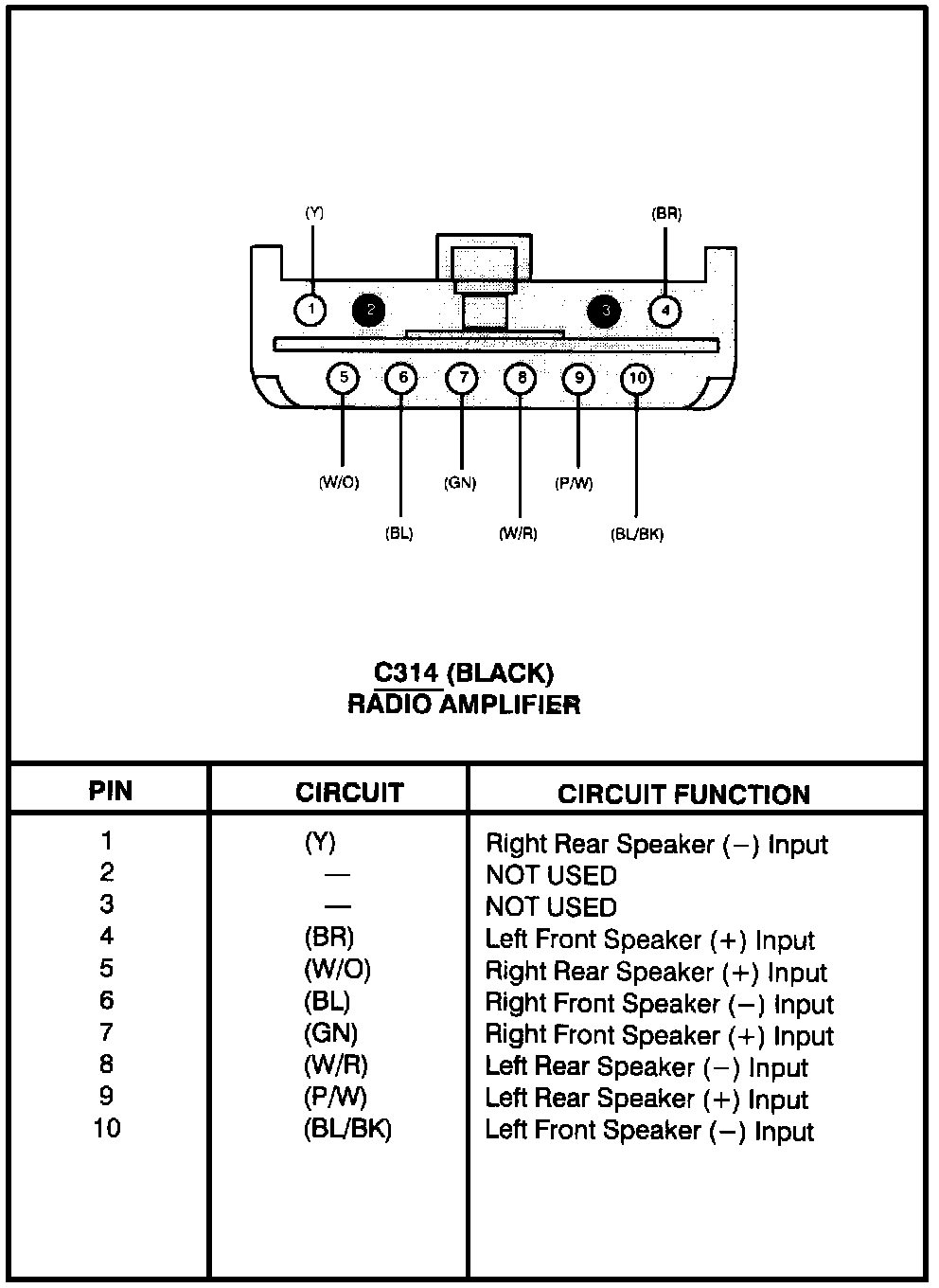

Radio Amplifier (C314):

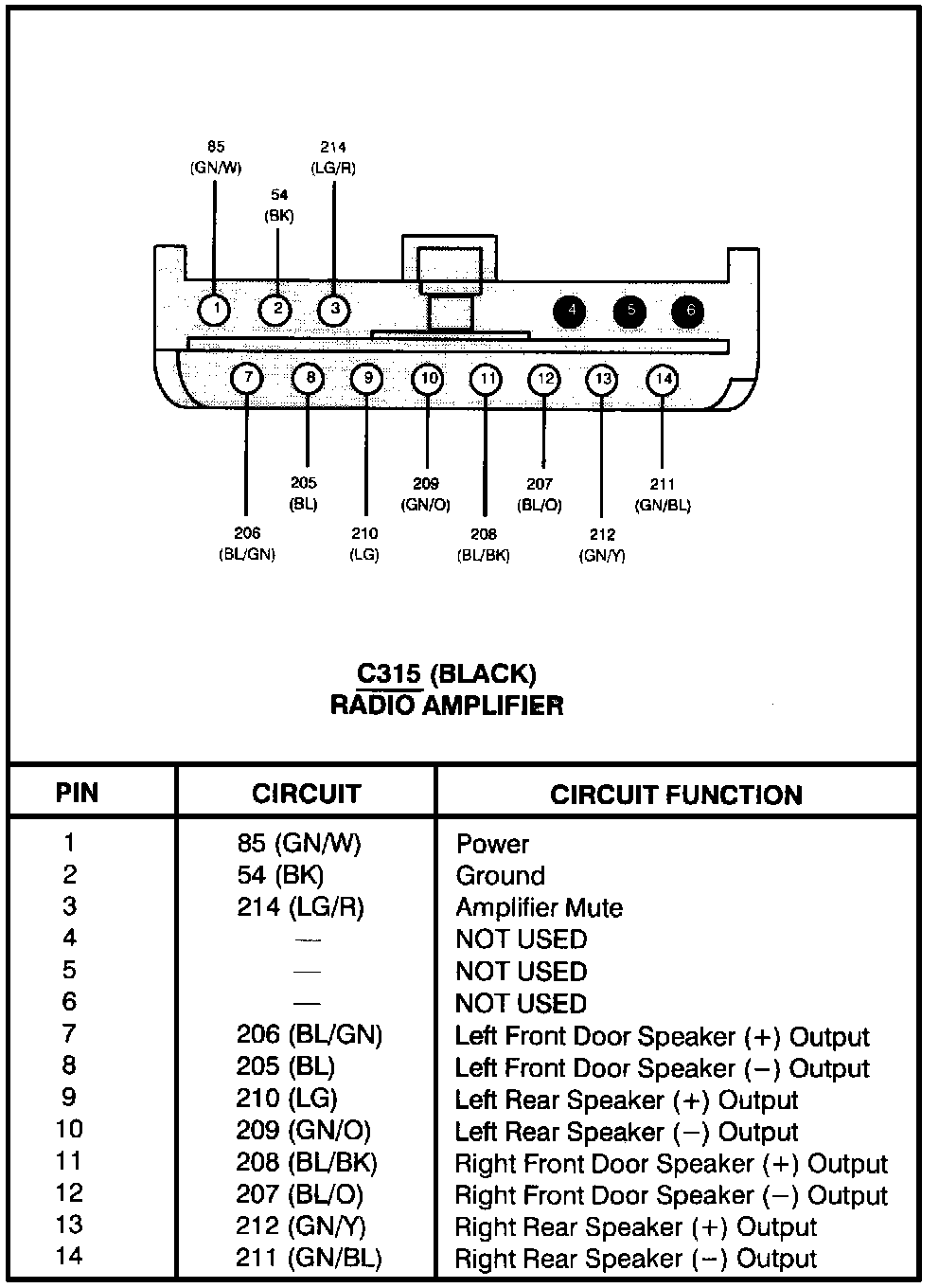

Radio Amplifier (C315):

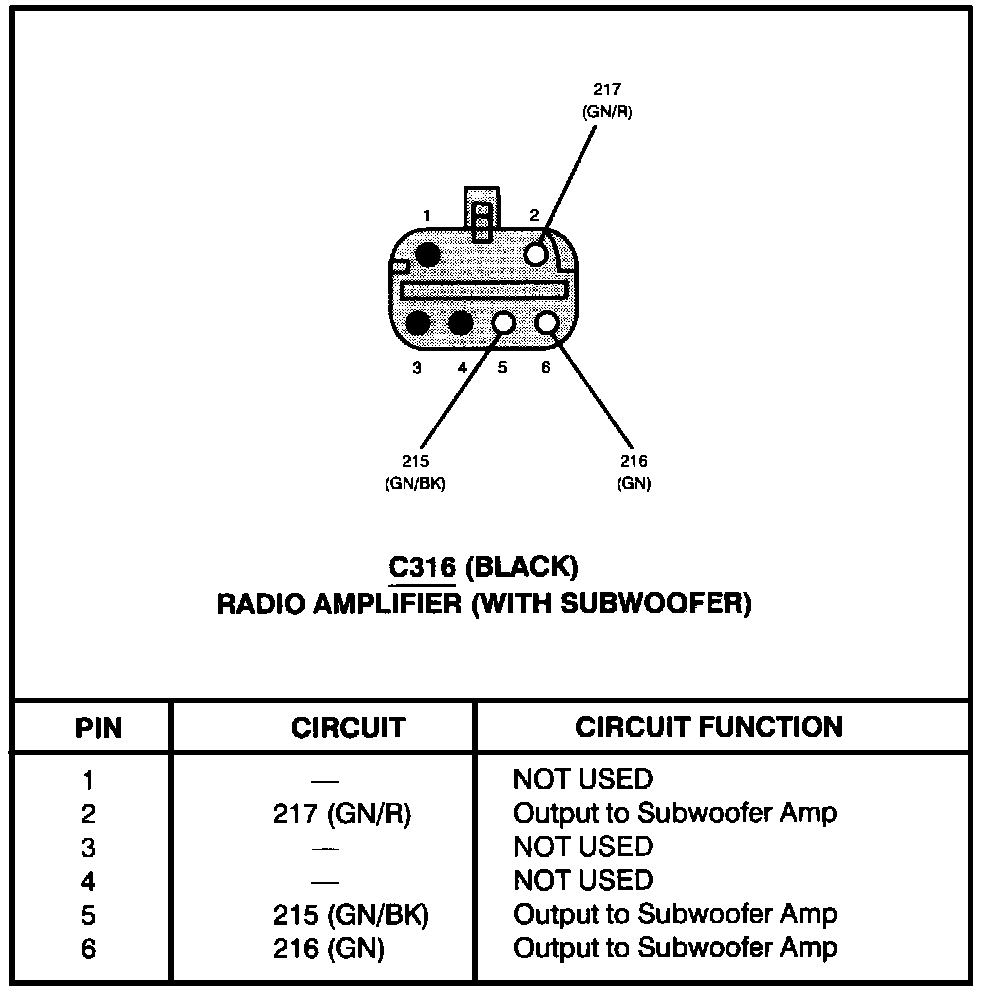

Radio Amplifier (With Subwoofer):
